30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006000401) (1986) Flotation Kit Model No. 30759 (optional) (for Cutting Units Model No. 30544 30753 ) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

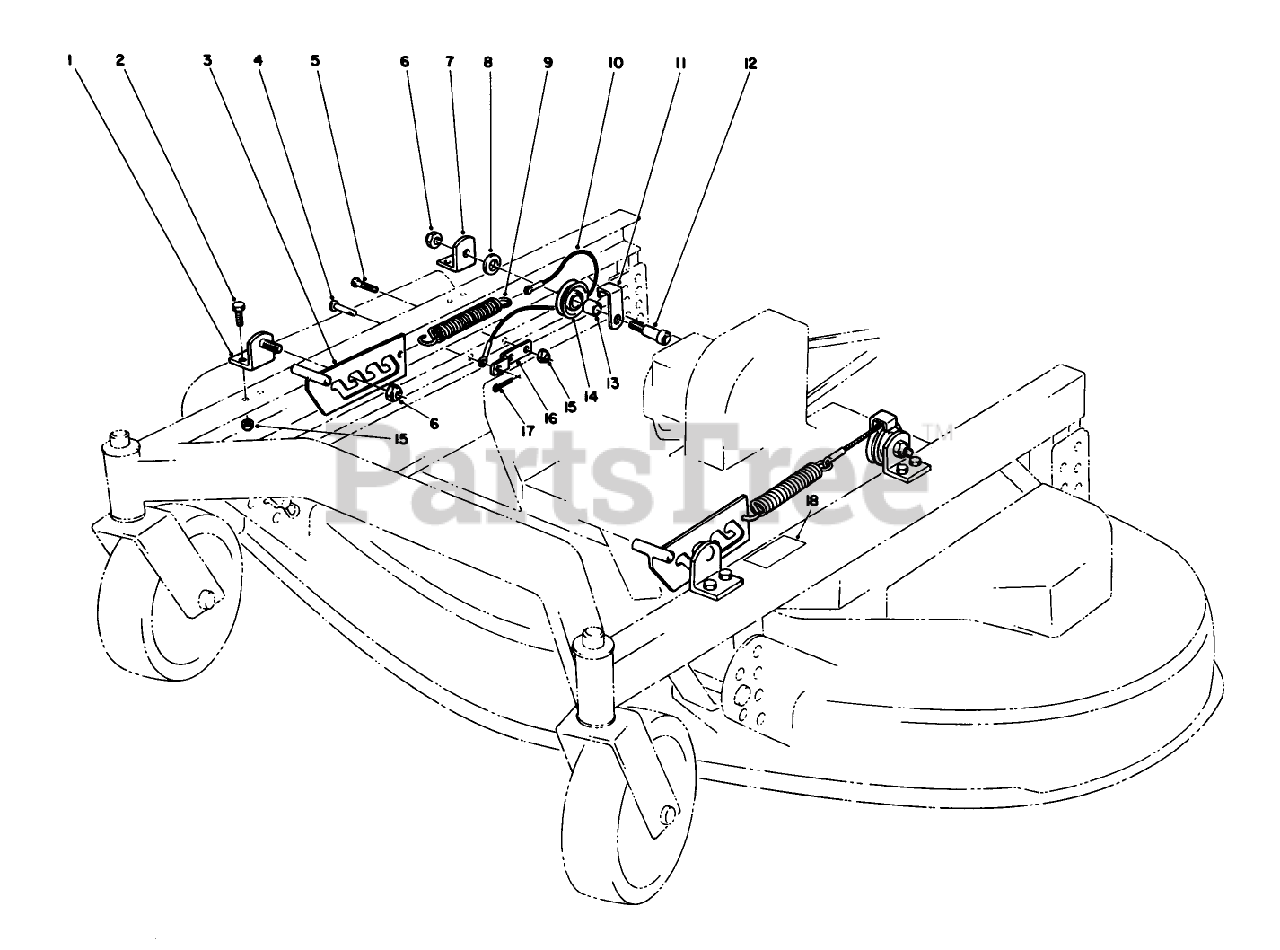

Flotation Kit Model No. 30759 (optional) (for Cutting Units Model No. 30544 30753 ) Parts Diagram

  • Title

1

Toro 56-3340

See Supercession: 56-3340-01
(Superseded to 56-3340-01)

$

$

Not available

2

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 56-3330

See Supercession: 56-3330-01
(Superseded to 56-3330-01)

$87.99

$

Usually ships in 3-6 days

0

4

Toro 283-26

PIN

$4.99

$

Usually ships in 3-6 days

0

5

Toro 3258-11

1/4-20 X 5/8 RD HD SC

$

$

Not available

6

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

7

Toro 56-3360

See Supercession: 56-3360-01
(Superseded to 56-3360-01)

$

$

Not available

8

Toro 29-3910

DISCONTINUED

$

$

Not available

9

Toro 56-2770

EXTENSION SPRING

$32.99

$

Usually ships in 3-6 days

0

10

Toro 56-3350

CABLE

$

$

Not available

11

Toro 56-2780

DISCONTINUED

$

$

Not available

12

Toro 3-5561

DISCONTINUED

$

$

Not available

13

Toro 256-159

BUSHING

$

$

Not available

14

Toro 3-8775

DISCONTINUED

$

$

Not available

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

16

Toro 56-3380

See Supercession: 56-3380-01
(Superseded to 56-3380-01)

$

$

Not available

17

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

18

Toro 55-4300

DECAL-WARNING

$14.99

$

Usually ships in 3-6 days

0
