30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006000401) (1986) Camshaft Valves-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

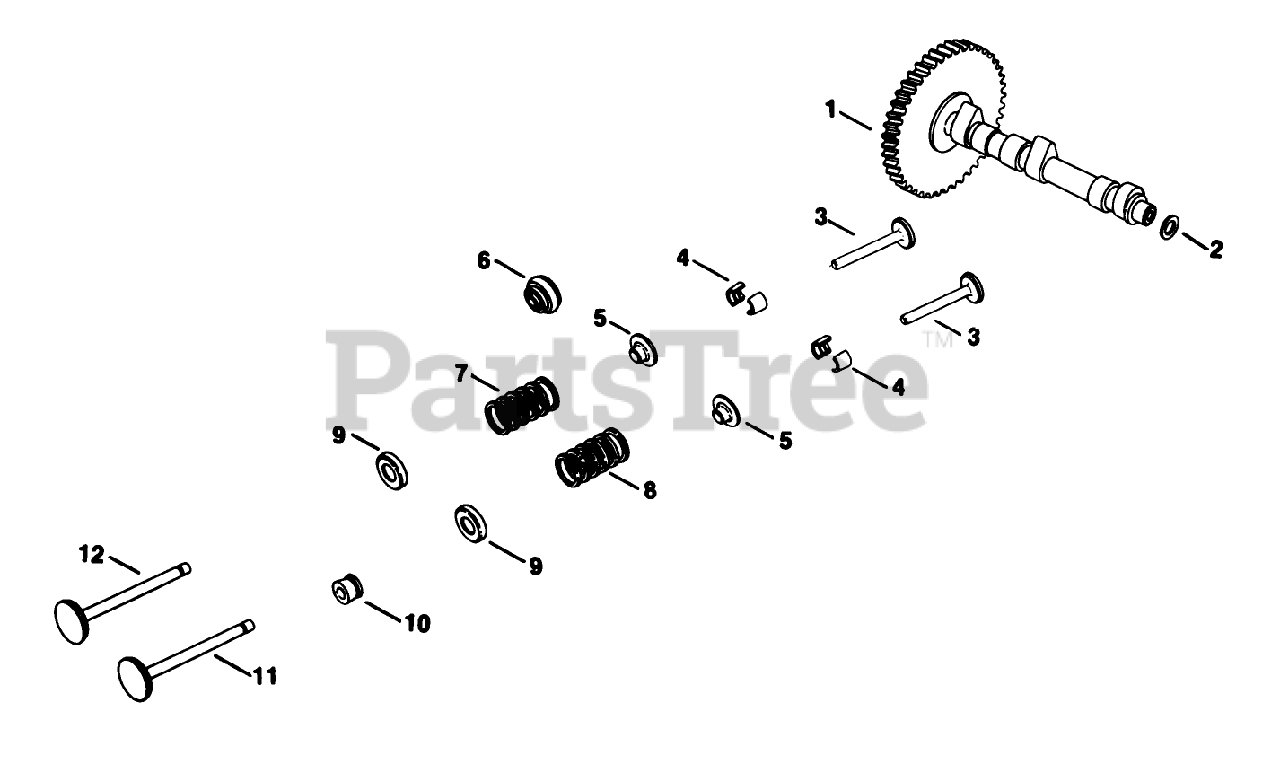

Camshaft Valves-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

  • Title
1

Toro 5201206

Camshaft

$

$

Currently unavailable

2

Toro 5242203

Spacer-Camshaft

$

$

Currently unavailable

3

Toro 5201902

Tappet

$

$

Currently unavailable

4

Toro 41_755_10

Kit-Retainer

$

$

Currently unavailable

5

Toro 230011

Retainer-Spring

$

$

Currently unavailable

6

Toro 230020

Rotator
(Superseded to 146224)

$

$

Not available

7

Toro 230168

Spring Exhaust Valve

$

$

Not available

8

Toro 230010

Spring, Valve

$

$

Currently unavailable

9

Toro 52_018_01

Retainer-Spring

$

$

Currently unavailable

10

Toro 45_032_01

Seal-Valve Stem

$

$

Currently unavailable

11

Toro 5201701

Valve-Intake

$

$

Currently unavailable

12

Toro 5201602

Valve-Exhaust

$

$

Currently unavailable
