30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 006000001 - 006000401) (1986) Breather Vent-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

Groundsmaster Rear-Engine Riding Mower

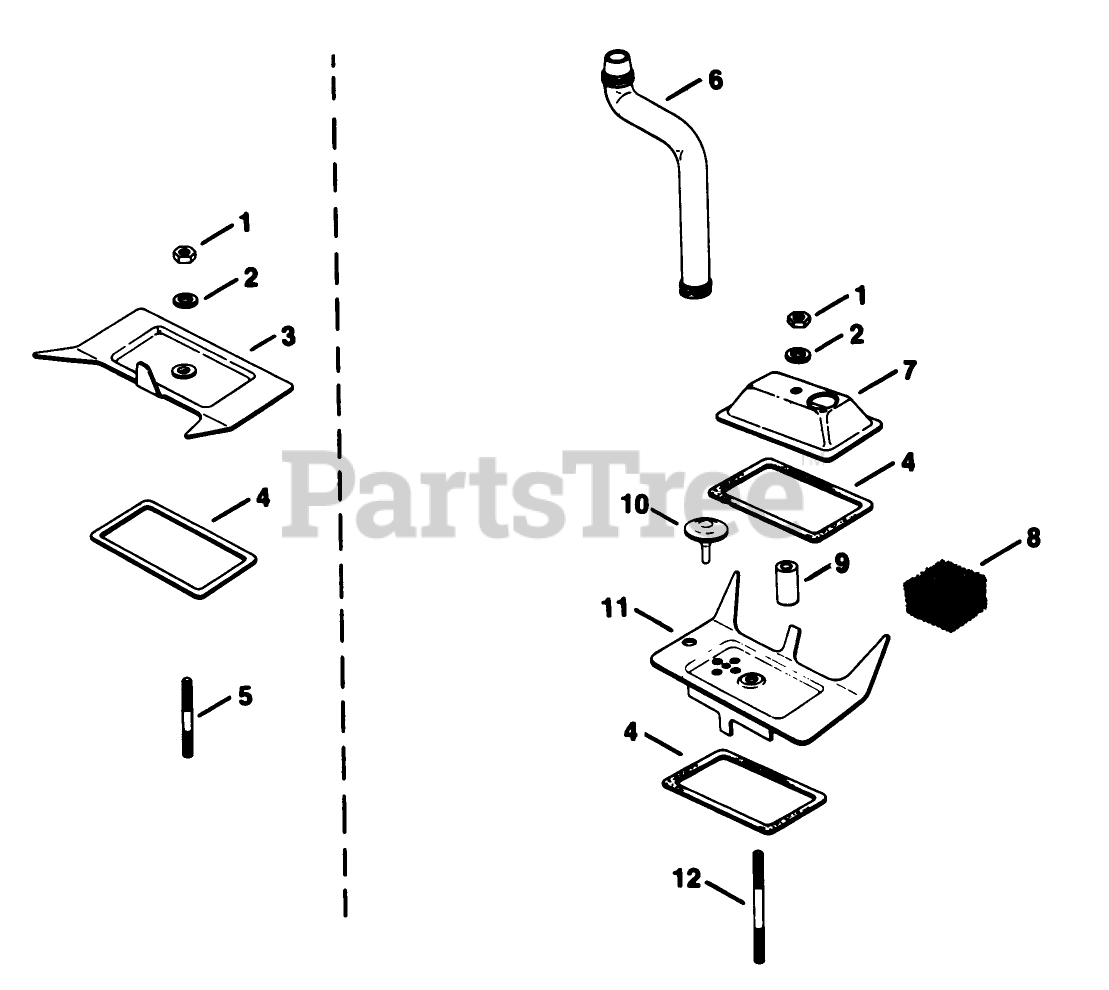

Breather Vent-Engine Kohler Model No. Kt17qs Type No. 24324 (continued) Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Toro X-25-12

Washer

$

$

Currently unavailable

3

Toro 52_096_18

Cover Cylinder Valve

$

$

Currently unavailable

4

Toro 52_055_01

Gasket-Cover

$

$

Currently unavailable

5

Toro X-352-39

Stud-#2 Cyl Valve Cover

$

$

Currently unavailable

6

Toro 5232605

Hose-Breather

$

$

Currently unavailable

7

Toro 52_096_08

Cover-#1 Upper Cyl. Valve

$

$

Currently unavailable

8

Toro 231419

Filter

$

$

Currently unavailable

9

Toro 52_032_04

Seal-Breather

$

$

Currently unavailable

10

Toro 52_462_01

Valve-Breather

$

$

Currently unavailable

11

Toro 52_096_22

Cover-#1 Lower Cyl. Valve

$

$

Currently unavailable

12

$

$

Currently unavailable
