30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) PISTON & ROD-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

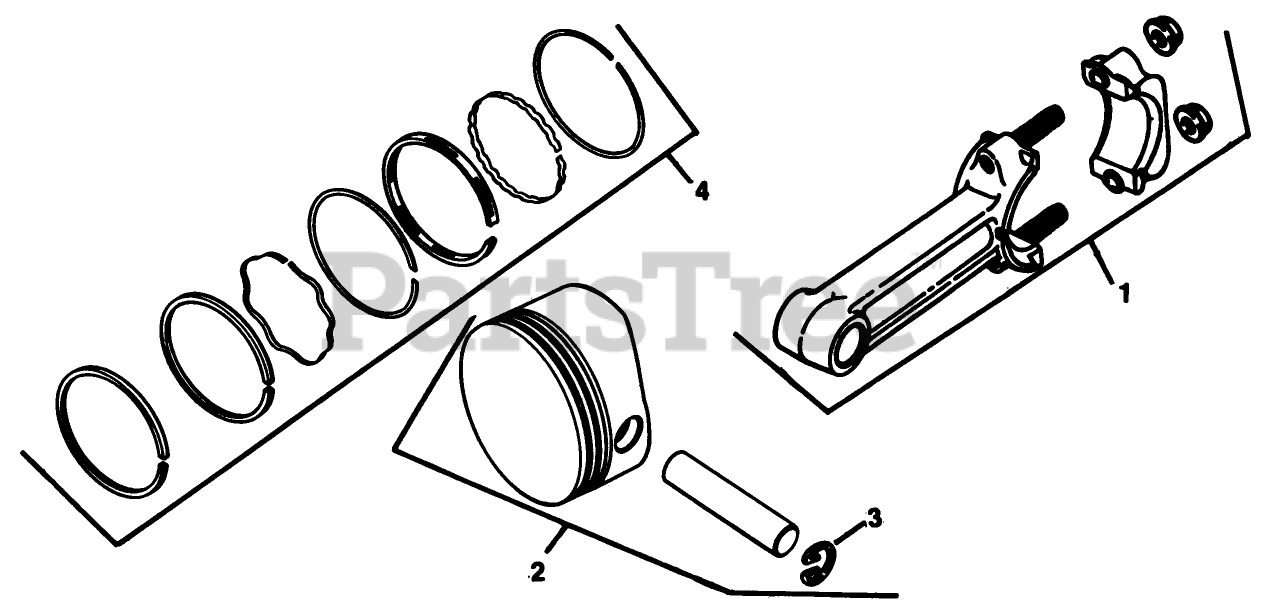

PISTON & ROD-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title
1

Toro 52_067_61

Connecting Rod Assy. (Std.)

$

$

Currently unavailable

1

Toro 52_067_62

Connecting Rod Assembly (.010 U.S.)

$

$

Currently unavailable

2

Toro 52_074_67

Piston Assembly (Std)

$

$

Currently unavailable

Toro 52_074_68

Piston Assembly (.003)

$

$

Currently unavailable

Toro 52_074_69

Piston Assembly (.010)

$

$

Currently unavailable

Toro 52_074_70

Piston Assembly (.020)

$

$

Currently unavailable

Toro 52_074_71

Piston Assembly (.030)

$

$

Currently unavailable

3

Toro 23004

Retainer-Piston Pin

$

$

Currently unavailable

4

Toro 52_108_01

Ring Set (Std & .003)

$

$

Currently unavailable

Toro 52_108_02

Ring Set (.010)

$

$

Currently unavailable

Toro 52_108_03

Ring Set (.020)

$

$

Currently unavailable

Toro 52_108_04

Ring Set (.030)

$

$

Currently unavailable
