30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) CUTTING UNIT MODEL NO. 30544 RIGHT ANGLE DRIVE HEAD NO. 54-2320 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

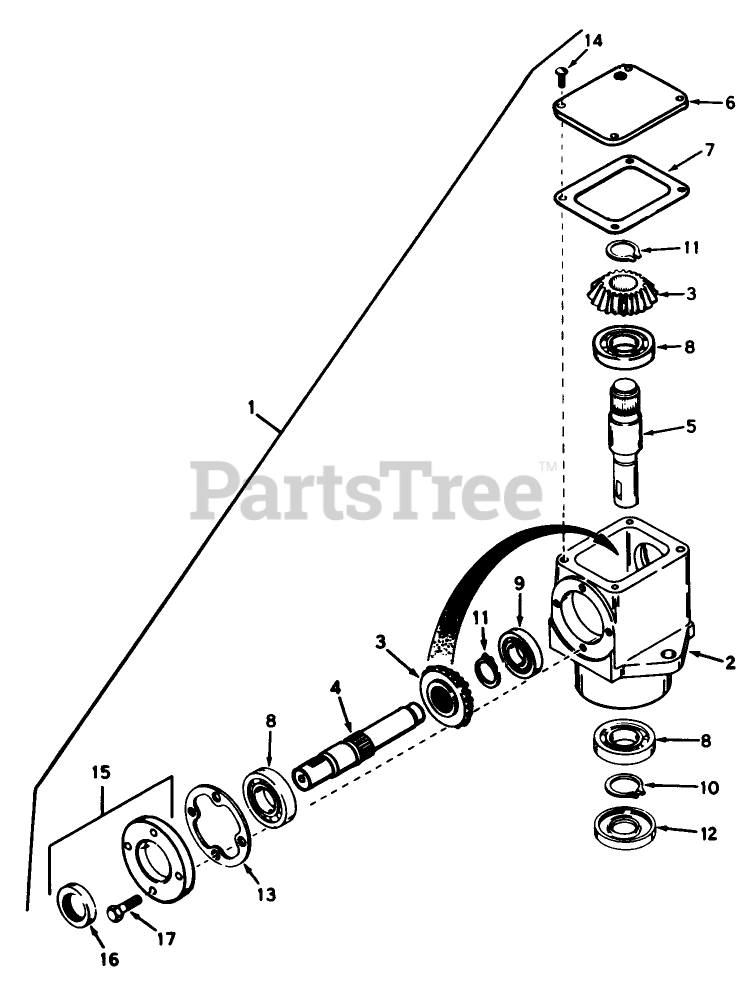

CUTTING UNIT MODEL NO. 30544 RIGHT ANGLE DRIVE HEAD NO. 54-2320 Parts Diagram

  • Title
1

Toro 794375

Head Assembly-R.H. (Incl. Ref. #2-15&18)

$

$

Currently unavailable

2

Toro 770026A

Housing

$

$

Currently unavailable

3

Toro 778101

Gear-Miter

$

$

Currently unavailable

4

Toro 776196

Shaft-Input

$

$

Currently unavailable

5

Toro 776153

Shaft-Output

$

$

Currently unavailable

6

Toro 772093

Cover

$

$

Currently unavailable

7

Toro 788028

Gasket

$

$

Currently unavailable

8

Toro 780034

Bearing

$

$

Currently unavailable

9

Toro 780024

Bearing

$

$

Currently unavailable

10

Toro 788019

Ring-Snap

$

$

Currently unavailable

11

Toro 788018

Ring-Snap

$

$

Currently unavailable

12

$

$

Currently unavailable

13

Toro 788030

Gasket

$

$

Currently unavailable

14

Toro 792025

Screw

$

$

Currently unavailable

15

Toro 786029

Cap & Seal Assembly-Retainer (Incl. Ref. #16 & 17)

$

$

Currently unavailable

16

Toro 788031

Oil Seal

$

$

Currently unavailable

17

Toro 792026

Ring Set (STD)

$

$

Currently unavailable
