30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) CUTTING UNIT MODEL NO. 30544 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

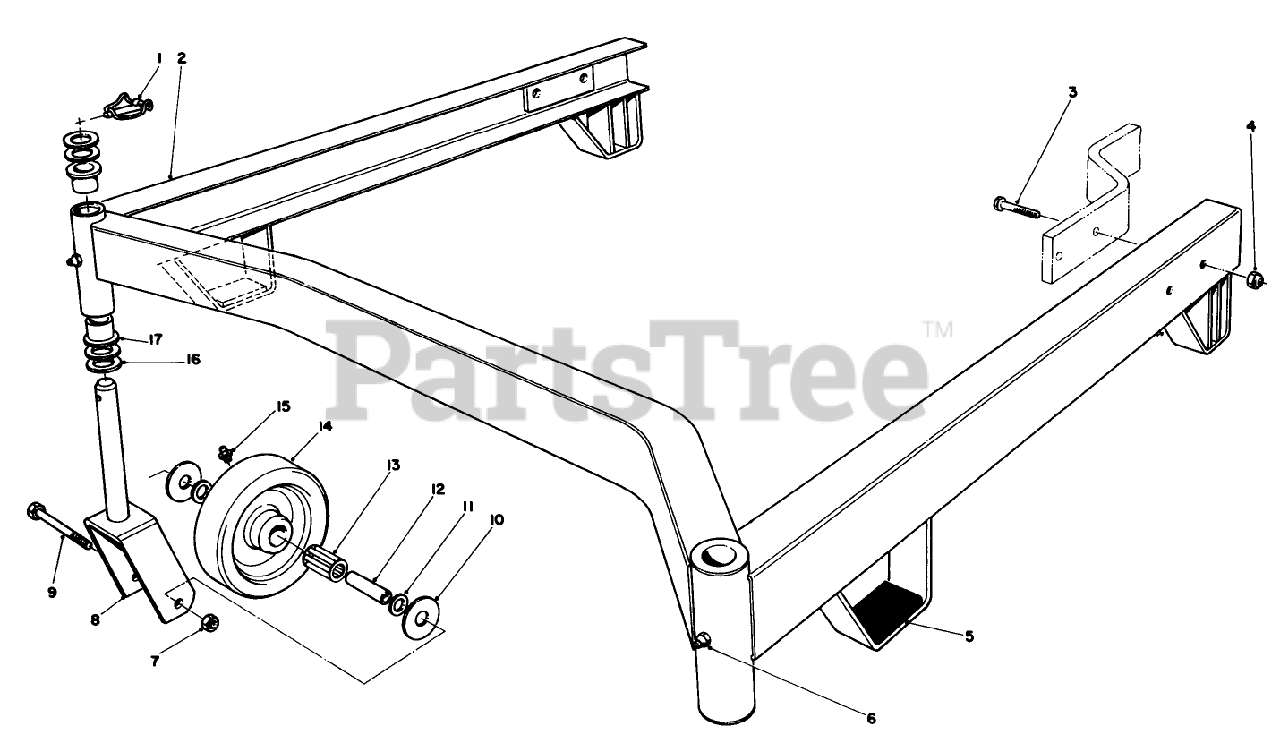

CUTTING UNIT MODEL NO. 30544 Parts Diagram

  • Title

1

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

2

Toro 54-0800

44" Suspension Assembly (Incl. Ref. #6 & 17)
(Superseded to 94-5830)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

5

Toro 54-2700

Pad-Rubber
(Superseded to 74-0340)

$4.99

$

Usually ships in 3-6 days

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 32152-3

1/2-13 CONELOCK NUT

$

$

Not available

8

Toro 54-2680

FRT CASTR FORK WA RO

$

$

Not available

9

Toro 325-17

SCREW-HH

$6.49

$

In Stock, Qty 20+

0

10

Toro 46-8970

WASHER

$6.99

$

Usually ships in 3-6 days

0

11

Toro 46-9030

BEARING RETAINER

$

$

Not available

12

Toro 54-9310

SPANNER BUSHING

$

$

Not available

13

Toro 54-9330

ROLLER BRG

$

$

Not available

14

Toro 54-9320

WHEEL

$

$

Not available

15

Toro 302-55

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

16

Toro 3-6781

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

17

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 14

0

Toro 54-2690

Castor Wheel Assembly (Incl.Ref. #11-15)

Note: Not illustrated

$

$

Not available
