30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) BAFFLES & SHROUD-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

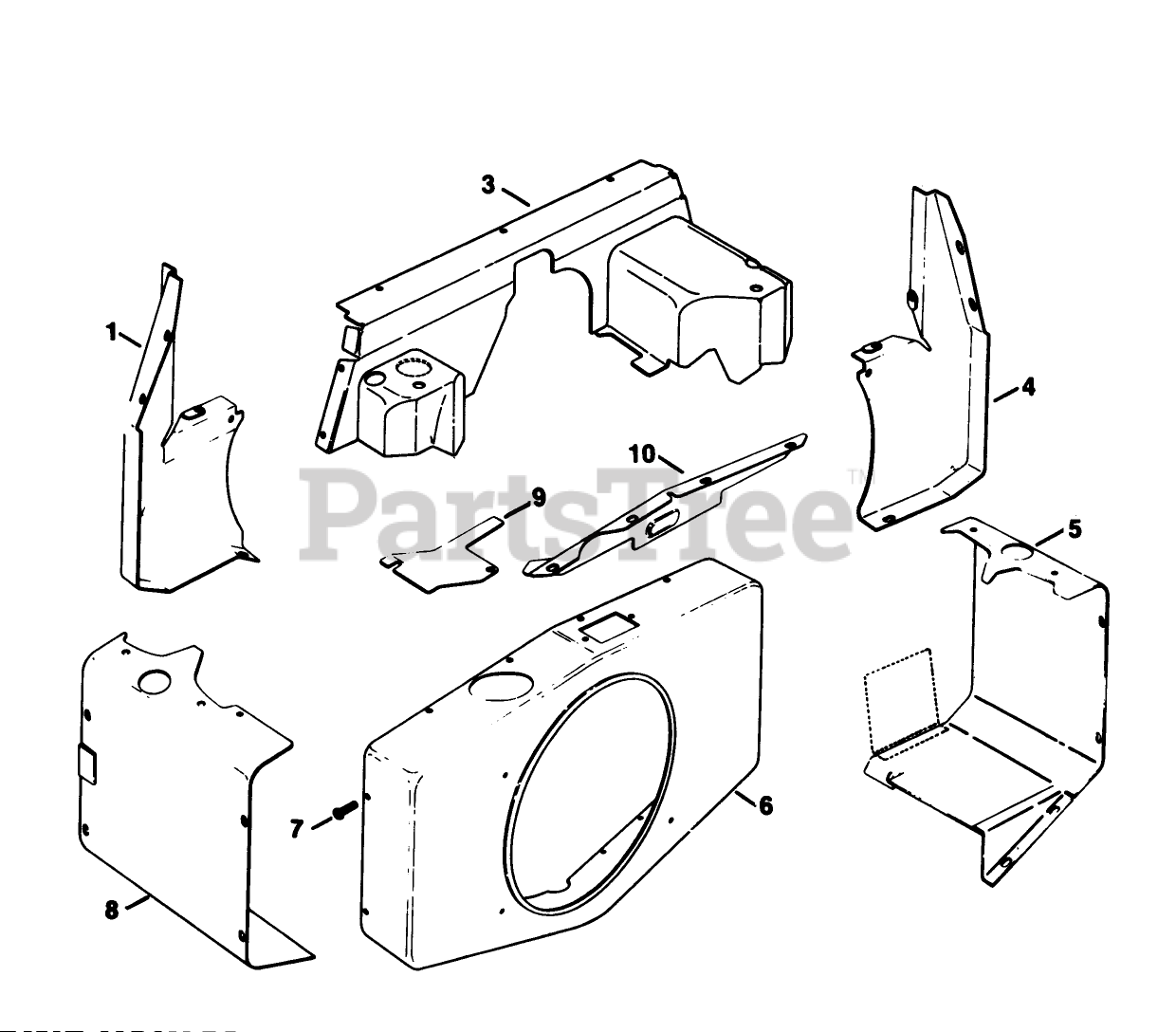

BAFFLES & SHROUD-ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title
1

Toro 52_281_09

Duct-#2 Side Air

$

$

Currently unavailable

3

Toro 52_282_01

Cover-Air Duct

$

$

Currently unavailable

4

Toro 52_281_08

#1 Side-Air Duct

$

$

Currently unavailable

5

Toro 52_124_24

Baffle- #1 Cylinder Head

$

$

Currently unavailable

6

Toro 52_027_09

Housing Blower

$

$

Currently unavailable

7

Kohler X-67-83

Screw
(Superseded to X-67-83-S)

$2.49

$

In Stock, only 1 left!

0

8

Toro 52_124_30

Baffle-#2 Cylinder Head w/Rear Cylinder Baffle

$

$

Currently unavailable

9

Toro 52_063_01

Baffle-Cylinder Head

$

$

Currently unavailable

10

Toro 52_217_01

Support-Upper Housing

$

$

Currently unavailable
