30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) DLPSTICK-GROUP 10 ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

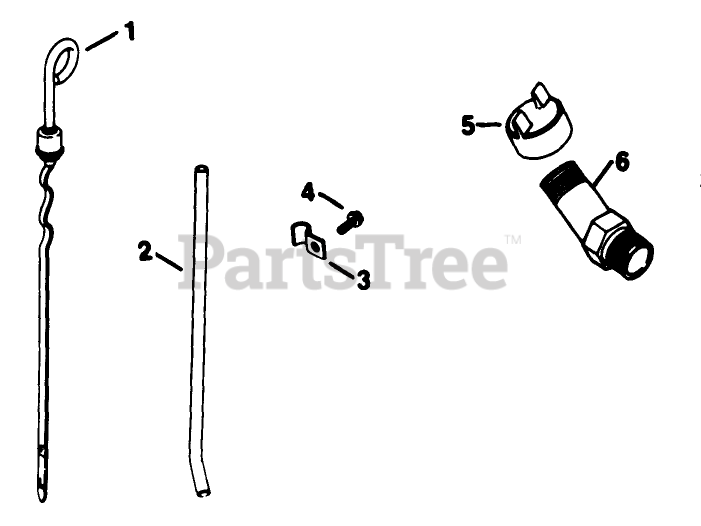

DLPSTICK-GROUP 10 ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title
1

Toro 52_038_04

Distick-Blade

$

$

Currently unavailable

2

Toro 52_123_09

Tube-Oil Level

$

$

Currently unavailable

3

Toro 52_154_01

Clip-Tube

$

$

Currently unavailable

4

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

5

Toro 52_173_01

Cap-Pipe

$

$

Currently unavailable

6

Toro 46_136_02

Pipe-Oil Fill

$

$

Currently unavailable
