30754 (117) - Toro Groundsmaster Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1990) AIR INTAKE-GROUP 1 ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

Groundsmaster Rear-Engine Riding Mower

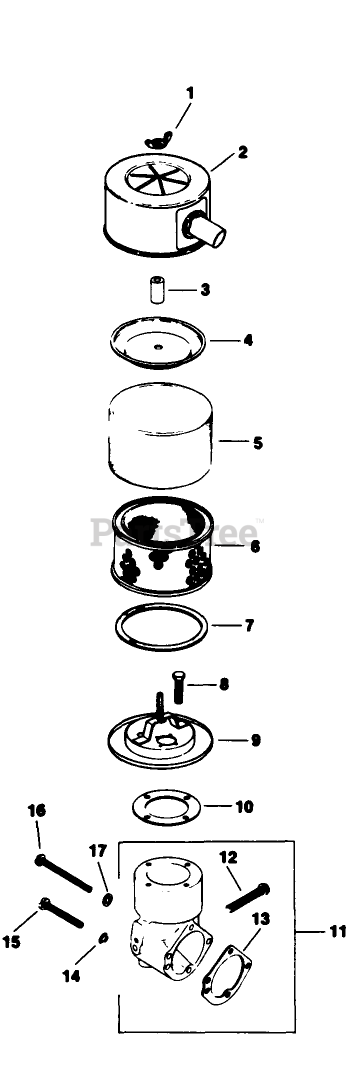

AIR INTAKE-GROUP 1 ENGINE KOHLER MODEL NO. KT17QS TYPE NO. 24324 Parts Diagram

  • Title

1

Kohler X-276-7

Nut-Wing
(Superseded to X-276-7-S)

$

$

Not available

2

5209626

Cover-Air Cleaner

$

$

Not available

3

Kohler 231032

Seal
(Superseded to 231032-S)

$8.49

$

Usually ships in 2-5 days

0

4

5208204

Cover-Inner

$

$

Not available

5

4508301

Precleaner

$

$

Not available

6

4508302

Element

$

$

Not available

7

Kohler 237423

Seal
(Superseded to 237423-S)

$

$

Not available

8

Kohler X-67-98

Screw-H.C.
(Superseded to X-67-98-S)

$3.49

$

Usually ships in 2-5 days

0

9

Toro 5220106

Base-Air Cleaner

$

$

Currently unavailable

10

Kohler 277093

Gasket-Air Cleaner
(Superseded to 277093-S)

$8.49

$

In Stock, Qty 5

0

11

Toro 5275401

Kit-Air Intake Elbow

$

$

Currently unavailable

12

5208611

Screw-Self Tap

$

$

Not available

13

2504106

Gasket

$

$

Not available

14

Kohler X-22-9

Washer
(Superseded to X-22-9-S)

$3.99

$

In Stock, only 1 left!

0

15

Kohler X-50-57

Screw-R.H.M.
(Superseded to X-50-57-S)

$

$

Not available

16

Kohler X-50-37

Screw-R.H.M.
(Superseded to X-50-37-S)

$3.99

$

In Stock, only 4 left!

0

17

Kohler X-25-79

Washer
(Superseded to X-25-79-S)

$3.99

$

In Stock, only 2 left!

0

2511307

Decal

$

$

Not available
