30751 - Toro 6 Bushel Bag Kit for 44" Mower (SN: 230000001 - 230999999) (2003) DECK COVER AND PULLEY ASSEMBLY Parts Diagram

6 Bushel Bag Kit for 44" Mower

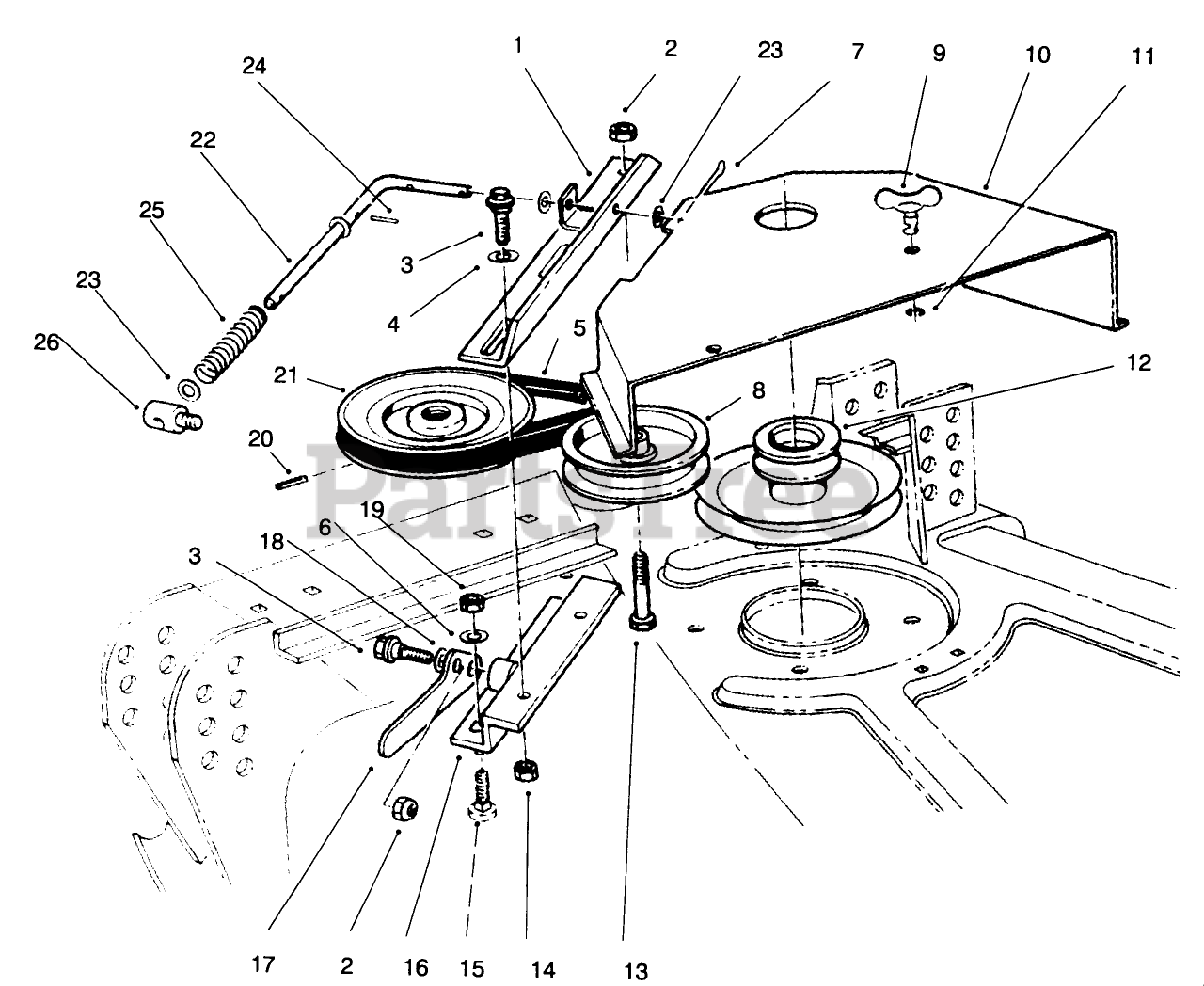

DECK COVER AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 62-6800

Slide ldler
(Superseded to 62-6800-01)

$

$

Not available

2

Toro 3296-44

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

3

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0

4

Toro 36-4791

WASHER-THRUST

$2.49

$

In Stock, Qty 20+

0

5

Toro 53-4650

V-BELT

$39.99

$

Usually ships in 3-6 days

0

6

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

7

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

8

Toro 56-4920

PULLEY-IDLER

$88.99

$

Usually ships in 3-6 days

0

9

Toro 249-36

STUD-HEAD, WING

$40.99

$

Usually ships in 3-6 days

0

10

Toro 56-5280

Cover-Deck
(Superseded to 56-5280-01)

$

$

Not available

11

Toro 249-35

RING-SNAP

$

$

Not available

12

Toro 56-4840

DECK PULLEY WA

$367.99

$

Usually ships in 3-6 days

0

Toro 71-3120

PULLEY

Note: Not illustrated

$236.99

$

Usually ships in 3-6 days

0

13

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

16

Toro 62-6550

Bracket-Idler
(Superseded to 62-6550-01)

$

$

Not available

17

Toro 62-6850

Lever-Idler
(Superseded to 62-6850-01)

$

$

Not available

18

Toro 3290-211

WASHER-SPRING

$6.99

$

Usually ships in 3-6 days

0

19

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 9

0

20

Toro 32121-77

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

21

Toro 56-4810

Pulley-Gear Box
(Superseded to 56-4810-03)

$270.99

$

Usually ships in 3-6 days

0

22

Toro 62-4450

Rod-Idler

$

$

Not available

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 32121-73

PIN-ROLL

$0.99

$

Usually ships in 3-6 days

0

25

Toro 62-5930

COMPRESSION SPRING

$

$

Not available

26

Toro 62-4440

BAGGER TRUNNION

$

$

Not available

Toro 71-3130

NUT, PULLEY

Note: Not illustrated

$

$

Not available
