30748 - Toro 48" Snow Thrower for Groundsmaster 72 (SN: 000500001 - 000599999) (1975) LIFT ARM & POWER TAKE OFF ASSEMBLY Parts Diagram

48" Snow Thrower for Groundsmaster 72

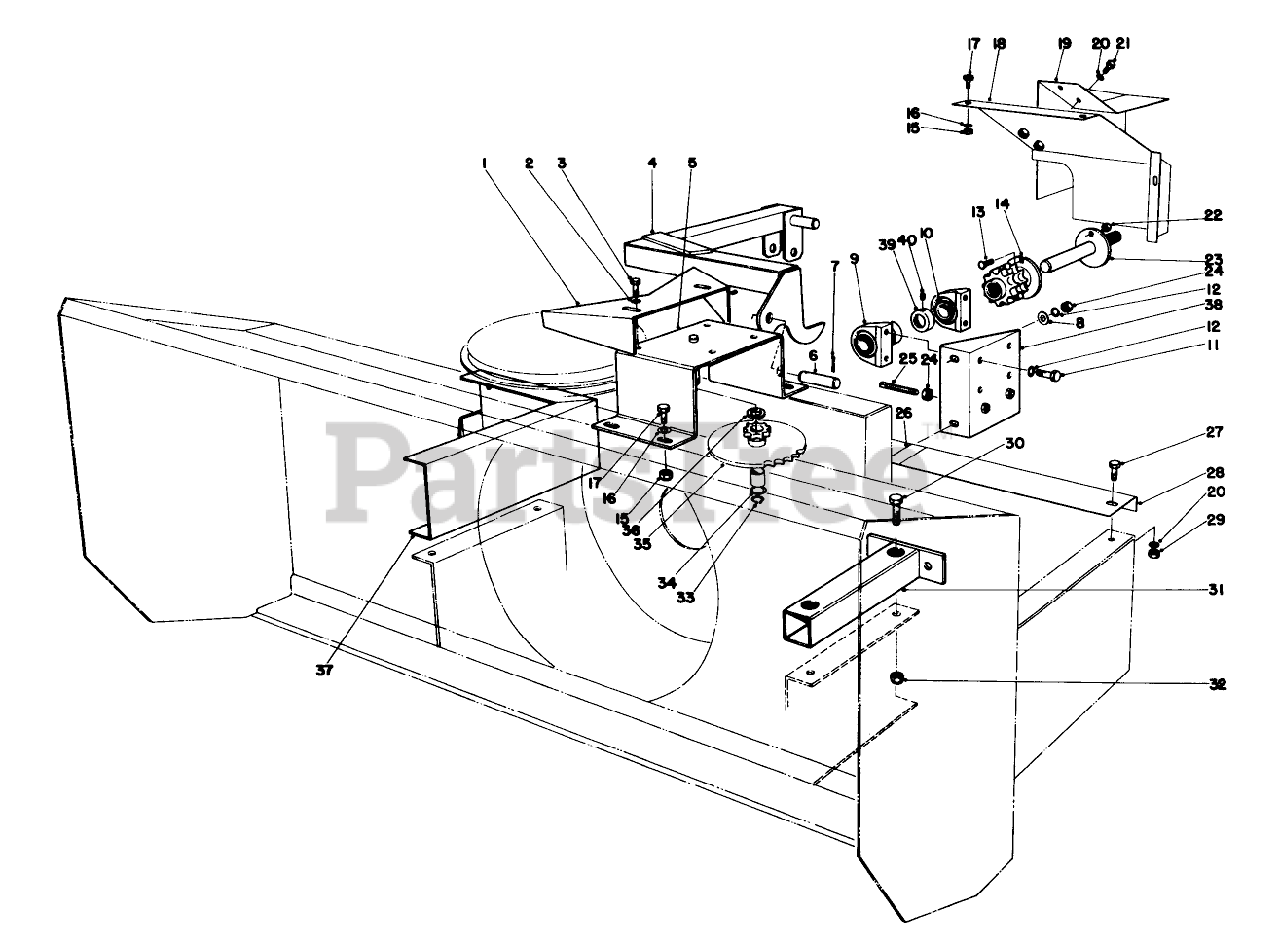

LIFT ARM & POWER TAKE OFF ASSEMBLY Parts Diagram

  • Title

1

Toro 24-8450

Chain Shield

$

$

Not available

2

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 24-8190

Lift Arm Assembly

$

$

Currently unavailable

5

Toro 24-8530

Chute Rotator

$

$

Currently unavailable

6

Toro 24-8560

Upper Lift Pin

$

$

Not available

7

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

8

Toro 32564

Washer

$

$

Currently unavailable

9

Toro 26-8090

Cast Bearing Housing

$

$

Currently unavailable

10

Toro 251-253

BEARING

$24.99

$

Usually ships in 3-6 days

0

11

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 26-8100

Shear Plate & Sprocket

$

$

Currently unavailable

15

Toro 32153-2

NUT-LOCK, SIDE
(Superseded to 603773)

$2.99

$

In Stock, Qty 8

0

16

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

17

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

18

Toro 24-8180

Shield

$

$

Not available

19

Toro 26-8690

P.T.O. Shield

$

$

Not available

20

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

23

Toro 24-8120

Countershaft

$

$

Not available

24

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

25

Toro 3243-12

Set Screw Sq. Hd.

$

$

Currently unavailable

26

Toro 26-7320

Decal

$

$

Not available

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

28

Toro 24-8270

Shield Cross Shaft

$

$

Not available

29

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

30

Toro 3254

Capscrew

$

$

Currently unavailable

31

Toro 25-7840

Left Hand Mounting Bracket

$

$

Currently unavailable

32

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

33

Toro 32120-64

RING-SNAP, EXTERNAL

$3.49

$

In Stock, only 2 left!

0

34

Toro 7-0130

Washer

$

$

Currently unavailable

35

Toro 24-8540

Idler and Bearing

$

$

Currently unavailable

36

Toro 7-0015

SPACER

$

$

Not available

37

Toro 24-8140

Right Hand Mounting Bracket

$

$

Not available

38

Toro 26-8080

Bearing Mount

$

$

Currently unavailable

39

Toro 251-77

COLLAR-LOCK, BEARING

$12.99

$

Usually ships in 3-6 days

0

40

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0
