30745 - Toro Deluxe Seat Mounting Kit SEAT SUPPORT ASSEMBLY Parts Diagram

Deluxe Seat Mounting Kit

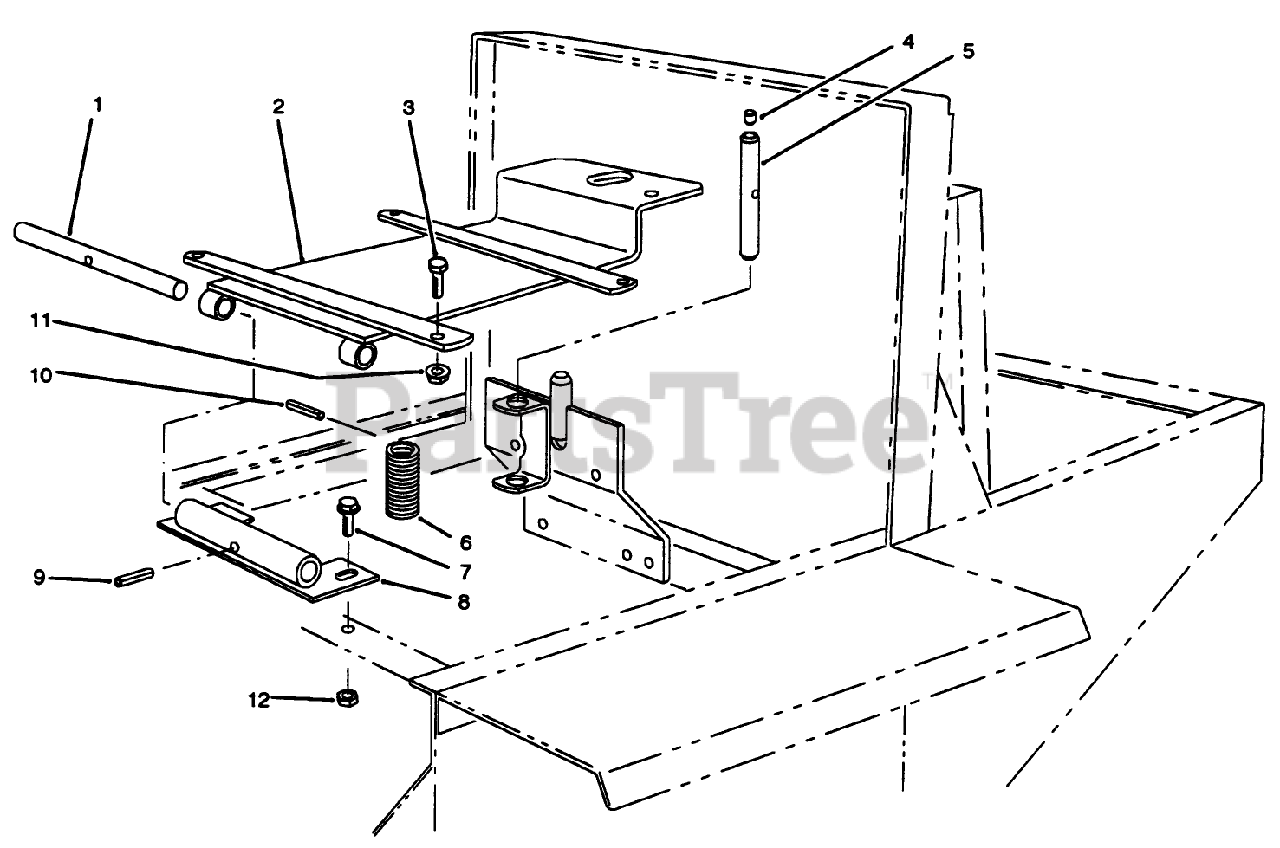

SEAT SUPPORT ASSEMBLY Parts Diagram

  • Title
1

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

2

Toro 37-9600

Seat Support
(Superseded to 37-9600-01)

$

$

Not available

3

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Toro 28-6180

PIN-PEDAL

$6.99

$

Usually ships in 3-6 days

0

5

Toro 27-9870

PIN-SWITCH, SEAT

$39.99

$

Usually ships in 3-6 days

0

6

Toro 37-9780

COMP SPRING

$

$

Not available

7

Toro 3234-17

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

8

Toro 27-9810

Pivot-Seat
(Superseded to 27-9810-01)

$

$

Not available

9

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

10

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

11

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

12

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
