30740 - Toro Suspension Seat, Groundsmaster 72 (SN: 000090001 - 000099999) (1979) SEAT SUPPORT ASSEMBLY Parts Diagram

Suspension Seat, Groundsmaster 72

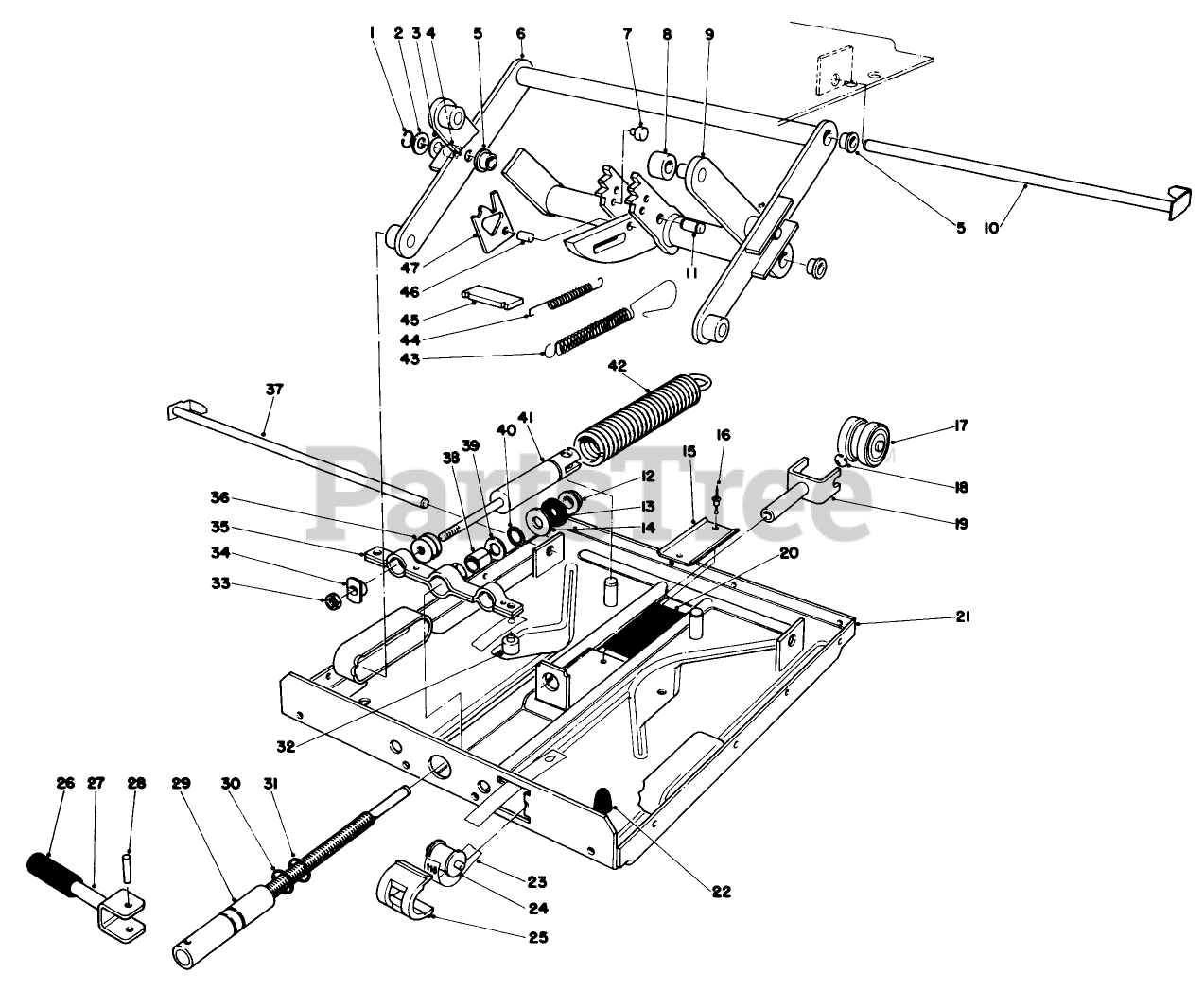

SEAT SUPPORT ASSEMBLY Parts Diagram

  • Title

1

Toro 200457

Washer

$

$

Currently unavailable

2

Toro 200283

Washer

$

$

Currently unavailable

3

Toro 110098

Washer

$

$

Not available

4

Toro 110066

WAVE WASHER

$

$

Not available

5

Toro 107684

FRONT WEIGHT B

$

$

Not available

6

Toro 107677

SPRING-BRAKE

$16.99

$

In Stock, Qty 10

0

7

Toro 107771

Bolt

$

$

Not available

8

Toro 107681

LOCKNUT-CONDUIT

$

$

Not available

9

Toro 107678

ASSY-QUADRANT

$

$

Not available

10

Toro 107673

Pin

$

$

Not available

11

Toro 107788

SPRING-EXTENSION

$14.99

$

Usually ships in 3-6 days

0

12

Toro 107653

Sleeve

$

$

Currently unavailable

13

Toro 107659

Idler Arm

$

$

Not available

14

Toro 107754

Washer 8 MM

$

$

Currently unavailable

15

Toro 107751

U-Track

$

$

Currently unavailable

16

Toro 107822

Plate 4X10MM

$

$

Currently unavailable

17

Toro 107670

Trible-Bearing

$

$

Currently unavailable

18

Toro 200796

Washer

$

$

Currently unavailable

19

Toro 107671

Fork

$

$

Currently unavailable

20

Toro 107719

Rubber Plate

$

$

Not available

21

Toro 109824

Lower Suspension Plate- Complete (Incl. Ref. # 15-16 & 20)

$

$

Not available

22

Toro 200072

Bumper

$

$

Currently unavailable

23

Toro 108057

PLATE-HOODSTAND REAR

$

$

Not available

24

Toro 107660

Roller

$

$

Not available

25

Toro 104377

Guide Sleeve

$

$

Not available

26

Toro 105021

Handle

$

$

Currently unavailable

27

Toro 105631

Toggle

$

$

Not available

28

Toro 105832

Grooved Pin 5X28MM

$

$

Not available

29

Toro 107649

Pin

$

$

Currently unavailable

30

Toro 107790

Rubber Ring 14MM Black

$

$

Not available

31

Toro 107789

Rubber Ring 14MM Red

$

$

Currently unavailable

32

Toro 107731

Plug

$

$

Currently unavailable

33

Toro 108607

ASSY-DIFFERENTIAL

$

$

Not available

34

Toro 109724

BUSHING PTO PIVOT

$

$

Not available

35

Toro 111031

Spring Bracket

$

$

Not available

36

Toro 109478

DECAL HOOD RH

$

$

Not available

37

Toro 107674

SPACER-BUSHING

$1.99

$

In Stock, Qty 17

0

38

Toro 108696

Sleeve 14x1x19MM

$

$

Currently unavailable

39

Toro 200590

Washer

$

$

Currently unavailable

40

Toro 107753

Thrust Needle Bearing

$

$

Currently unavailable

41

Toro 109705

Brake Pad

$

$

Not available

42

Toro 110431

Coil Spring

$

$

Not available

43

Toro 108260

Coil Spring

$

$

Currently unavailable

44

Toro 107676

Coil Spring

$

$

Not available

45

Toro 107675

WASHER

$3.49

$

In Stock, Qty 20+

0

46

Toro 107759

Body

$

$

Not available

47

Toro 107672

Footrest RH

$

$

Not available

Toro 107650

Adjusted Spindle Complete (Incl. Ref. #26-31)
(Superseded to 115424)

Note: Not illustrated

$

$

Not available
