30740 - Toro Suspension Seat, Groundsmaster 72 (SN: 000090001 - 000099999) (1979) SEAT ASSEMBLY Parts Diagram

Suspension Seat, Groundsmaster 72

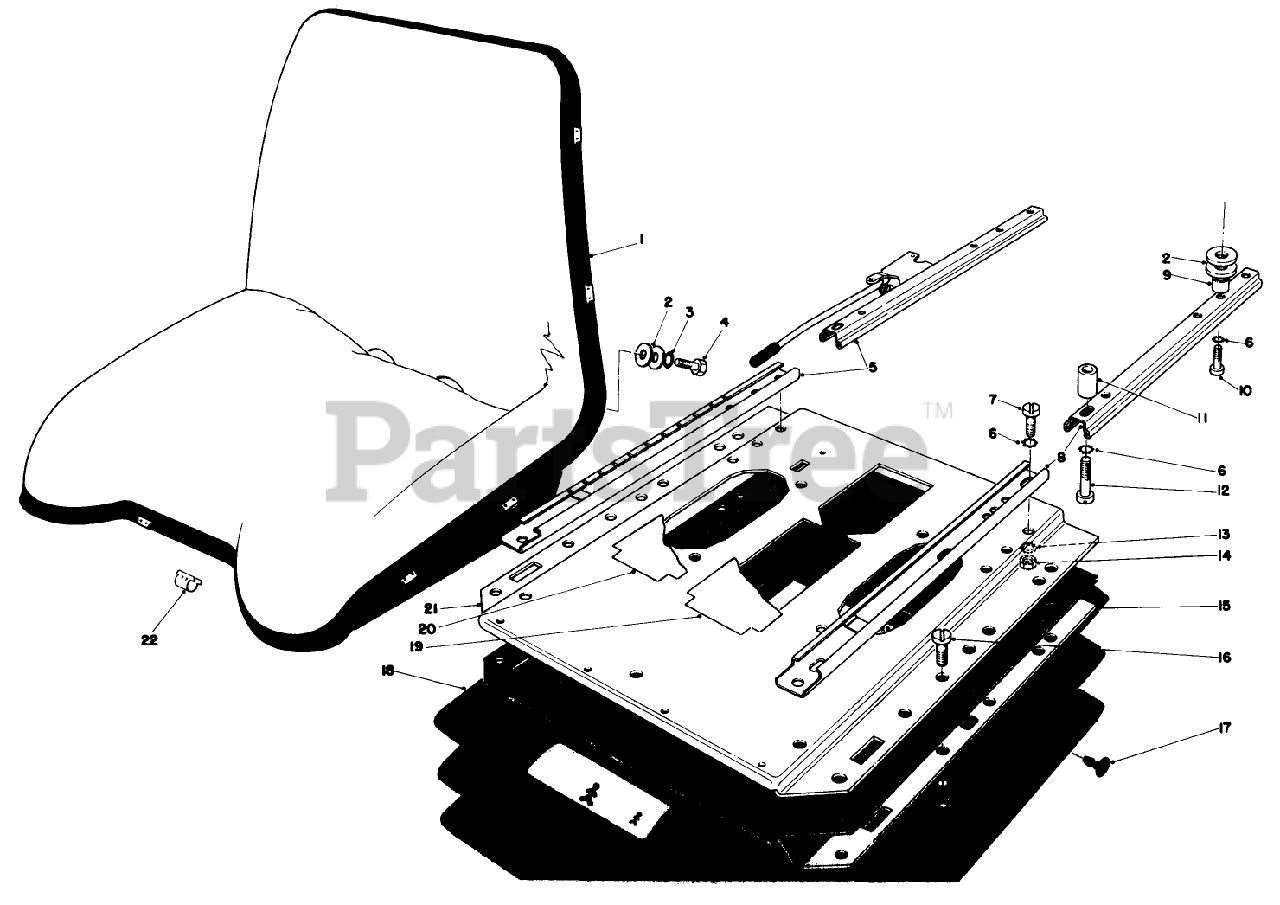

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 111558

Seat Bucket Complete

$

$

Currently unavailable

2

Toro 111557

Washer 13 MM

$

$

Currently unavailable

3

Toro 900198

Serrated Washer

$

$

Currently unavailable

4

Toro 900216

Capscrew 7/16-20 U.N.F.

$

$

Currently unavailable

5

Toro 107796

Fender
(Superseded to 99-5369)

$

$

Not available

6

Toro 101650

Serrated Washer

$

$

Currently unavailable

7

Toro 102185

KNOB-THROTTLE

$18.99

$

Usually ships in 3-6 days

0

8

Toro 107797

Adjustment Track

$

$

Currently unavailable

9

Toro 109390

Sleeve

$

$

Not available

10

Toro 108910

PLATE-FRONT AXLE R

$

$

Not available

11

Toro 110190

TORQUE STRAP RH R

$

$

Not available

12

Toro 107931

Cylinder Bolt

$

$

Currently unavailable

13

Toro 200050

Spring Washer

$

$

Currently unavailable

14

Toro 200060

Nut M8

$

$

Currently unavailable

15

Toro 109808

Trim

$

$

Not available

16

Toro 200304

Capscrew

$

$

Currently unavailable

17

Toro 105840

PULLEY-PTO TRANSM R

$

$

Not available

18

Toro 107683

Rubber Bellows

$

$

Currently unavailable

19

Toro 107985

Cover

$

$

Not available

20

Toro 110296

TORQUE STRAP LH R

$

$

Not available

21

Toro 111556

Upper Suspension Plate Complete

$

$

Currently unavailable

22

Toro 106299

Clamps Outside

$

$

Currently unavailable

Toro 37-9630

Seat ASM-Complete

Note: Not illustrated

$

$

Not available
