30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1979) GOVERNOR ASSEMBLY-25-7640 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

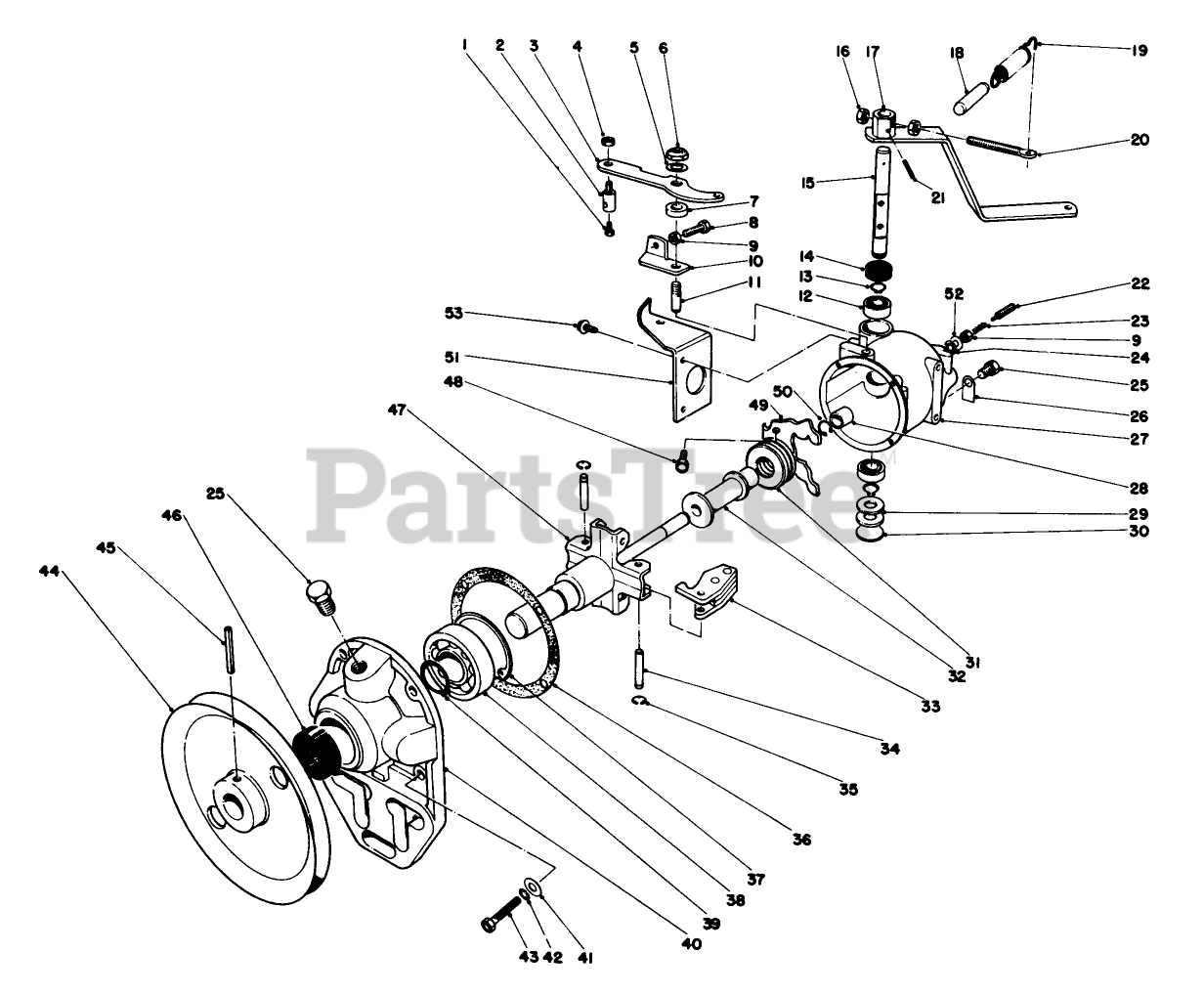

GOVERNOR ASSEMBLY-25-7640 Parts Diagram

  • Title

1

Toro 25-8640

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

2

Toro 25-9090

SWIVEL

$

$

Not available

3

Toro 25-9040

Speed Change Lever

$

$

Not available

4

Toro 3296-13

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

5

Toro 25-9110

WASHER

$

$

Not available

6

Toro 25-8620

STOP NUT

$

$

Not available

7

Toro 25-9010

Spacer

$

$

Not available

8

Toro 329-4

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Toro 3219-1

NUT-HEX

$0.99

$

In Stock, Qty 11

0

10

Toro 25-8940

Stop Bracket

$

$

Not available

11

Toro 25-9000

STUD

$

$

Not available

12

Toro 25-8600

BALL BRG

$

$

Not available

13

Toro 25-8500

EXT SNAP RING

$

$

Not available

14

Toro 25-8550

OIL SEAL

$

$

Not available

15

Toro 25-8990

Rocker Shaft

$

$

Not available

16

Toro 3219-2

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

17

Toro 25-8900

THROTTLE LEVER ASM

$

$

Not available

18

Toro 25-9020

FORCED IDLE PLUG

$

$

Not available

19

Toro 25-9050

SPRING

$

$

Not available

20

Toro 25-8910

EYESCREW

$

$

Not available

21

Toro 32121-23

PIN-ROLL

$

$

Not available

22

Toro 25-8920

BUMPER SCREW

$

$

Not available

23

Toro 25-9060

BUMPER SPRING

$

$

Not available

24

Toro 25-8560

SEALING WASHER

$

$

Not available

25

Toro 25-8590

PIPE PLUG

$

$

Not available

26

Toro 25-9080

OIL LEVEL TAG

$

$

Not available

27

Toro 25-8930

BODY

$

$

Not available

28

Toro 25-8610

DRIVE SHAFT BUSHING

$

$

Not available

29

Toro 25-9100

WASHER

$

$

Not available

30

Toro 25-8630

WELCH PLUG

$

$

Not available

31

Toro 25-8580

Thrust Bearing

$

$

Not available

32

Toro 25-8960

Thrust Sleeve

$

$

Not available

33

Toro 25-8880

WEIGHT ASM

$

$

Not available

34

Toro 25-9030

Weight Pin
(Superseded to 49-1750)

$

$

Not available

35

Toro 25-8520

E RETAINING RING

$

$

Not available

36

Toro 25-9070

GASKET

$

$

Not available

37

Toro 25-8530

INT BEVELED

$

$

Not available

38

Toro 251-6

BEARING-BALL

$

$

Not available

39

Toro 25-8510

RETAINING RING

$

$

Not available

40

Toro 25-8980

FLANGE

$

$

Not available

41

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

42

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

43

Toro 3290-332

10-24 X 7/8 IND HD SC

$

$

Not available

44

Toro 25-8970

Pulley
(Superseded to 70-2580)

$

$

Not available

45

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

46

Toro 25-8570

OIL SEAL
(Superseded to 18-5580)

$

$

Not available

47

Toro 25-8890

SPIDER & SHAFT ASM

$

$

Not available

48

Toro 25-9160

MACHINE SCREW

$

$

Not available

49

Toro 25-8950

YOKE

$

$

Not available

50

Toro 25-8540

RETAINING RING

$

$

Not available

51

Toro 25-8440

Bracket

$

$

Not available

52

Toro 26-7260

Shim Washer

$

$

Not available

53

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 20+

0
