30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1979) GEAR CASE ASSEMBLY-8-0909 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

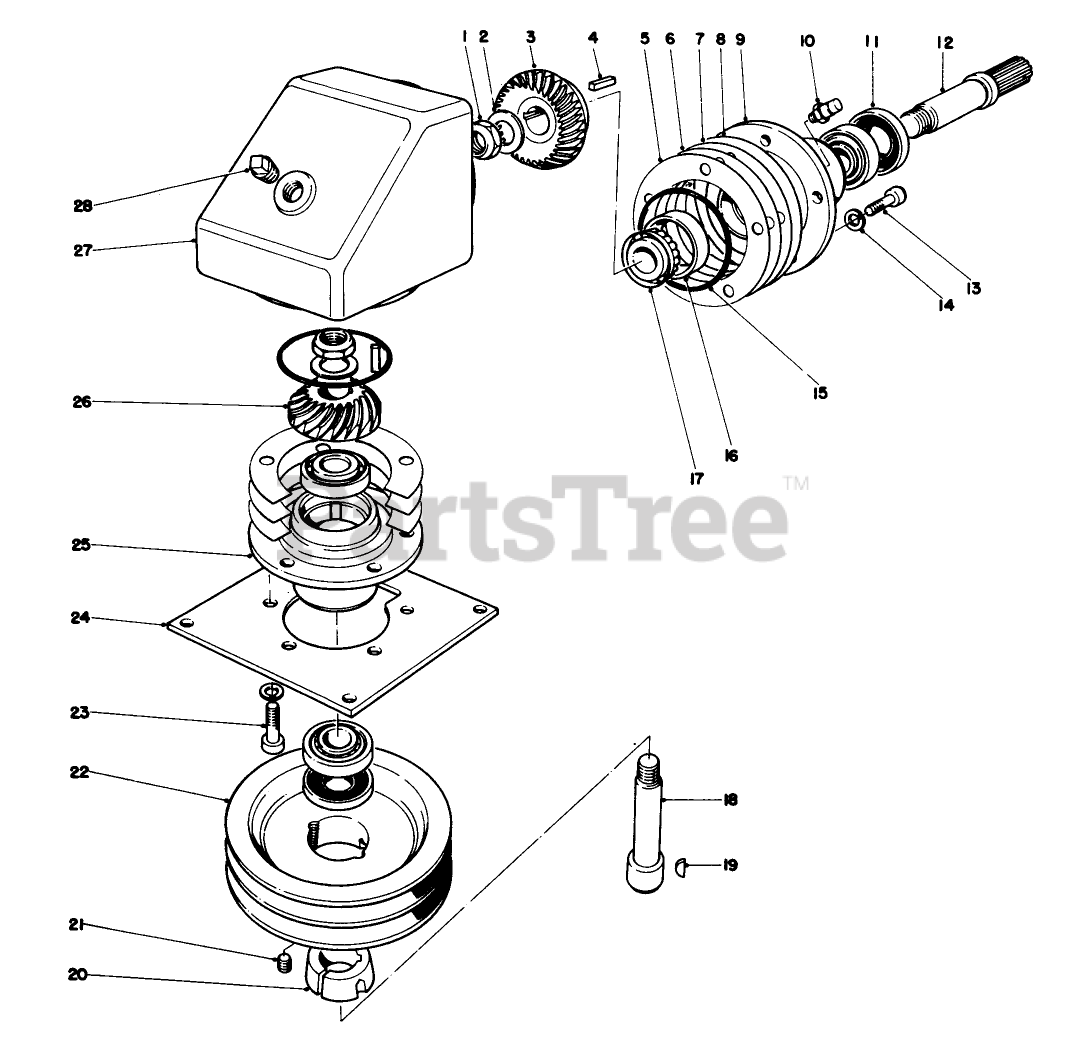

GEAR CASE ASSEMBLY-8-0909 Parts Diagram

  • Title
1

Toro 3296-15

NUT-LOCK, NI

$2.99

$

In Stock, Qty 7

0

2

Toro 3-6514

THRUST WASHER

$2.49

$

Usually ships in 3-6 days

0

3

$583.99

$

Usually ships in 3-6 days

0

4

Toro 18-6430

KEY-SQUARE

$4.49

$

Usually ships in 3-6 days

0

5

Toro 26-1350

.002 SHIM (RED)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 26-1360

.005 SHIM (BLUE)

$7.49

$

In Stock, only 1 left!

0

7

Toro 26-1370

.015 SHIM (PINK)

$2.99

$

In Stock, only 1 left!

0

8

$3.99

$

In Stock, only 1 left!

0

9

Toro 26-1290

INPUT BRG HSG

$

$

Not available

10

$8.99

$

Usually ships in 3-6 days

0

11

Toro 253-137

OIL SEAL

$7.99

$

Usually ships in 3-6 days

0

12

Toro 26-1310

INPUT SHAFT

$

$

Not available

13

Toro 3274-7

SCREW-HSH

$2.99

$

Usually ships in 3-6 days

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 237-97

O-RING

$

$

Not available

16

Toro 254-90

BEARING-CUP

$12.99

$

Usually ships in 3-6 days

0

17

Toro 254-91

CONE-BEARING

$20.99

$

Usually ships in 3-6 days

0

18

Toro 26-1320

OUTPUT SHAFT

$

$

Not available

19

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

20

Toro 23-1640

Bushing-Taper Lock (Incl. Ref. #2)

$87.99

$

Usually ships in 3-6 days

0

21

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0

22

Toro 26-1400

PULLEY-DECK

$

$

Not available

23

Toro 3274-1

SCREW-HSH

$8.99

$

Usually ships in 3-6 days

0

24

Toro 26-1390

GEAR BOX MTG PLT R

$

$

Not available

25

Toro 26-1380

OUTPUT BRG HSG

$

$

Not available

26

Toro 26-1330

PINION

$

$

Not available

27

Toro 26-1270

GEAR BOX

$355.99

$

In Stock, only 1 left!

0

28

Toro 281-11

3/8-18 SQ HD PLUG/MAG

$

$

Not available

Toro 8-0909

Gear Case Assembly (Incl. Ref. #1-19 & 23-28)

Note: Not illustrated

$

$

Not available
