30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1979) ELECTRICAL SCHEMATIC Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

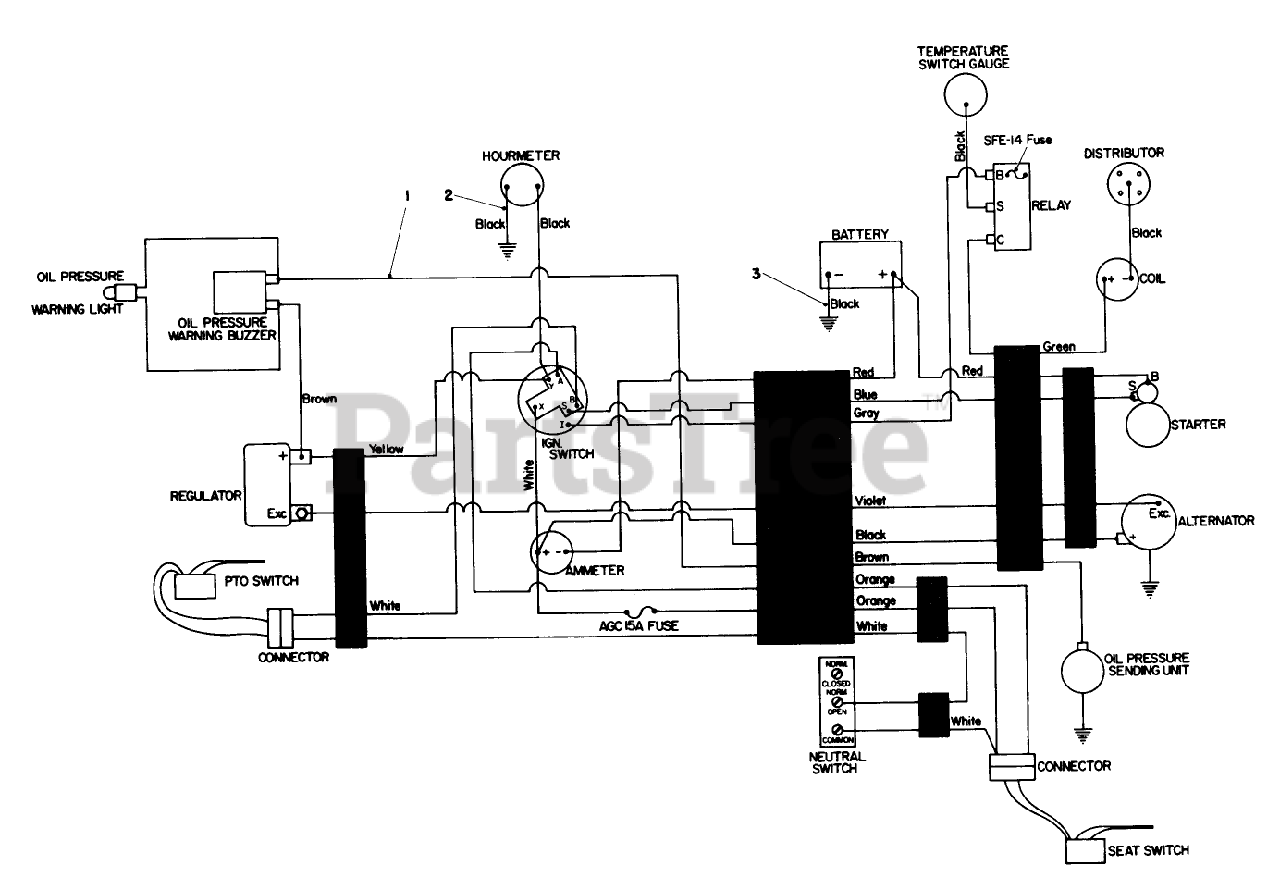

ELECTRICAL SCHEMATIC Parts Diagram

  • Title
1

Toro 28-0790

WIRING HARNESS

$

$

Not available

2

Toro 21-2370

Wire Harness
(Superseded to 92-7827)

$

$

Not available

3

Toro 218-219

Cable Ground

$

$

Not available
