30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 009000001 - 009999999) (1979) BRAKE & STEERING GEAR ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

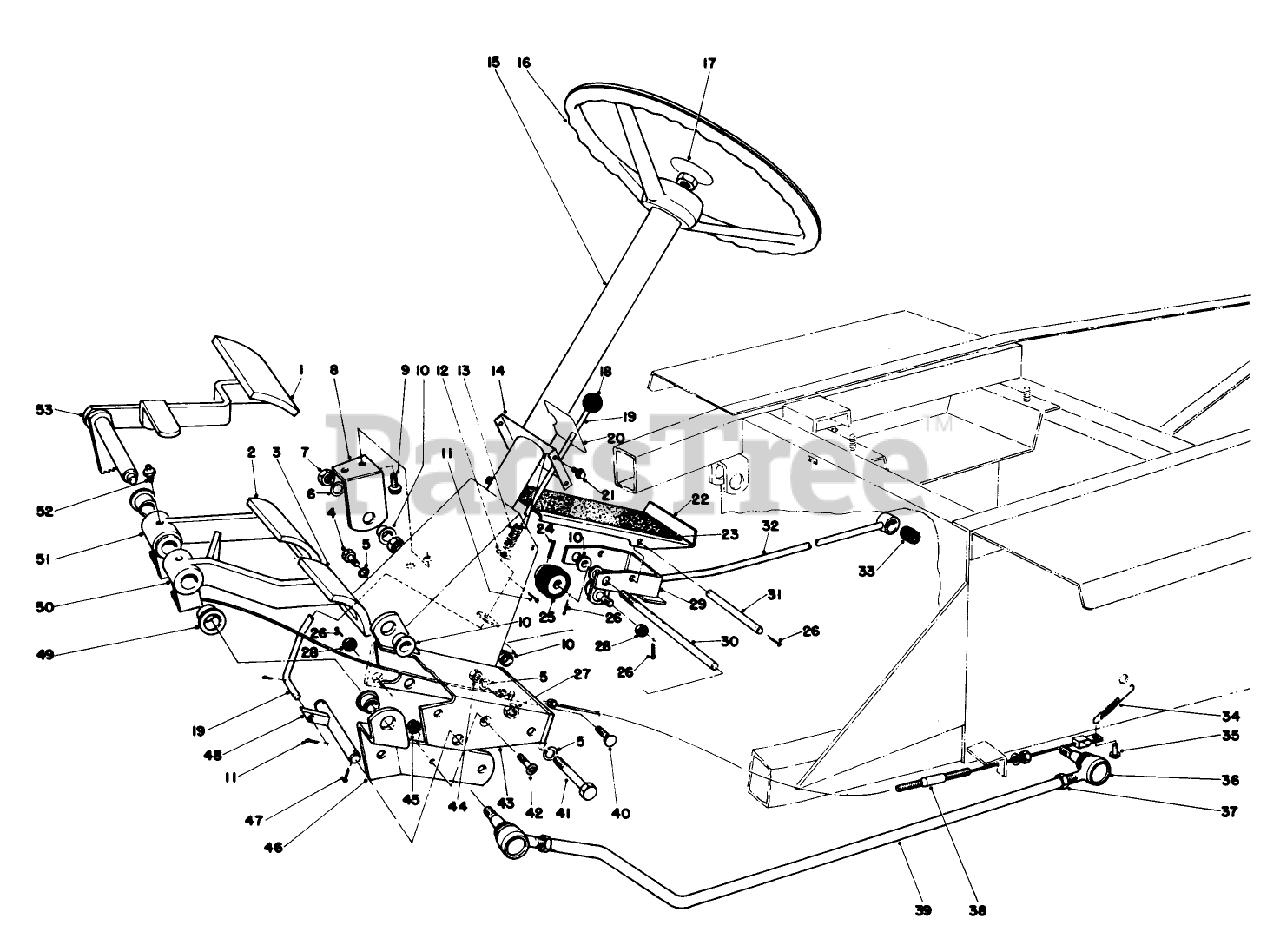

BRAKE & STEERING GEAR ASSEMBLY Parts Diagram

  • Title

1

Toro 7-3900

PAD-BRAKE

$32.99

$

In Stock, only 3 left!

0

2

Toro 27-7580

PAD-TURN, RIGHT
(Superseded to 93-8743)

$33.99

$

Usually ships in 3-6 days

0

3

Toro 27-7570

PAD-TURN, LEFT
(Superseded to 93-8743)

$33.99

$

Usually ships in 3-6 days

0

4

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

6

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

8

Toro 21-2850

Mount-RH Pedal
(Superseded to 21-2850-01)

$

$

Not available

9

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

10

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

11

Toro 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

12

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

13

Toro 3-3251

Spring
(Superseded to 95-1821)

$8.49

$

Usually ships in 3-6 days

0

14

Toro 27-9530

STRG COLUMN SUPT R

$

$

Not available

15

Toro 33-4350

STEERING GEAR ASM,GM72 PRE 1988

$

$

Not available

16

Toro 24-2000

STEERING WHEEL

$

$

Not available

17

Toro 24-2090

STEERING WHEEL CAP

$

$

Not available

18

Toro 233-17

KNOB

$12.99

$

Usually ships in 3-6 days

0

19

Toro 27-7660

BRAKE LATCH ROD B

$

$

Not available

20

Toro 27-7300

PARKING BRAKE DECAL

$

$

Not available

21

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 6

0

22

Toro 28-5190

TRACTION PEDAL R

$

$

Not available

23

Toro 28-5130

TRACTION PEDAL PAD

$

$

Not available

24

Toro 32121-16

PIN-SPRING

$0.99

$

In Stock, Qty 8

0

25

Toro 28-5220

FRICTION WHEEL ASM

$116.99

$

Usually ships in 3-6 days

0

26

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

27

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

28

Toro 32136-4

NUT-SLOTTED

$2.49

$

In Stock, Qty 10

0

29

Toro 28-5160

Pivot Bracket (Incl. Ref. #10)
(Superseded to 28-5160-01)

$

$

Not available

30

Toro 28-5210

TRACT PEDAL SHAFT

$

$

Not available

31

Toro 28-5240

TRACT PEDAL PIN

$

$

Not available

32

Toro 23-2240

PUMP CONTROL TUBE WA
(Superseded to 23-2240-03)

$

$

Not available

33

Toro 23-2270

BUSHING-RUBBER

$20.99

$

Usually ships in 3-6 days

0

34

Toro 3-7243

SPRING-EXTENSION

$13.99

$

In Stock, only 2 left!

0

35

Toro 283-30

PIN-CLEVIS

$0.99

$

Usually ships in 3-6 days

0

36

Toro 21-0140

Socket
(Superseded to 99-5686)

$

$

Not available

37

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

38

Toro 21-3380

LH BRAKE CABLE ASM
(Superseded to 108-1380)

$172.99

$

Usually ships in 3-6 days

0

Toro 21-3370

RH BRAKE CABLE ASM
(Superseded to 108-1379)

Note: Not illustrated

$172.99

$

In Stock, only 4 left!

0

39

Toro 26-9760

Tube Front Steering
(Superseded to 42-6060)

$

$

Not available

40

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

41

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

42

Toro 3274-47

SCREW-HSFH

$1.49

$

Usually ships in 3-6 days

0

43

Toro 27-7590

Brake Mount
(Superseded to 27-7590-01)

$

$

Not available

44

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

45

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

46

Toro 27-9270

Brake Pivot Shaft Mount
(Superseded to 27-9270-01)

$

$

Not available

47

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

48

Toro 27-7640

Brake Latch Shaft
(Superseded to 27-7640-01)

$

$

Not available

49

Toro 256-10

BUSHING-FLANGE

$5.49

$

Usually ships in 3-6 days

0

50

Toro 27-7490

Brake Pedal L.H. (Incl. Ref. #49)

$

$

Not available

51

Toro 27-7510

Brake Pedal R.H. (Incl. Ref. #49)

$

$

Not available

52

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

53

Toro 27-8550

Pedal-Parking Bake
(Superseded to 27-8550-01)

$

$

Not available
