30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) RADIATOR & HOOD ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

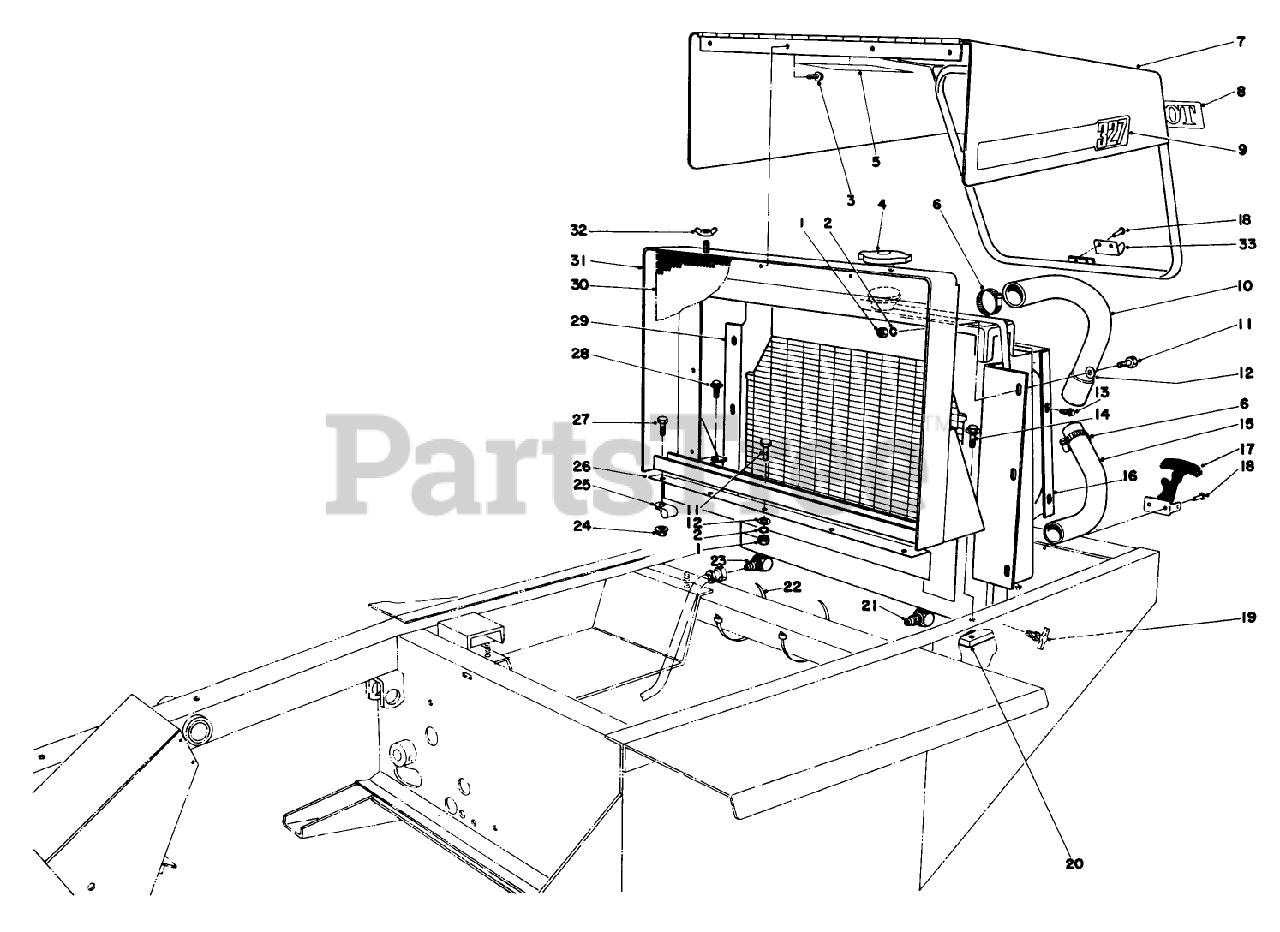

RADIATOR & HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

3

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

4

Toro 18-2660

RAD PRESS CAP ASM

$

$

Not available

5

Toro 26-7530

Decal
(Superseded to 82-8970)

$

$

Not available

6

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

7

Toro 62-3040

Hood
(Superseded to 12-5889)

$

$

Not available

8

Toro 18-2180

Decal
(Superseded to 66-6140)

$27.99

$

In Stock, only 3 left!

0

9

Toro 54-7570

DECAL-GM 327

$

$

Not available

10

Toro 26-9890

UPPER HOSE

$

$

Not available

11

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

13

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

15

Toro 26-9900

LOWER HOSE

$

$

Not available

16

Toro 52-1530

RAD SHROUD WA B

$

$

Not available

17

Toro 60-8670

Draw Latch
(Superseded to 59-9740)

$39.99

$

Usually ships in 3-6 days

0

18

Toro 3269-16

RIVET
(Superseded to 3290-54)

$0.99

$

In Stock, only 2 left!

0

19

Toro 304-46

DRAINCOCK

$8.49

$

Usually ships in 3-6 days

0

20

Toro 38-4600

LH FRAME BAR

$

$

Not available

21

Toro 353-548

ELBOW

$

$

Not available

22

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

23

Toro 42-6290

ELBOW

$

$

Not available

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

26

Toro 23-1760

Sealing Plate Grill

$

$

Not available

27

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 52-1500

RADIATOR

$

$

Not available

30

Toro 23-1770

GRILLE WA R

$

$

Not available

31

Toro 23-1700

Radiator Support

$

$

Not available

32

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

33

Toro 60-8660

Keeper
(Superseded to 59-9740)

$39.99

$

Usually ships in 3-6 days

0

34

Toro 54-0890

DECAL-ROTATING

$

$

Not available
