30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) POWER TAKE OFF ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

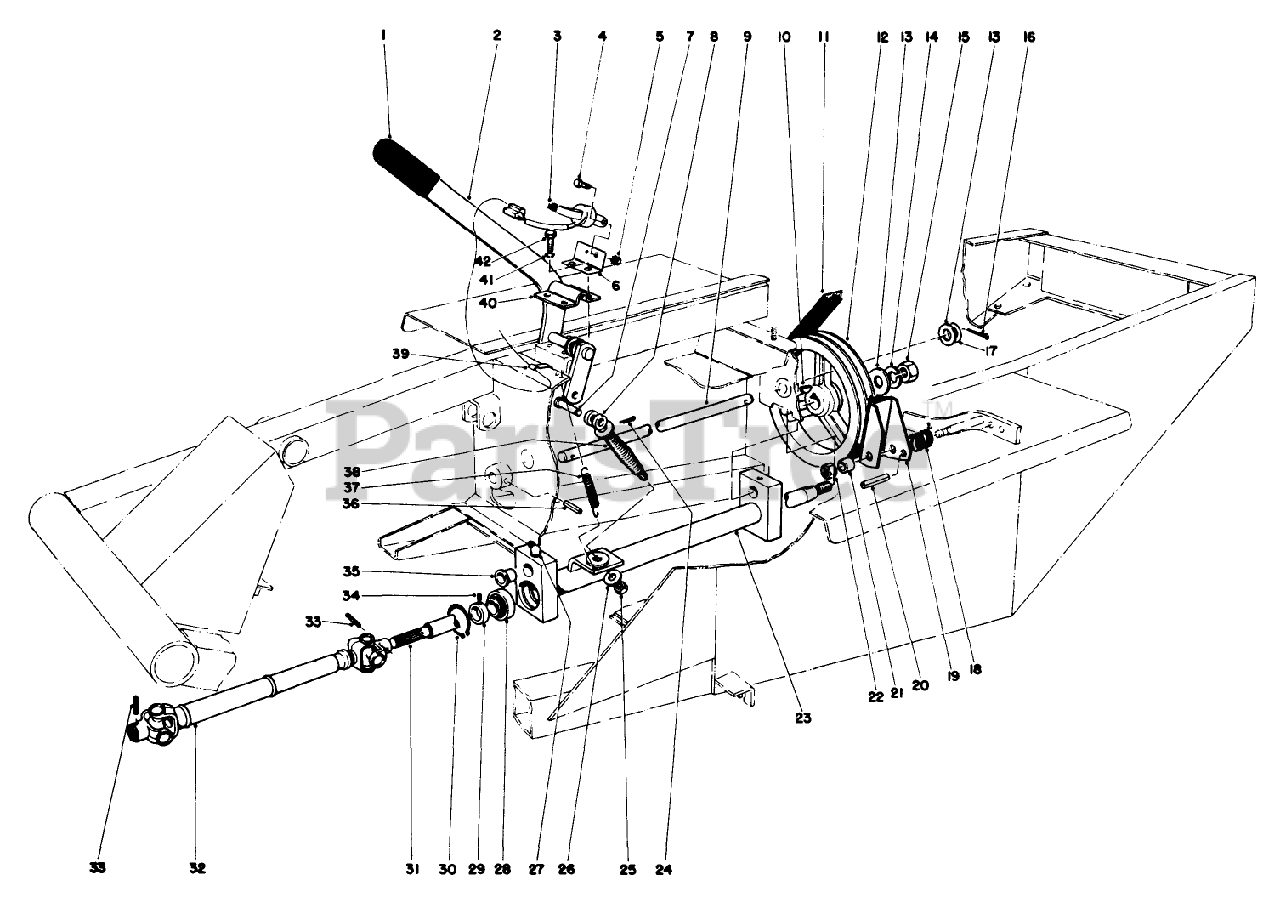

POWER TAKE OFF ASSEMBLY Parts Diagram

  • Title
1

Toro 21-1880

GRIP-HANDLE

$13.99

$

Usually ships in 3-6 days

0

2

Toro 21-1550

Lever P.T.O.
(Superseded to 84-8500-01)

$

$

Not available

3

Toro 29-6930

SWITCH ARM

$

$

Not available

4

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

6

Toro 27-7260

SWITCH ARM MT

$

$

Not available

7

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

8

Toro 21-2080

YOKE END WA R

$

$

Not available

9

Toro 23-2020

PIVOT PTO SHAFT

$

$

Not available

10

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

11

Toro 53-9660

V-BELT
(Superseded to 106-4383)

$

$

Not available

12

Toro 21-0230

PULLEY-PTO

$

$

Not available

13

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

14

Toro 3254-7

WASHER-LOCK, INT

$6.49

$

Usually ships in 3-6 days

0

15

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 9

0

16

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

17

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

18

Toro 5-1747

SPRING-ADJUSTMENT

$

$

Not available

19

Toro 27-7370

PTO BRAKE ASM

$

$

Not available

20

Toro 32121-49

PIN-ROLL

$3.49

$

Usually ships in 3-6 days

0

21

Toro 3-8812

SPACER-SPRING, ANCHOR

$

$

Not available

22

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 4 left!

0

23

Toro 23-1980

Pivot-Power Take Off (Incl. Ref. #35)

$

$

Not available

24

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

25

Toro 3296-26

NUT-LOCK, NI

$3.99

$

Usually ships in 3-6 days

0

26

Toro 3256-36

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

27

Toro 302-10

FITTING-GREASE

$3.99

$

Usually ships in 3-6 days

0

28

Toro 251-261

Bearing
(Superseded to 251-252)

$

$

Not available

29

Toro 251-234

Lock Collar (Incl. Ref. #34)

$

$

Not available

30

Toro 32120-22

RING-SNAP, INTERNAL

$3.49

$

Usually ships in 3-6 days

0

31

Toro 23-2010

PTO SHAFT

$

$

Not available

32

Toro 62-4260

Asm-Drive Shaft
(Superseded to 100-6564)

$

$

Not available

33

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

34

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

35

Toro 256-136

3/4IDX1LG FLANGE BSHG

$

$

Not available

36

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

37

Toro 21-1830

SPRING-EXTENSION

$36.99

$

In Stock, only 1 left!

0

38

Toro 21-0400

SPRING-COMPRESSION
(Superseded to 21-0400-01)

$22.99

$

Usually ships in 3-6 days

0

39

Toro 212-93

CLAMP-CASING

$4.99

$

Usually ships in 3-6 days

0

40

Toro 21-1600

CLAMP-LEVER, PTO

$

$

Not available

41

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

42

Toro 32104-6

SCREW-HH, TAP

$4.49

$

Usually ships in 3-6 days

0
