30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) HYDRAULIC CYLINDER ASSEMBLY NO.62-4250 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

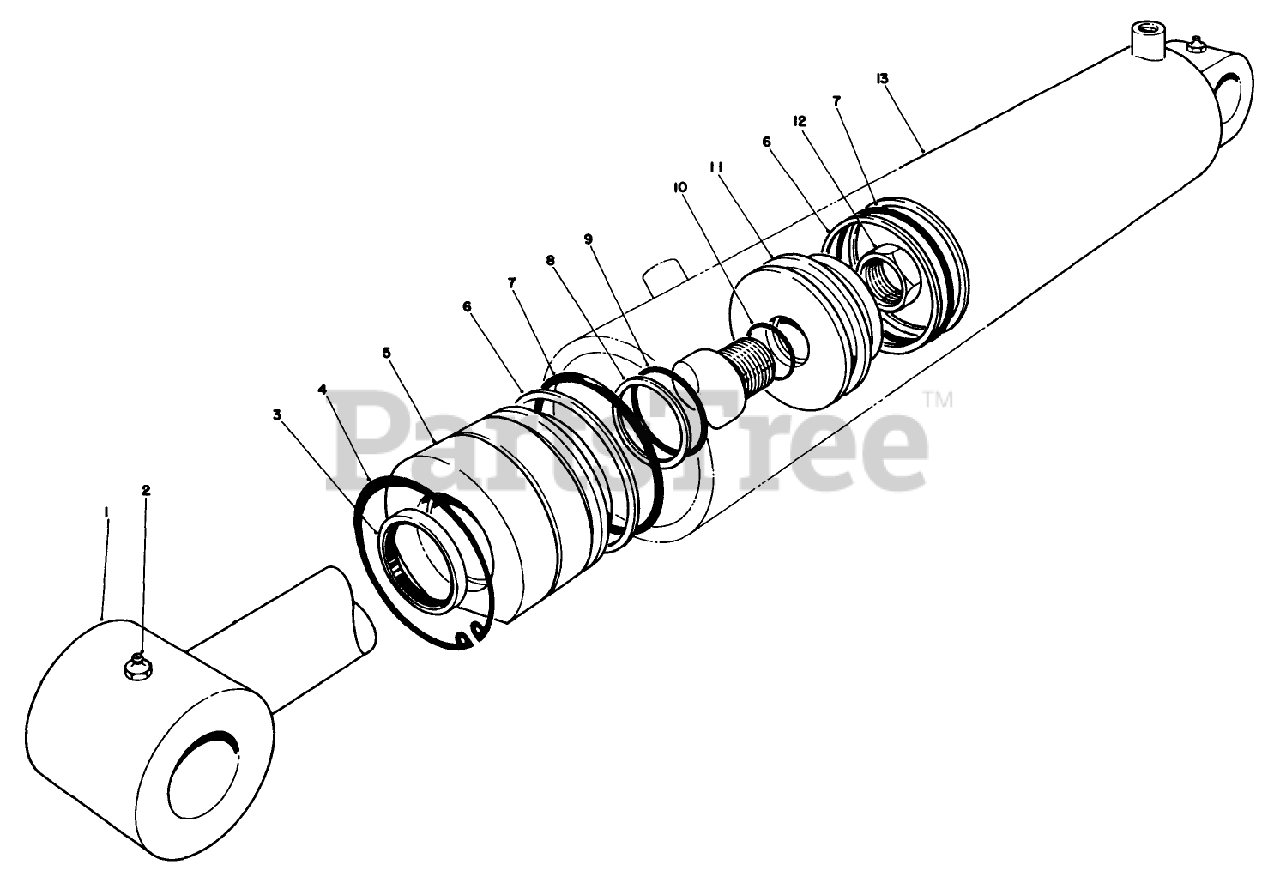

HYDRAULIC CYLINDER ASSEMBLY NO.62-4250 Parts Diagram

  • Title
1

Toro 61-4980

SHAFT WITH CLEVIS

$

$

Not available

2

Toro 302-22

FITTING-GREASE

$13.99

$

Usually ships in 3-6 days

0

3

Dust Seal

$

$

Not available

4

Toro 61-4990

RING-RETAINING

$

$

Not available

5

Toro 60-9780

HEAD
(Superseded to 100-6586)

$

$

Not available

6

Ring-Back-Up

$

$

Not available

8

Ring-Back-Up

$

$

Not available

11

Toro 60-9770

PISTON

$

$

Not available

12

$7.99

$

Usually ships in 3-6 days

0

13

Toro 61-4970

Barrel

$

$

Currently unavailable

Toro 61-4960

Seal Repair Kit (Incl. Ref. #3, 6-10)

$

$

Not available
