30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1988) ENGINE ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

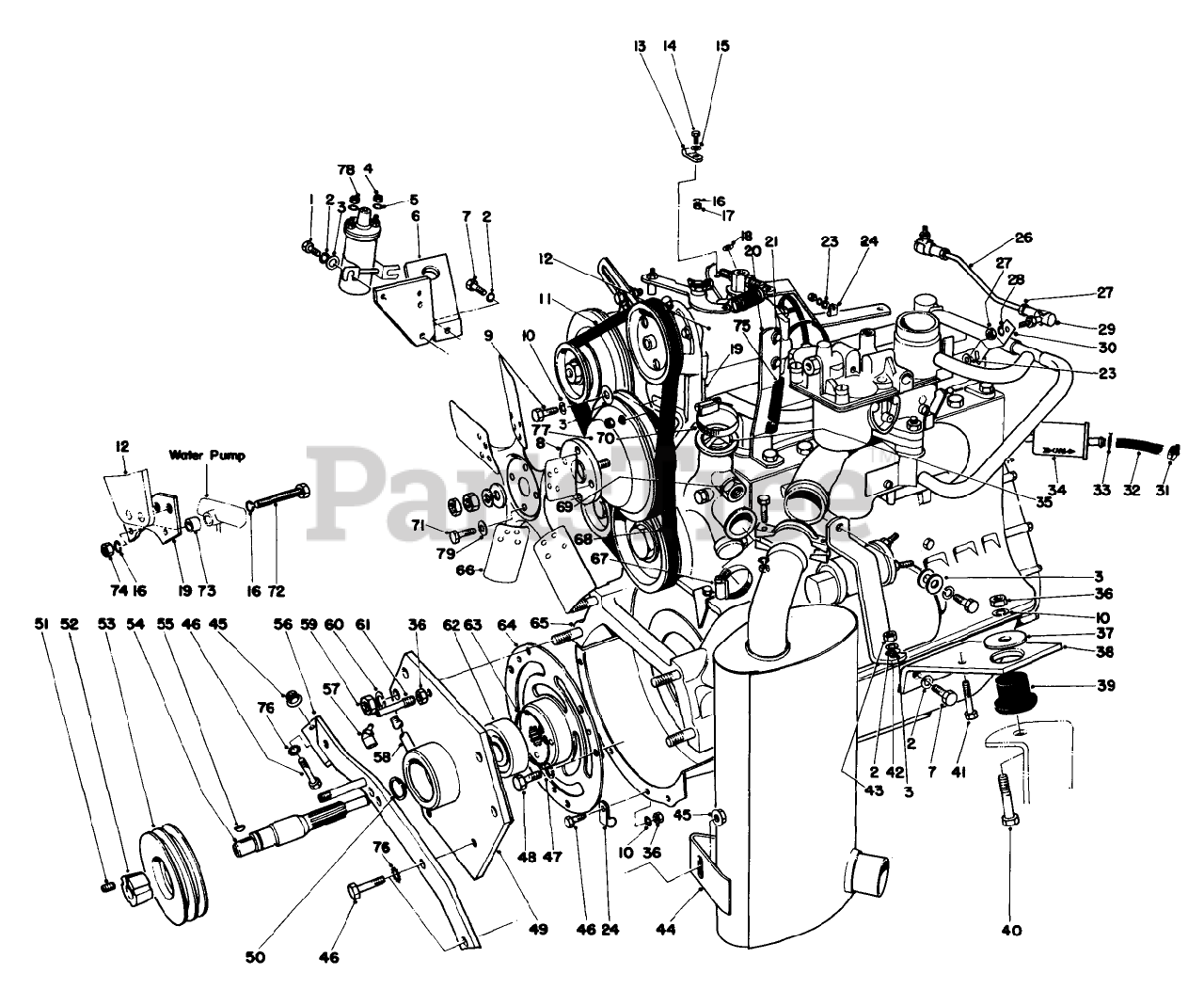

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 43-5970

M5 HEX NUT
(Superseded to 48-7880)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 21-5890

Metric Lockwasher

$

$

Not available

6

Toro 21-2320

ENG MOUNT WA B

$

$

Not available

7

Toro 21-0350

CAPSCREW

$

$

Not available

8

Toro 27-9700

Spacer

$

$

Not available

9

Toro 3211-5

SCREW-HH

$3.49

$

In Stock, Qty 5

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 25-8340

V-BELT

$

$

Not available

12

Toro 25-7640

GOVERNOR

$

$

Not available

13

Toro 2412-31

CLAMP-BODEN

$1.99

$

Usually ships in 3-6 days

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

17

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 25-8310

GOVERNOR BRKT

$

$

Not available

20

Toro 25-8320

SUPPORT BRKT B

$

$

Not available

21

Toro 12-3270

SCREW

$3.49

$

In Stock, Qty 11

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 2412-41

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

26

Toro 25-9280

THROTTLE ROD

$

$

Not available

27

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

28

Toro 3253-12

WASHER-LOCK/SP

$

$

Not available

29

Toro 21-5640

BALL JOINT

$

$

Not available

30

Toro 36-4330

Lever Carburetor

$

$

Not available

31

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

32

Toro 18-2400

FUEL LINE HOSE
(Superseded to 110-0047)

$14.99

$

Usually ships in 3-6 days

0

33

Toro 2412-6

CLAMP-HOSE

$

$

Not available

34

Toro 18-1520

FiIter Gas
(Superseded to 108-3831)

$10.99

$

In Stock, only 1 left!

0

35

Toro 26-9140

THERMOSTAT (F/W)

$

$

Not available

36

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

37

Toro 3-3391

Washer
(Superseded to 95-1823)

$36.99

$

Usually ships in 3-6 days

0

38

Toro 21-2300

ENGINE MOUNT B

$

$

Not available

39

Toro 21-0130

RUBBER MOUNT

$

$

Not available

40

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

41

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

42

Toro 21-2310

ENG MT BRKT B

$

$

Not available

43

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

44

Toro 23-1850

MUFFLER

$

$

Not available

45

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

46

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

47

Toro 21-0340

LOCKWASHER

$

$

Not available

48

Toro 21-0330

Metric Capscrew
(Superseded to 93-5398)

$

$

Not available

49

Toro 28-9700

BEARING MOUNT

$

$

Not available

50

Toro 32120-69

RING-SNAP

$

$

Not available

51

Toro 3247-4

SCREW-SET

$5.99

$

Usually ships in 3-6 days

0

52

Toro 23-1640

Bushing-Taper Lock (Incl. Ref . #51)

$85.99

$

Usually ships in 3-6 days

0

53

Toro 23-1630

DRIVE PULLEY

$

$

Not available

54

Toro 23-1620

ENGINE OUTPUT SHAFT

$

$

Not available

55

Toro 3257-5

KEY-WOODRUFF

$5.49

$

In Stock, Qty 7

0

56

Toro 27-7340

FRONT ENGINE SUPT WA

$

$

Not available

57

Toro 302-8

FITTING-GREASE

$

$

Not available

58

Toro 289-40

PIPE NIPPLE

$

$

Not available

59

Toro 21-0360

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

60

Toro 3254-3

WASHER-LOCK/INT
(Superseded to 3254-20)

$1.99

$

Usually ships in 3-6 days

0

61

Toro 21-1820

STUD-RETAINER, BELT

$45.99

$

Usually ships in 3-6 days

0

62

Toro 251-261

Bearing
(Superseded to 251-252)

$

$

Not available

63

Toro 32120-22

RING-SNAP, INTERNAL

$3.49

$

Usually ships in 3-6 days

0

64

Toro 21-2260

ENG ADAPTOR DRIVE ASM

$

$

Not available

65

Toro 52-4840

Engine-Continental (Model No. R08-D15-2002
(Superseded to 71-2840)

$

$

Not available

66

Toro 52-1560

15 INCH FAN

$

$

Not available

67

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

68

Toro 26-6660

V-BELT

$

$

Not available

69

Toro 26-6690

TEMP GAGE ADAPTER

$

$

Not available

70

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

71

Toro 43-0110

Screw-HH
(Superseded to 33114-020)

$0.99

$

In Stock, Qty 13

0

72

Toro 24-2560

SCREW-HH, M6

$

$

Not available

73

Toro 24-2490

SPACER

$

$

Not available

74

Toro 43-2830

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

75

Toro 39-8080

SUPT BRKT TRIM

$

$

Not available

76

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

77

Toro 27-9660

PULLEY

$

$

Not available

78

Toro 43-2830

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

79

Toro 21-1660

FLAT WASHER

$

$

Not available

Toro 36-3190

SPARK ARREST MUFFLER

$

$

Not available

Toro 2112-9

CLAMP

$9.49

$

Usually ships in 3-6 days

0

80

Toro 42-9500

Capscrew
(Superseded to 33114-045)

$1.99

$

Usually ships in 3-6 days

0

81

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

82

Toro 49-9580

MUFFLER BRKT

$

$

Currently unavailable
