30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1978) PUSH ARM ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

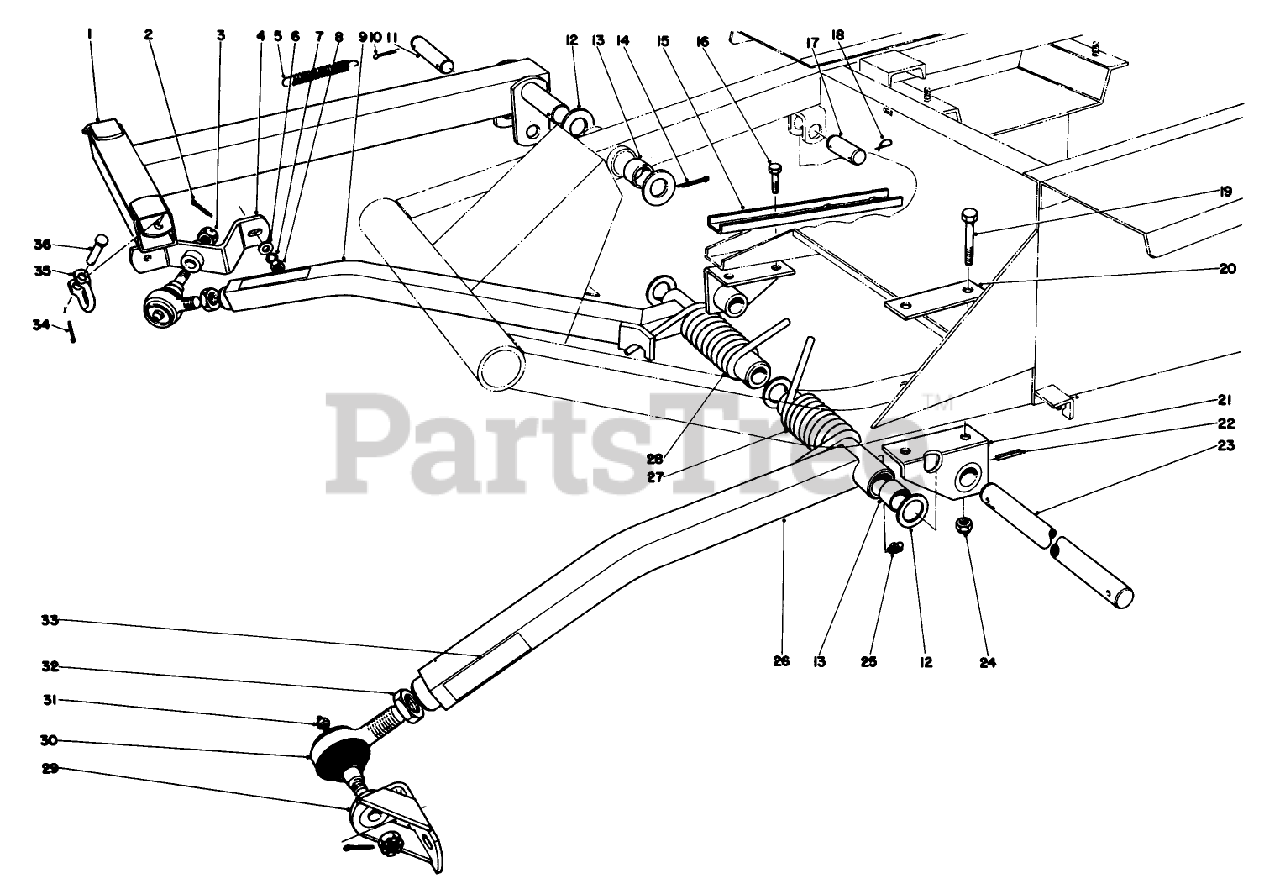

PUSH ARM ASSEMBLY Parts Diagram

  • Title
1

Toro 21-3100

Lift Arm
(Superseded to 66-6370)

$

$

Not available

2

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

3

Toro 32136-2

NUT-SHH

$4.49

$

Usually ships in 3-6 days

0

4

Toro 21-3020

Ball Joint Mount
(Superseded to 21-3020-01)

$

$

Not available

5

Toro 21-1830

SPRING-EXTENSION

$36.99

$

In Stock, only 1 left!

0

6

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

9

Toro 21-2910

Push Arm R.H. (Incl. Ref. #13 & 25)
(Superseded to 66-7150)

$

$

Not available

10

Toro 3272-24

PIN-COTTER

$

$

Not available

11

$

$

Not available

12

Toro 5-1754

WASHER-FLAT

$

$

Not available

13

Toro 256-126

BUSHING

$

$

Not available

14

Toro 3272-33

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

15

Toro 23-1950

Support Reinforcement
(Superseded to 23-1950-01)

$

$

Not available

16

Toro 324-5

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3-7292

PIN-CLEVIS

$

$

Not available

18

Toro 5-3126

PIN-LYNCH

$

$

Not available

19

Toro 324-12

SCREW-HH
(Superseded to 3241-7)

$3.99

$

In Stock, Qty 12

0

20

Toro 21-3750

SUPPORT PLT

$

$

Not available

21

Toro 21-2860

Bracket-Push Arm
(Superseded to 21-2860-01)

$

$

Not available

22

Toro 32121-84

PIN-SPIRAL

$1.99

$

Usually ships in 3-6 days

0

23

Toro 21-2990

SHAFT-PIVOT

$

$

Not available

24

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

25

Toro 302-33

FITTING-GREASE
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

26

Toro 21-2960

Push Arm L.H. (Incl. Ref. #13 & 25)

$

$

Not available

27

Toro 21-2900

Spring-Torsion LH
(Superseded to 21-2900-01)

$

$

Not available

28

Toro 21-2890

Spring-Torsion RH
(Superseded to 21-2890-01)

$

$

Not available

29

Toro 21-3050

LH BALL JOINT MT WA
(Superseded to 21-3050-01)

$

$

Not available

30

Toro 21-0160

Ball Joint
(Superseded to 86-8100-01)

$166.99

$

Usually ships in 3-6 days

0

31

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

32

Toro 21-3000

NUT-HJ
(Superseded to 21-3000-01)

$45.99

$

Usually ships in 3-6 days

0

33

Toro 36-4060

Decal Warning
(Superseded to 61-3610)

$

$

Not available

34

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

35

Toro 5-2942

SHACKLE

$

$

Not available

36

Toro 283-10

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0
