30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1978) MAIN FRAME Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

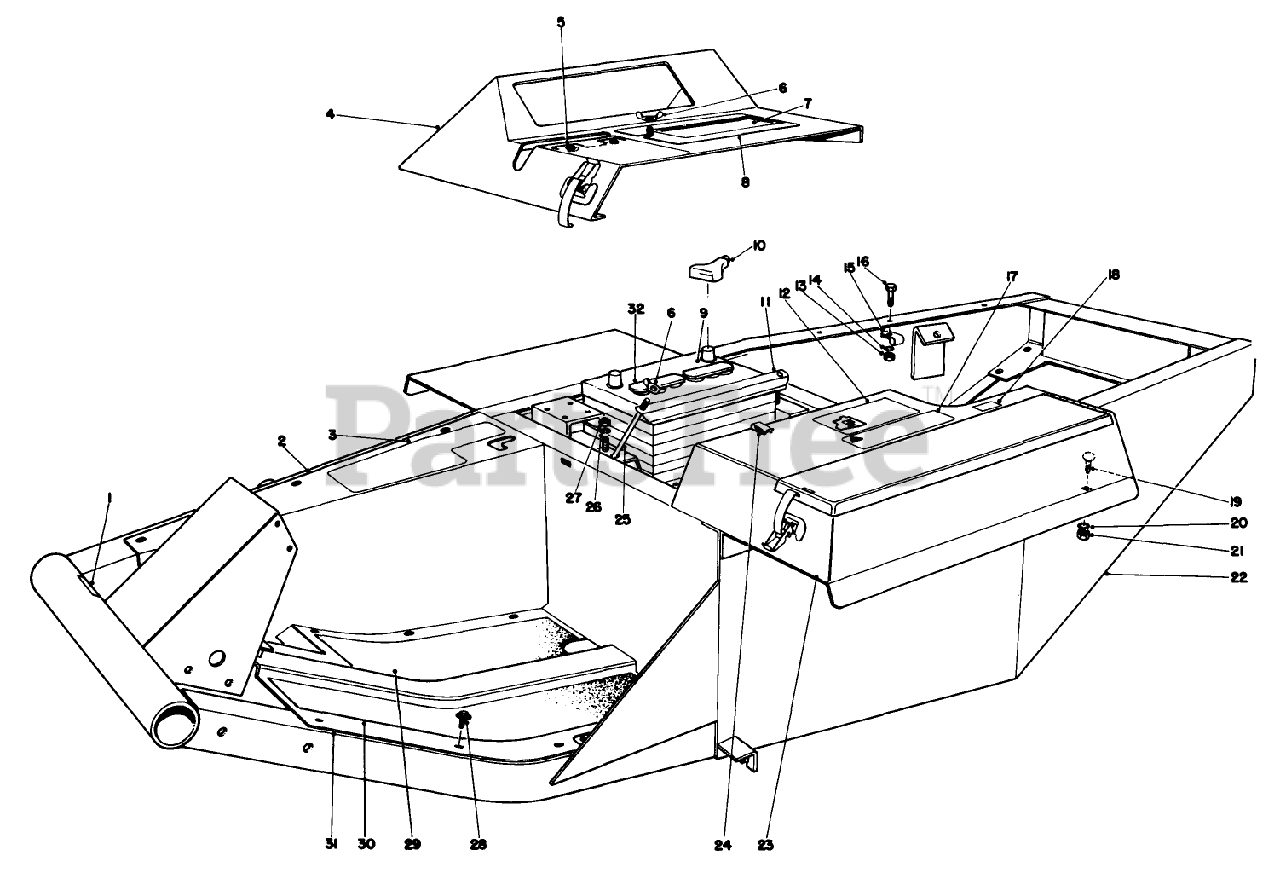

MAIN FRAME Parts Diagram

  • Title
1

Toro 27-7320

DECAL-PEDAL, TRACTION
(Superseded to 93-7836)

$18.99

$

Usually ships in 3-6 days

0

2

Toro 21-2660

Footrest
(Superseded to 21-2660-01)

$

$

Not available

3

Toro 27-7270

Decal Caution
(Superseded to 66-6390)

$

$

Not available

4

Toro 24-5670

Instrument Cover
(Superseded to 38-4550-03)

$

$

Not available

5

Toro 27-7290

DECAL-PTO

$

$

Not available

6

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

7

Toro 27-7280

Decal Starting Instructions
(Superseded to 92-7802)

$29.99

$

Usually ships in 3-6 days

0

8

Toro 24-9740

Cover Battery Access
(Superseded to 92-7800)

$

$

Not available

9

Toro 13-6480

Battery (Incl. Ref. #32)
(Superseded to 106-5190)

$

$

Not available

10

Toro 28-1280

BOOT-CABLE, BATTERY

$

$

Not available

11

Toro 24-6420

Battery Hold Down
(Superseded to 24-6420-03)

$105.99

$

In Stock, only 1 left!

0

12

Toro 27-7310

DECAL-REFUELING

$34.99

$

Usually ships in 3-6 days

0

13

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 2412-4

CLAMP-R

$5.49

$

Usually ships in 3-6 days

0

16

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

17

Toro 28-3290

Decal Caution
(Superseded to 67-1710)

$8.99

$

Usually ships in 3-6 days

0

18

Toro 18-7040

DECAL GAS

$

$

Not available

19

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 4 left!

0

20

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

21

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

22

Toro 28-0730

Frame

$

$

Not available

23

Toro 28-1610

Tool Box
(Superseded to 93-3183)

$

$

Not available

24

Toro 2412-61

TINNERMAN CLIP

$

$

Not available

25

Toro 24-6390

STUD-HOLDDOWN, BATTERY

$

$

Not available

26

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

27

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

28

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 9

0

29

Toro 21-2770

PAD-FLOOR PLATE, RH

$

$

Not available

30

Toro 21-2760

PAD-PLATE FLOOR, LH

$

$

Not available

31

Toro 23-5220

Floor Plate
(Superseded to 88-0070-01)

$

$

Not available

32

Toro 239-19

PUSH-ON BATTERY CAP

$

$

Currently unavailable
