30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1978) INSTRUMENT PANEL ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

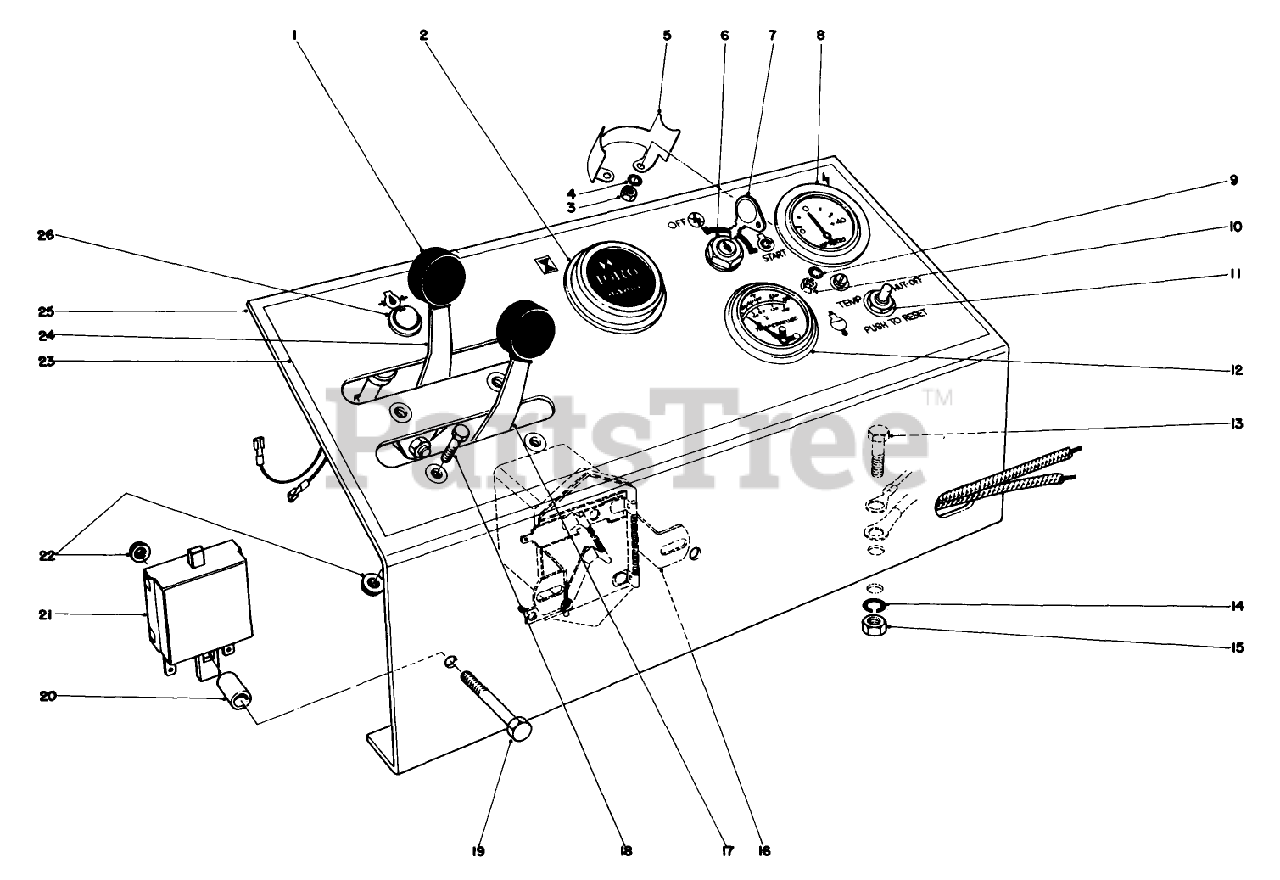

INSTRUMENT PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 233-35

KNOB

$9.99

$

Usually ships in 3-6 days

0

2

Toro 12-9990

HOUR METER
(Superseded to 66-2950)

$

$

Not available

3

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

4

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

5

Toro 26-4390

Clamp
(Superseded to 38-1670)

$

$

Not available

6

Toro 27-2360

SWITCH

$49.99

$

In Stock, only 1 left!

0

7

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

8

Toro 18-2190

Ammeter
(Superseded to 83-0820)

$

$

Not available

9

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3217-29

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11

Toro 26-6740

TEMP RESET RELAY

$

$

Not available

12

Toro 26-6750

ENG TEMP SWITCH GAGE

$

$

Not available

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

16

Regulator

$

$

Not available

17

Toro 28-1590

Throttle Control (Incl. Ref. #1)

$

$

Not available

18

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 20+

0

19

Toro 3290-360

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

20

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

21

Toro 22-7820

BUZZER ASM

$

$

Not available

22

Toro 32128-17

NUT-LOCK, FLANGE

$0.99

$

In Stock, Qty 17

0

23

Toro 26-6730

Decal-Instrument Panel
(Superseded to 70-2030)

$

$

Not available

24

Toro 28-1600

Choke Control (Incl. Ref. #1)

$

$

Not available

25

Toro 28-1580

INST PANEL B

$

$

Not available

26

Toro 21-9970

Warning Light

$

$

Not available
