30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 008000001 - 008999999) (1978) CUTTING UNIT CASTOR WHEEL AND GEAR BOX ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

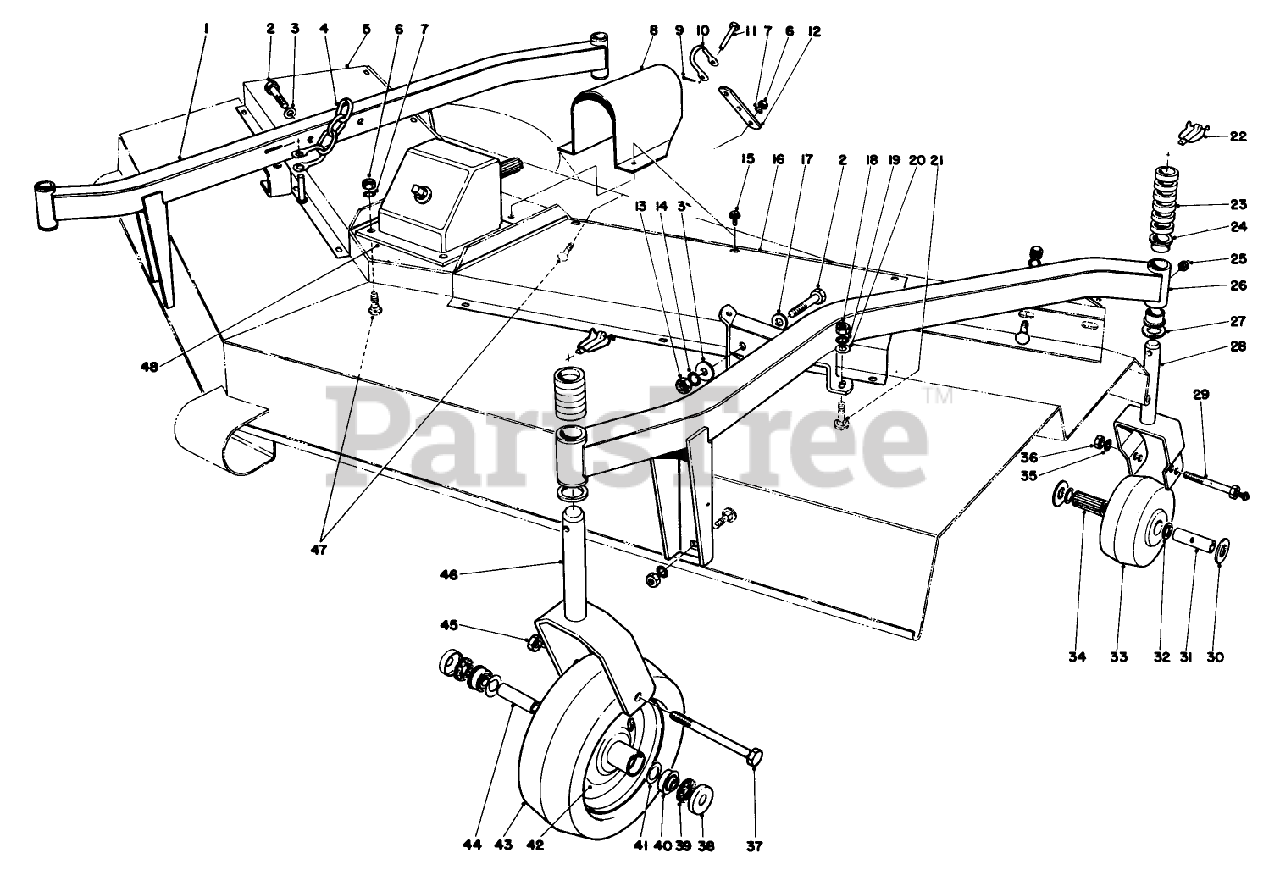

CUTTING UNIT CASTOR WHEEL AND GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 26-1490

Caster Arm R.H. (Incl. Ref. #24)

$

$

Not available

2

Toro 324-12

SCREW-HH
(Superseded to 3241-7)

$3.99

$

In Stock, only 2 left!

0

3

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

4

Toro 21-3160

Lift Chain
(Superseded to 3-1365)

$

$

Not available

5

Toro 26-1890

RH DECK COVER R

$

$

Not available

6

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

7

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

8

Toro 26-2250

Shroud Universal
(Superseded to 93-9838-03)

$

$

Not available

9

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

10

Toro 5-2842

Shackle

$

$

Currently unavailable

11

Toro 283-10

PIN-CLEVIS

$10.99

$

Usually ships in 3-6 days

0

12

Toro 21-3770

Lift Strap
(Superseded to 21-3770-01)

$

$

Not available

13

Toro 3217-8

NUT-HEX

$2.49

$

Usually ships in 3-6 days

0

14

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

15

Toro 32104-82

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

16

Toro 26-1900

LH DECK COVER R

$

$

Not available

17

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

19

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3233-1

SCREW-CARR

$8.49

$

Usually ships in 3-6 days

0

22

Toro 3290-384

PIN-LYNCH

$22.99

$

Usually ships in 3-6 days

0

23

Toro 26-1580

SPACER 1/2 IN

$

$

Not available

24

Toro 28-9290

Bushing
(Superseded to 94-1291)

$11.99

$

In Stock, Qty 10

0

25

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

26

Toro 26-1430

Caster Arm L.H. (Incl. Ref. #24)

$

$

Not available

27

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

28

Toro 26-1560

Caster Fork Rear
(Superseded to 99-5690)

$

$

Not available

29

Toro 21-3870

AXLE ASM

$

$

Not available

30

Toro 3256-44

WASHER-FLAT

$5.99

$

Usually ships in 3-6 days

0

31

Toro 21-1030

SPANNER BUSHING

$

$

Not available

32

Toro 21-3840

Bearing Retainer Seal

$

$

Not available

33

Toro 21-3860

WHEEL

$

$

Not available

34

Toro 21-3850

ROLLER BRG W/46-8960

$

$

Not available

35

Toro 3254-4

WASHER-LOCK/INT

$0.99

$

In Stock, only 1 left!

0

36

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

37

Toro 325-21

Screw
(Superseded to 325-22)

$8.49

$

In Stock, Qty 7

0

38

Toro 3-6778

AXLE SLINGER B

$2.99

$

Usually ships in 3-6 days

0

39

Toro 3-6777

WASHER

$2.99

$

Usually ships in 3-6 days

0

40

Toro 251-181

.500 RF BALL BEARING

$

$

Not available

41

Toro 3-6775

WASHER

$

$

Not available

42

Toro 3-0139

Castor Wheel & Tire (Incl. Ref. #43)

$

$

Not available

43

Toro 3-6774

Tire
(Superseded to 46-6230)

$

$

Not available

44

Toro 3-6776

SPACER

$

$

Not available

45

Toro 32146-13

NUT-HEX

$4.49

$

In Stock, only 4 left!

0

46

Toro 26-1530

Caster Fork
(Superseded to 26-1530-01)

$215.99

$

Usually ships in 3-6 days

0

47

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

48

Toro 8-0909

GEAR BOX ASM

$

$

Not available
