30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) STEERING GEAR ASEMBLY-33-4350 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

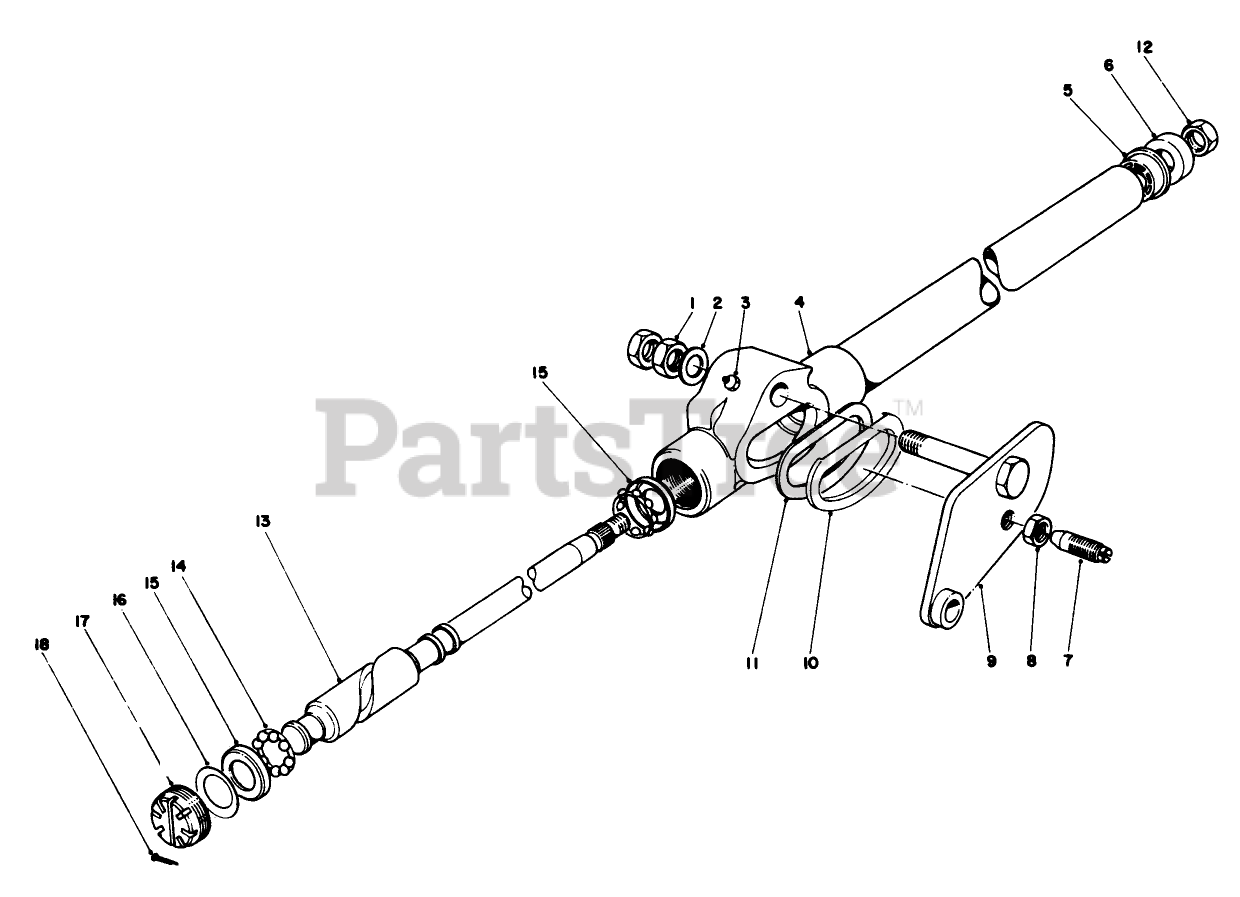

STEERING GEAR ASEMBLY-33-4350 Parts Diagram

  • Title
1

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

2

Toro 22-8310

Washer

$

$

Not available

3

Toro 302-16

ZERK FITTING

$

$

Not available

4

Toro 33-4430

Inner Tunnel

$

$

Not available

5

Toro 38-6300

BUSH & RETAINER ASM

$

$

Not available

6

Toro 21-9260

COVER-DUST

$8.99

$

Usually ships in 3-6 days

0

7

Toro 22-8300

LEVER STUD

$131.99

$

Usually ships in 3-6 days

0

8

Toro 3219-10

NUT-HEX

$

$

Not available

9

Toro 22-8280

LEVER & BOLT ASM

$

$

Not available

10

Toro 22-8470

SEAL RETAINING

$

$

Not available

11

$

$

Not available

12

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

13

Toro 21-9280

Cam & Tube Assembly

$

$

Not available

14

Toro 21-9170

RETAINER & BALL ASM

$

$

Not available

15

Toro 21-9160

BalI Cup

$

$

Not available

16

Toro 21-9150

WASHER-BELLEVILLE

$

$

Not available

17

Toro 21-9130

ADJUSTING PLUG

$

$

Not available

18

Toro 3272-9

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0
