30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) REAR AXLE & WHEEL ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

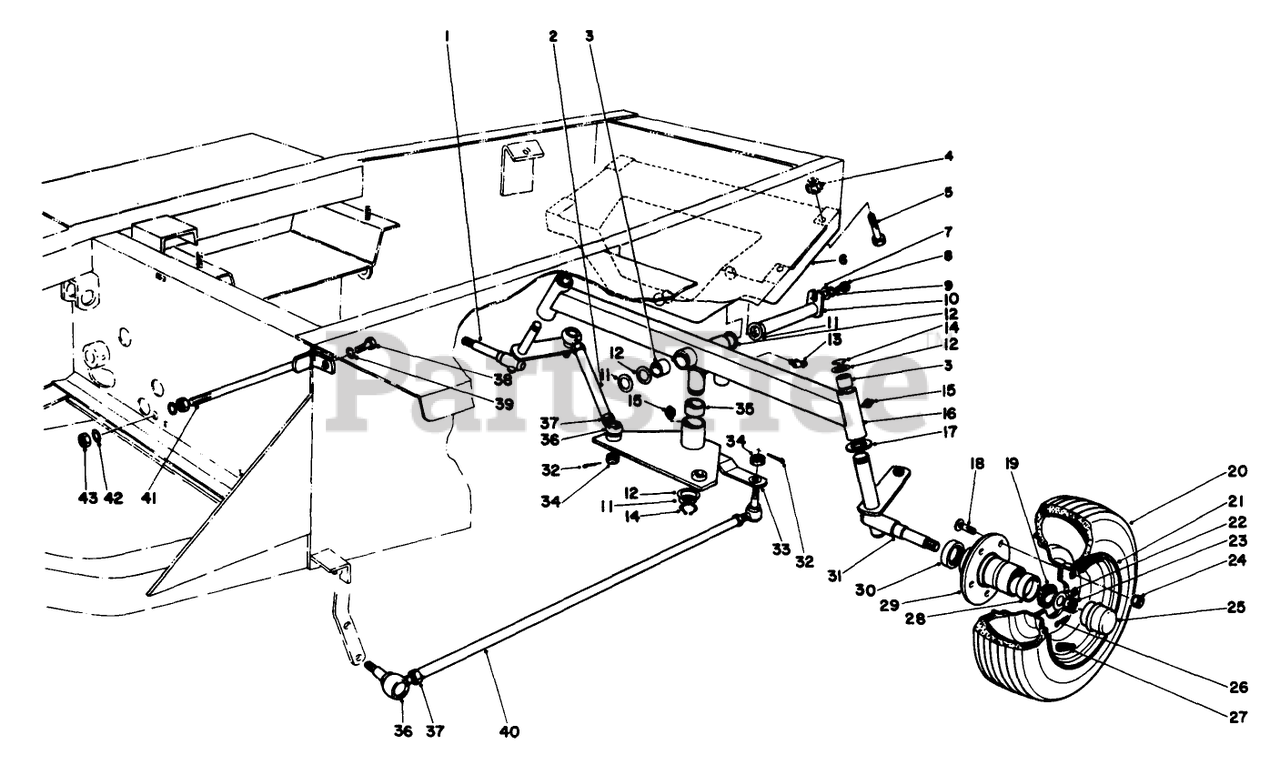

REAR AXLE & WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 39-8040

Spindle Assembly R.H.
(Superseded to 39-8040-03)

$

$

Not available

2

Toro 21-2000

TIE ROD-STEERING

$

$

Not available

3

Toro 3-0348

BUSHING
(Superseded to 125-5196)

$7.49

$

In Stock, Qty 16

0

4

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

5

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

6

Toro 23-1450

REAR AXLE MT R

$

$

Not available

7

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

10

Toro 23-1540

REAR AXLE PIN WA

$

$

Not available

11

Toro 56-2460

WASHER-FLAT

$4.49

$

Usually ships in 3-6 days

0

12

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, only 1 left!

0

13

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

14

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

15

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

16

Toro 33-2890

Rear Axle (Incl. Ref.#3)

$

$

Not available

17

Toro 256-121

WASHER-THRUST

$5.99

$

Usually ships in 3-6 days

0

18

Toro 10-6830

STUD-TYPE, DRIVE
(Superseded to 111512)

$

$

Not available

19

Toro 254-94

BEARING-CONE, TAPERED

$9.49

$

In Stock, Qty 18

0

20

Toro 231-105

TIRE-Ribbed

$76.99

$

Usually ships in 3-6 days

0

21

Toro 217-106

WHEEL-8 INCH

$

$

Not available

22

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

23

Toro 32136-5

NUT-HEX, SLOTTED

$7.99

$

Usually ships in 3-6 days

0

24

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

25

Toro 241-119

CAP-DUST

$13.99

$

In Stock, only 2 left!

0

26

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 9

0

27

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

28

Toro 254-72

BEARING-CUP, TAPERED

$10.99

$

In Stock, Qty 11

0

29

Toro 21-2820

Wheel Hub (Incl. Ref.#18 & 28)

$

$

Not available

30

Toro 253-129

SEAL

$23.99

$

Usually ships in 3-6 days

0

31

Toro 39-8050

Spindle Assembly L.H.
(Superseded to 39-8050-03)

$

$

Not available

32

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

33

Toro 46-8830

Rear Steering Pivot (Incl. Ref.#35)

$

$

Not available

34

Toro 321364

Jam Nut

$

$

Currently unavailable

35

Toro 256-242

BUSHING

$

$

Not available

36

Toro 214140

Socket R.H. Thread (Incl. Ref.#34)

$

$

Currently unavailable

Toro 21-0150

Socket L.H. Thread (Incl. Ref.#34)
(Superseded to 99-5687)

Note: Not illustrated

$152.99

$

Usually ships in 3-6 days

0

37

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

Toro 3220-12

NUT-HJ (LH THREAD)

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

38

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

39

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

40

Toro 21-2100

REAR STRG TUBE PP

$

$

Not available

41

Toro 24-9830

Axle Support
(Superseded to 24-9830-01)

$

$

Not available

42

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

43

Toro 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

Toro 231-91

TUBE

$199.99

$

Usually ships in 3-6 days

0
