30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) FRONT AXLE & FUEL TANK ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

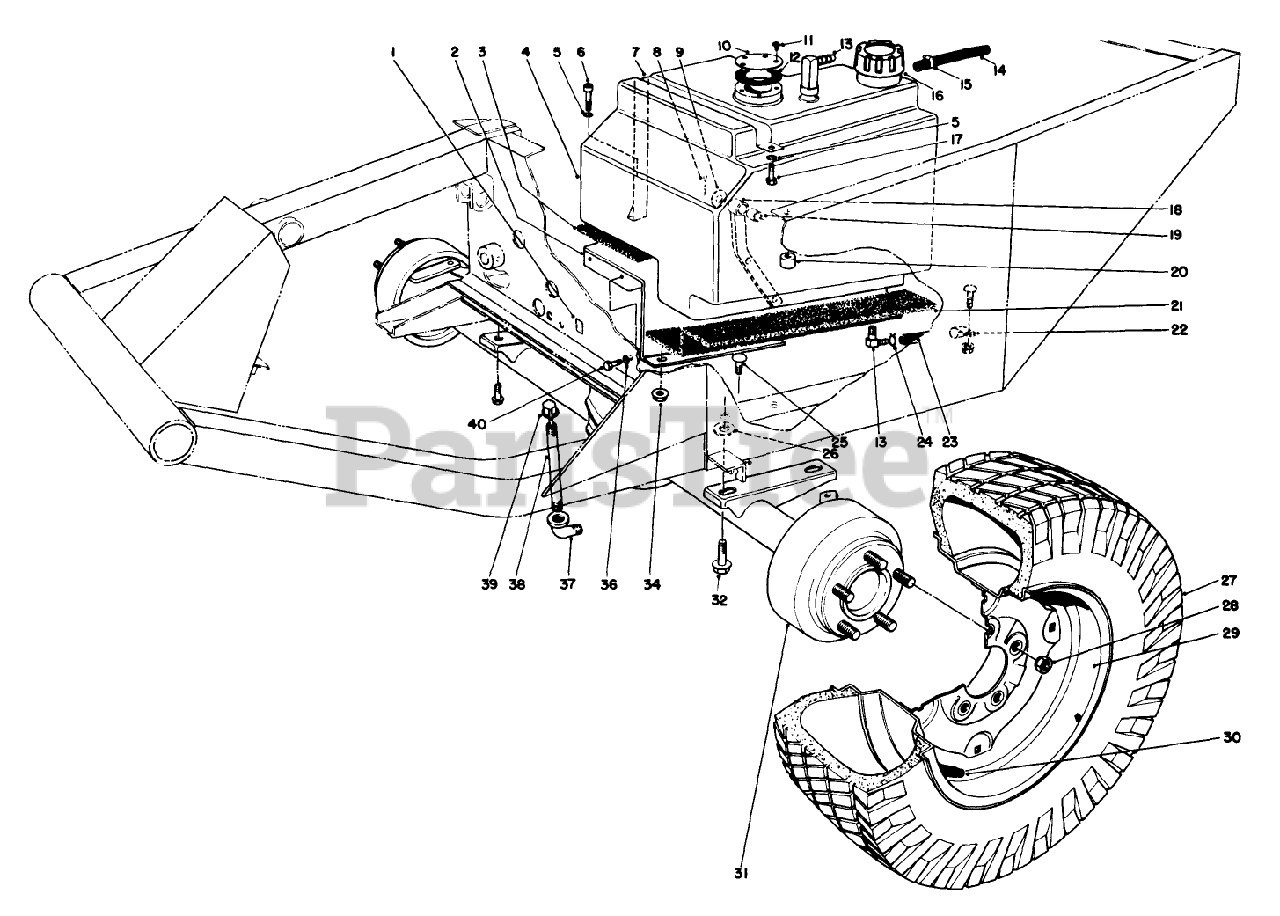

FRONT AXLE & FUEL TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 53-4430

DECAL-OIL

$10.99

$

Usually ships in 3-6 days

0

2

Toro 23-2100

GAS TANK BASE WA

$

$

Not available

3

Toro 21-3600

FOAM-SUPPORT, TANK

$

$

Not available

4

Toro 43-9110

Gas Tank (Incl. Ref.#13)

$

$

Not available

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 37-9550

STRAP-TANK, FUEL

$

$

Not available

8

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 7

0

9

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, Qty 12

0

10

Toro 43-9060

COVER FUEL TANK OPEN

$

$

Not available

11

Toro 32144-34

SCREW-HWHTF

$4.99

$

In Stock, Qty 20+

0

12

Toro 18-2380

Gasket
(Superseded to 62-7650)

$4.49

$

Usually ships in 3-6 days

0

13

Toro 353-536

FITTING-ELBOW, 90 DEG

$

$

Not available

14

Toro 37-9560

HOSE-FUEL
(Superseded to 108-3282)

$45.99

$

Usually ships in 3-6 days

0

15

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

16

Toro 55-3574

GAS CAP ASSEMBLY

$15.99

$

In Stock, only 2 left!

0

17

Toro 3214

Bolt

$

$

Currently unavailable

18

Toro 23-2080

Steering Link (Incl. Ref.#19)

$

$

Not available

19

Toro 256-237

BUSHING

$15.99

$

In Stock, only 3 left!

0

20

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

21

Toro 21-3610

FOAM-SUPPORT, TANK

$

$

Not available

22

Toro 2412-41

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

23

Toro 23-2140

HOSE-FUEL
(Superseded to 110-4100)

$29.99

$

Usually ships in 3-6 days

0

24

Toro 2412-6

CLAMP-HOSE

$

$

Not available

25

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 14

0

26

Toro 42-6080

SHIM-AXLE

$38.99

$

Usually ships in 3-6 days

0

27

$204.99

$

Usually ships in 3-6 days

0

28

Toro 23-7270

NUT-LUG

$12.99

$

In Stock, Qty 13

0

29

$

$

Not available

30

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

31

Toro 43-7630

AXLE WA RO

$

$

Not available

32

$

$

Not available

34

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

36

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

37

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

38

Toro 289-37

NIPPLE-PIPE

$

$

Not available

39

Toro 23-5180

DIPSTICK ASM

$

$

Not available

40

Toro 32104-6

SCREW-HH, TAP

$4.49

$

Usually ships in 3-6 days

0

Toro 231-90

TUBE

Note: Not illustrated

$

$

Not available
