30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) DELUXE SEAT KIT MODEL NO.30786 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

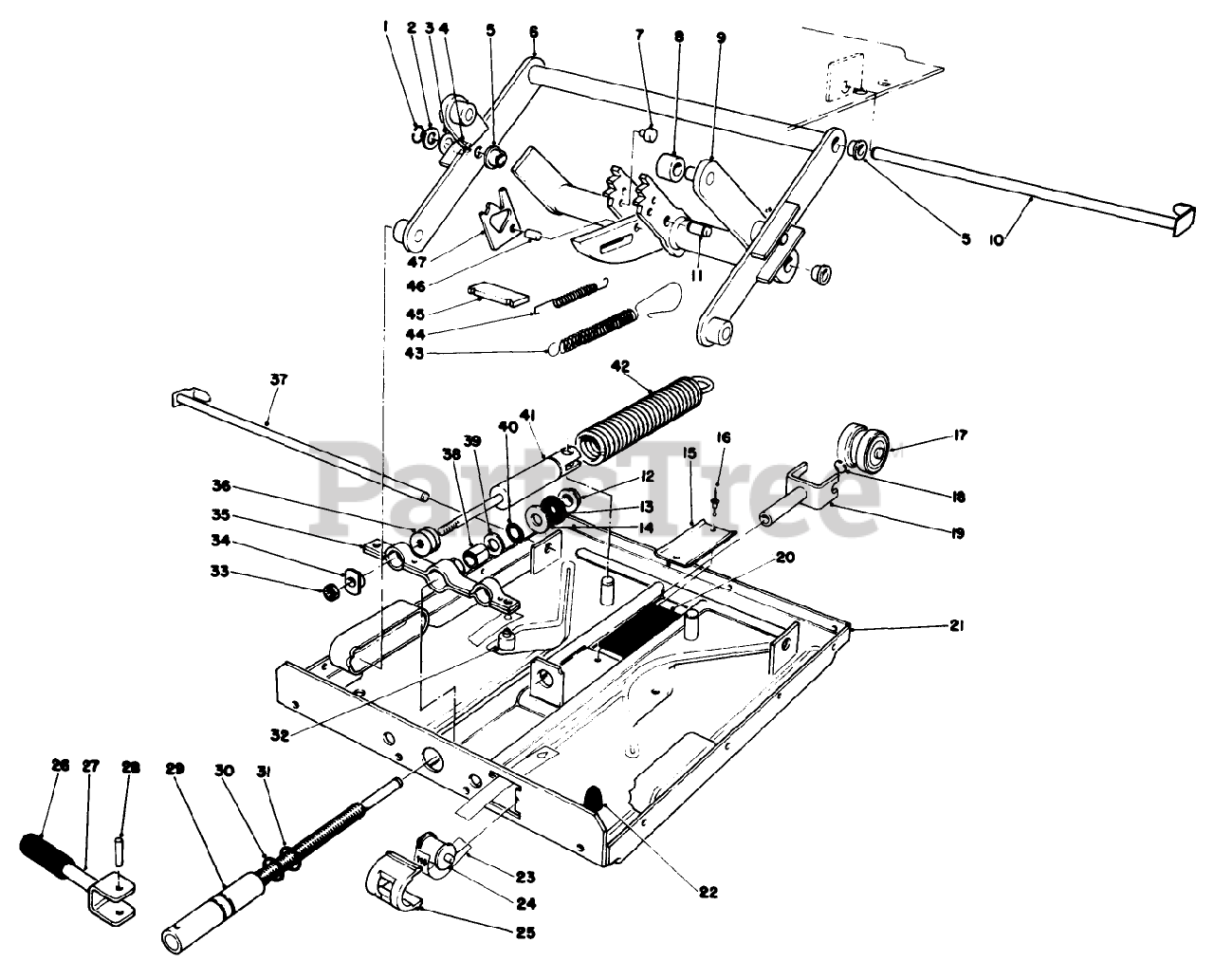

DELUXE SEAT KIT MODEL NO.30786 Parts Diagram

  • Title

1

Toro 40-3950

WASHER

$3.49

$

Usually ships in 3-6 days

0

2

Toro 39-9500

WASHER

$

$

Not available

3

Toro 40-3960

WASHER

$

$

Not available

4

Toro 40-3970

BRG BSHG

$

$

Not available

5

Toro 40-3980

BEARING

$

$

Not available

6

Toro 40-3990

Swing Arm-Outside
(Superseded to 40-4020)

$

$

Not available

7

Toro 40-4000

BOLT

$

$

Not available

8

Toro 40-4010

ROLLER

$12.99

$

Usually ships in 3-6 days

0

9

Toro 40-4020

Frame Bag

$

$

Not available

10

Toro 40-4030

PIN

$

$

Not available

11

Toro 40-4040

Grooved Locking Pin 08X16CM

$

$

Not available

12

Toro 40-4050

SLEEVE

$

$

Not available

13

Toro 40-4060

WASHER-RUBBER

$

$

Not available

14

Toro 40-4070

WASHER
(Superseded to 1-613235)

$1.99

$

In Stock, Qty 5

0

15

Toro 40-4080

U-TRACK

$18.99

$

Usually ships in 3-6 days

0

16

Toro 40-4090

RIVET

$

$

Not available

17

Toro 40-4100

TRIBLE BRG

$

$

Not available

18

Toro 39-9310

RET RING

$

$

Not available

19

Toro 40-4110

FORK

$

$

Not available

20

Toro 40-4120

RUBBER

$6.49

$

Usually ships in 3-6 days

0

21

Toro 404130

Lower Suspension Plate-Complete (Incl. Ref.#15-16 & 20)

$

$

Currently unavailable

22

Toro 39-9520

BUMPER

$

$

Not available

23

Toro 40-4140

WEIGHT INDICATOR BAND

$

$

Not available

24

Toro 40-4150

ROLLER

$

$

Not available

25

Toro 40-4160

GUIDE-SLEEVE

$

$

Not available

26

Toro 40-4170

HANDLE

$

$

Not available

27

Toro 40-4180

TOGGLE

$47.99

$

Usually ships in 3-6 days

0

28

Toro 40-4190

GROOVED PIN

$

$

Not available

29

Toro 40-4200

PIN

$

$

Not available

30

Toro 40-4210

RUBBER RING 14MM BLK

$

$

Not available

31

Toro 40-4220

RUBBER RING 14MM RED

$

$

Not available

32

Toro 40-4230

PLUG

$

$

Not available

33

Toro 40-4240

NUT

$

$

Not available

34

Toro 40-4250

WELD NUT

$

$

Not available

35

Toro 40-4260

Spring Bracket

$

$

Not available

36

Toro 40-4270

THREADED ROD

$

$

Not available

37

Toro 404280

Pin

$

$

Currently unavailable

38

Toro 404290

Sleeve 14X 1X 19MM

$

$

Currently unavailable

39

Toro 40-4300

WASHER

$

$

Not available

40

Toro 40-4310

BEARING-THRUST, NEEDLE

$

$

Not available

41

Toro 40-4320

SHOCK ABSORBER

$197.99

$

Usually ships in 3-6 days

0

42

Toro 40-4330

COIL SPRING

$

$

Not available

43

Toro 40-4340

SPRING-COIL

$

$

Not available

44

Toro 40-4350

SPRING-COIL

$7.99

$

Usually ships in 3-6 days

0

45

Toro 40-4360

PLATE

$

$

Not available

46

Toro 40-4370

BOLT

$1.49

$

Usually ships in 3-6 days

0

47

Toro 40-4380

BRACKET-RELEASE

$

$

Not available
