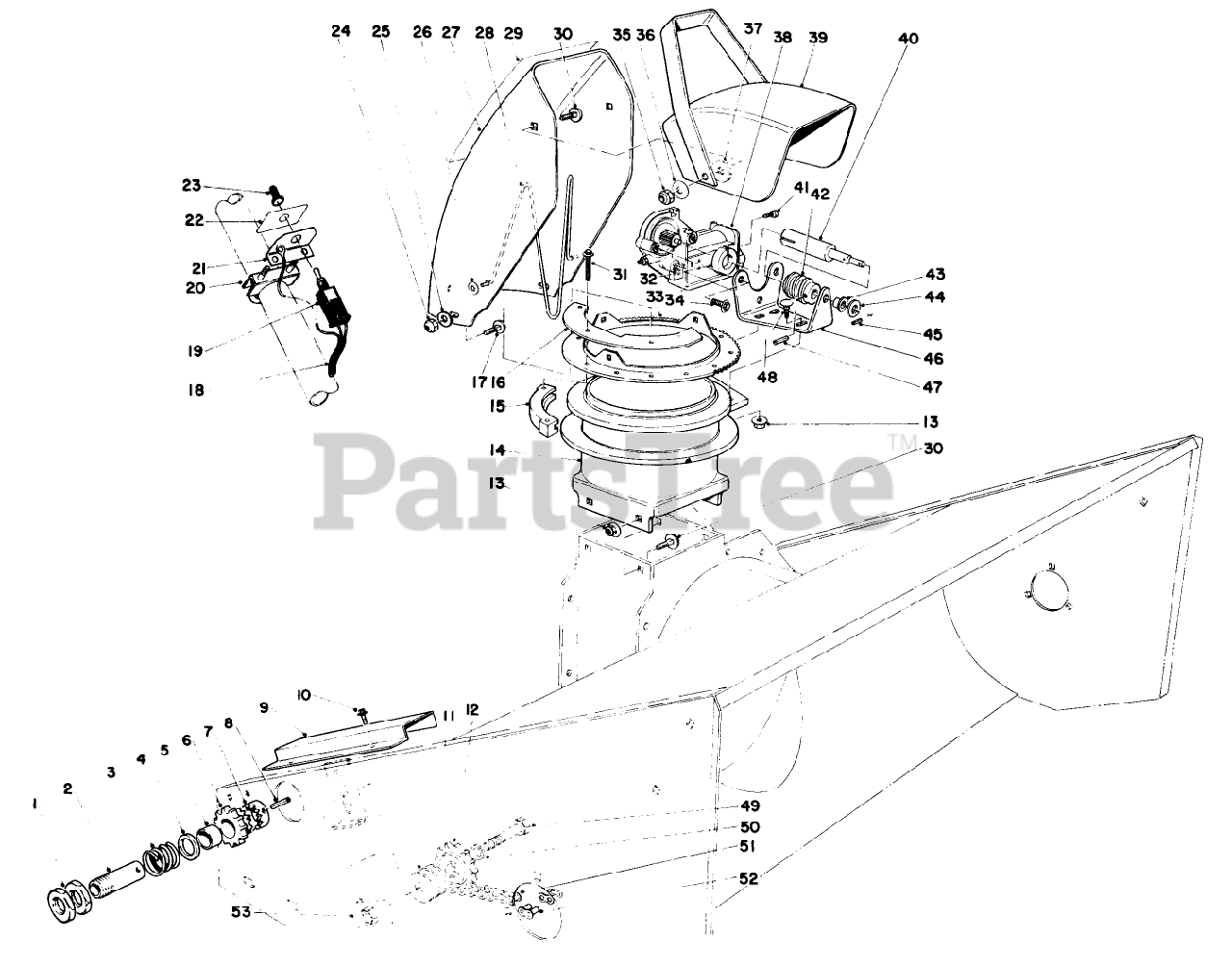

30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 007000001 - 007999999) (1987) 48" SNOWTHROWER MODEL NO.30570 (OPTIONAL) Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

48" SNOWTHROWER MODEL NO.30570 (OPTIONAL) Parts Diagram

  • Title

1

Toro 37-5720

THIN NUT

$40.99

$

Usually ships in 3-6 days

0

2

Toro 37-5700

CLUTCH SLEEVE

$

$

Not available

3

Toro 37-5710

COMP. SPRING

$

$

Not available

6

Toro 37-5680

CLUTCH SPROCKET

$

$

Not available

7

Toro 37-5690

CLUTCH COLLAR

$

$

Not available

8

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

9

Toro 32-1620

Chain Cover

$

$

Not available

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

12

Toro 30-0090

IDLER SPRKT (60016)

$220.99

$

Usually ships in 3-6 days

0

13

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

14

Toro 39-4870

Chute Transition

$

$

Not available

15

Toro 25-5450

RETAINER-CHUTE

$37.99

$

In Stock, only 2 left!

0

16

Toro 39-4900

Stop-Chute Rotator

$

$

Not available

17

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

18

Toro 39-4990

WIRE HARNESS

$

$

Not available

19

Toro 6-1659

Toggle Switch (Incl. Ref.#23)

$83.99

$

Usually ships in 3-6 days

0

20

Toro 2112-9

CLAMP

Note: Included in Adapter Kit Model No.30571.

$9.99

$

Usually ships in 3-6 days

0

21

Toggle Switch Mount

$

$

Not available

22

Toro 39-4970

DECAL

$

$

Not available

23

Toro 218-473

BOOT-SWITCH

$21.99

$

Usually ships in 3-6 days

0

24

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

27

Toro 25-5440

Upper Chute
(Superseded to 92-6335-01)

$222.99

$

Usually ships in 3-6 days

0

28

Toro 12-2040

WIRE-CHUTE

$

$

Not available

29

Toro 29-6350

Decal-Warning
(Superseded to 54-9910)

$

$

Not available

30

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, Qty 10

0

31

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

32

Toro 39-4940

SPLIT COLLAR

$

$

Not available

33

Toro 39-4890

RING - CHUTE SWIVEL

$

$

Not available

34

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

35

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

36

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

37

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 5

0

38

Toro 39-4920

ELEC GEAR MOTOR

$

$

Not available

39

Toro 11-7120

Deflector
(Superseded to 11-7120-01)

$120.99

$

Usually ships in 3-6 days

0

40

Toro 39-4930

WORM GEAR SHAFT

$

$

Not available

41

Toro 3274-26

SCREW-HSH

$2.49

$

Usually ships in 3-6 days

0

42

Toro 8-8600

GEAR-WORM, CHUTE

$137.99

$

Usually ships in 3-6 days

0

43

Toro 256-255

FLANGE BSHG #FF-310-3

$

$

Not available

44

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 32121-20

3/32 X 9/16 ROLL PIN

$0.99

$

Usually ships in 3-6 days

0

46

Toro 39-4910

Motor Mount

$

$

Not available

47

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

48

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

49

Toro 327-6

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

50

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

51

Toro 30-0160

ROLLER CHAIN (60023)

$

$

Not available

52

Toro 2710-11

LINK-CHAIN

$6.49

$

In Stock, only 1 left!

0

53

Toro 30-0450

NUT PLATE WA (60095)

$

$

Not available

Toro 37-5640

Slip Clutch (Incl. Ref.#1-8)

Note: Not illustrated

$

$

Not available

Toro 39-4950

Toggle Switch Assembly (Incl. Ref.#19 & 21-23)

Note: Not illustrated

$

$

Not available
