30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

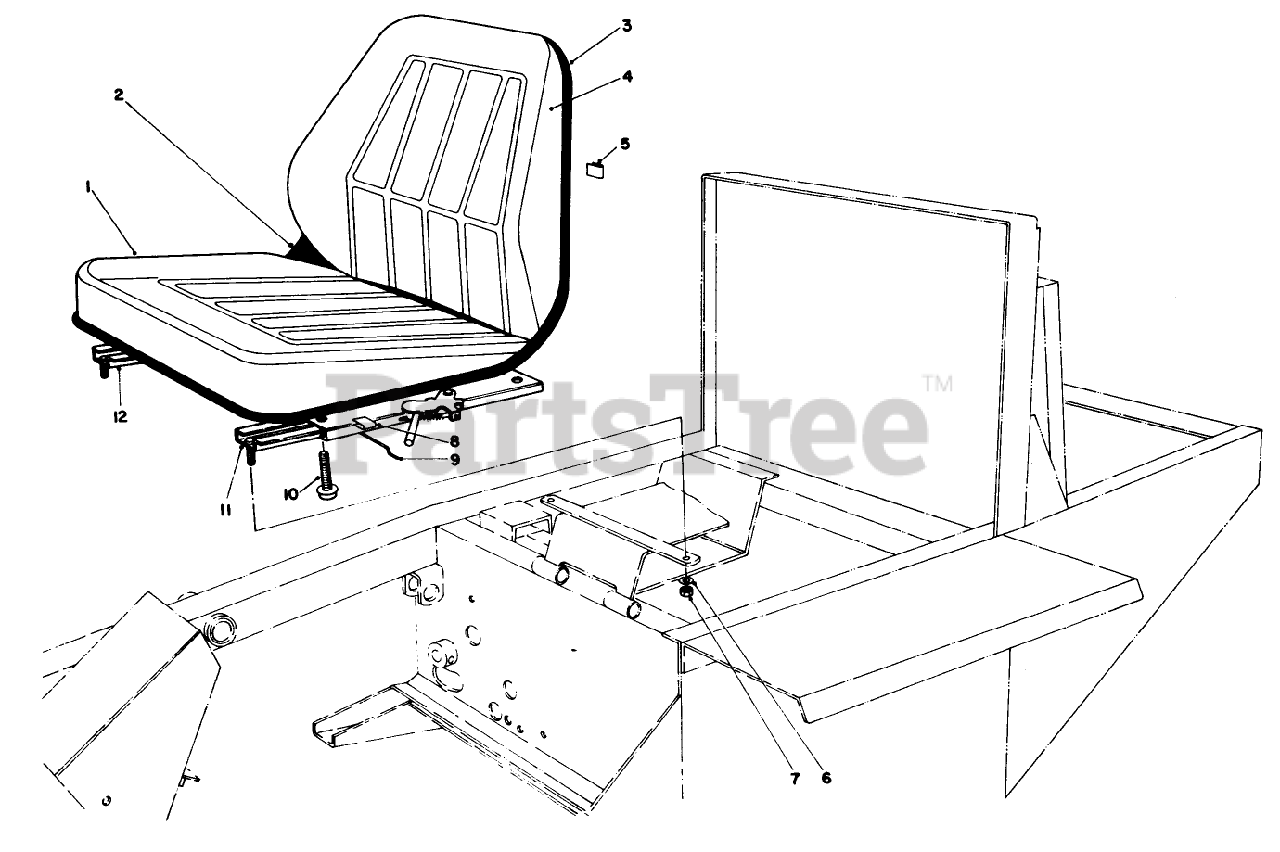

STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

  • Title

1

Toro 351-76

Seat-Cushion (Incl. Ref. #5 & 8)
(Superseded to 104-4620)

$

$

Not available

2

Toro 351-77

Shell
(Superseded to 92-6534)

$

$

Not available

3

Toro 351-78

EDGING

$

$

Not available

4

Toro 351-75

Backrest (Incl. Ref. #5 & 8)

$

$

Not available

5

Toro 351-79

CLIP

$

$

Not available

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

8

Toro 351-80

CLIP

$11.99

$

Usually ships in 3-6 days

0

9

Toro 524890

Connecting Rod

$

$

Currently unavailable

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

11

Toro 51-0790

ADJUSTER-SEAT, LH

$130.99

$

Usually ships in 3-6 days

0

12

Toro 52-4880

ADJUSTER-SEAT, RH

$

$

Not available

Toro 49-8130

Seat Assembly (Incl. Ref. #1-5 & 8)
(Superseded to 104-4620)

Note: Not illustrated

$

$

Not available
