30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 005000001 - 005999999) (1985) AIR CLEANER ASSEMBLY 27-7090 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

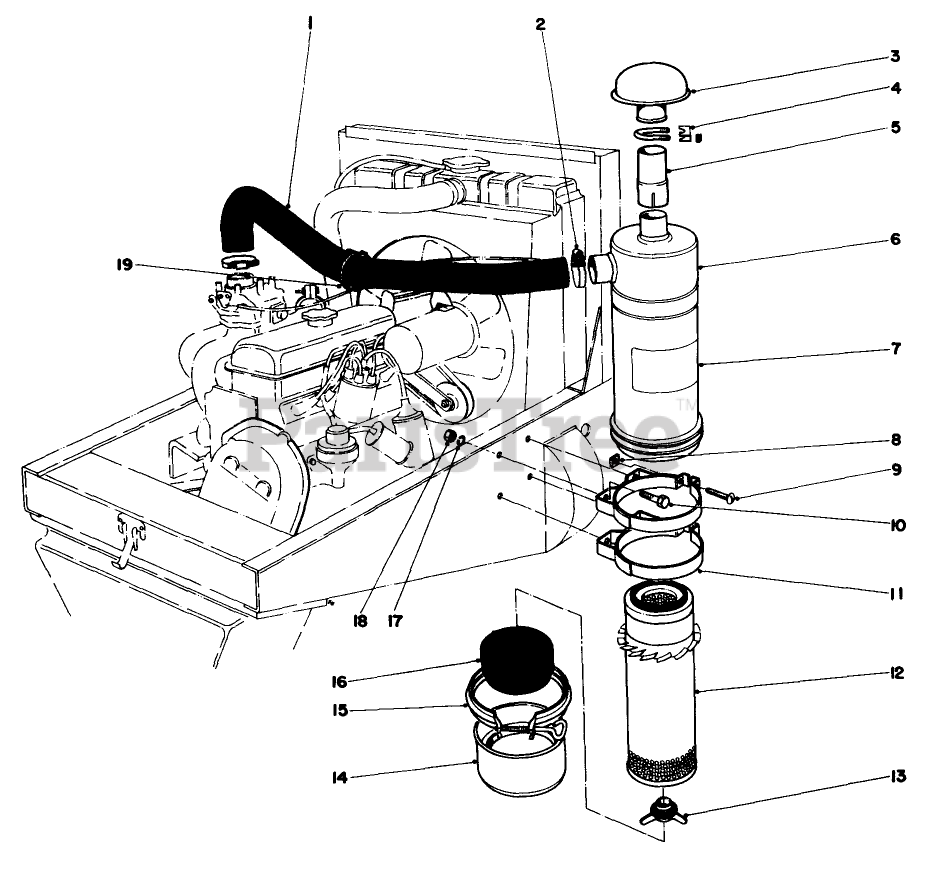

AIR CLEANER ASSEMBLY 27-7090 Parts Diagram

  • Title

1

Toro 27-7200

AIR CLEANER HOSE

$122.99

$

Usually ships in 3-6 days

0

2

Toro 2412-42

CLAMP-HOSE

$10.99

$

Usually ships in 3-6 days

0

3

Toro 27-7180

CAP

$78.99

$

Usually ships in 3-6 days

0

4

Toro 20-4840

CLAMP-MUFFLER

$19.99

$

Usually ships in 3-6 days

0

5

Toro 44-8950

Tube-Air Cleaner
(Superseded to 44-8950-03)

$

$

Not available

6

Toro 27-7100

Air Cleaner Assembly (Incl. Ref. #7 & 12-16)

$451.99

$

Usually ships in 3-6 days

0

7

Toro 27-7160

DECAL-INSTALLATION

$

$

Not available

8

Toro 32107-11

NUT-SQUARE

$

$

Not available

9

Toro 3258-19

SCREW

$0.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 27-7170

Band Assembly Mounting (Incl. Ref. #8 & 9)

$

$

Not available

12

Toro 27-7110

ELEMENT ASM
(Superseded to 108-3833)

$35.99

$

In Stock, only 1 left!

0

13

Toro 27-7120

NUT AND GASKET ASM

$

$

Not available

14

Toro 27-7150

A/C CUP ASM

$100.99

$

Usually ships in 3-6 days

0

15

Toro 27-7130

CLAMP ASM

$55.99

$

Usually ships in 3-6 days

0

16

Toro 27-7140

SKIRT-BAFFLE

$116.99

$

Usually ships in 3-6 days

0

17

Toro 32534

Lockwasher

$

$

Currently unavailable

18

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

19

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

Toro 27-7220

CLEANER FILTER

Note: Not illustrated

$

$

Not available
