30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

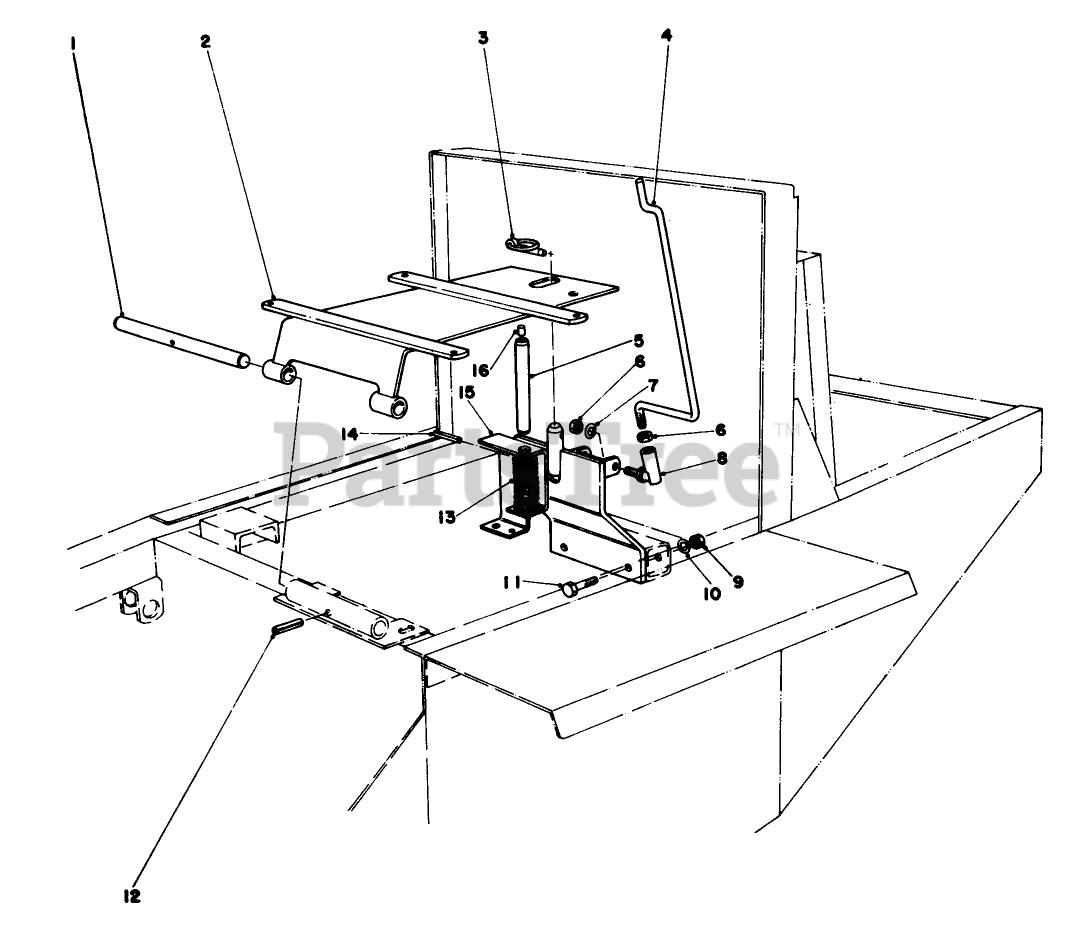

STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

  • Title

1

Toro 27-4720

SHAFT-PIVOT, SEAT

$

$

Not available

2

Toro 36-7550

SEAT SUPT WA R

$

$

Not available

3

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

4

Toro 37-9580

PROP SEAT

$

$

Not available

5

Toro 27-9870

PIN-SWITCH, SEAT

$41.99

$

Usually ships in 3-6 days

0

6

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

7

Toro 3253-24

WASHER-LOCK/SP

$0.99

$

Usually ships in 3-6 days

0

8

Toro 37-9570

Ball Joint
(Superseded to 2411-33)

$26.99

$

Usually ships in 3-6 days

0

9

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

12

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

13

Toro 28-0570

SPRING-COMPRESSION

$

$

Not available

14

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

15

Toro 27-9830

Bracket-Seat Support
(Superseded to 71-4490)

$

$

Not available

16

Toro 28-6180

PIN-PEDAL

$

$

Not available
