30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 004000001 - 004999999) (1984) STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

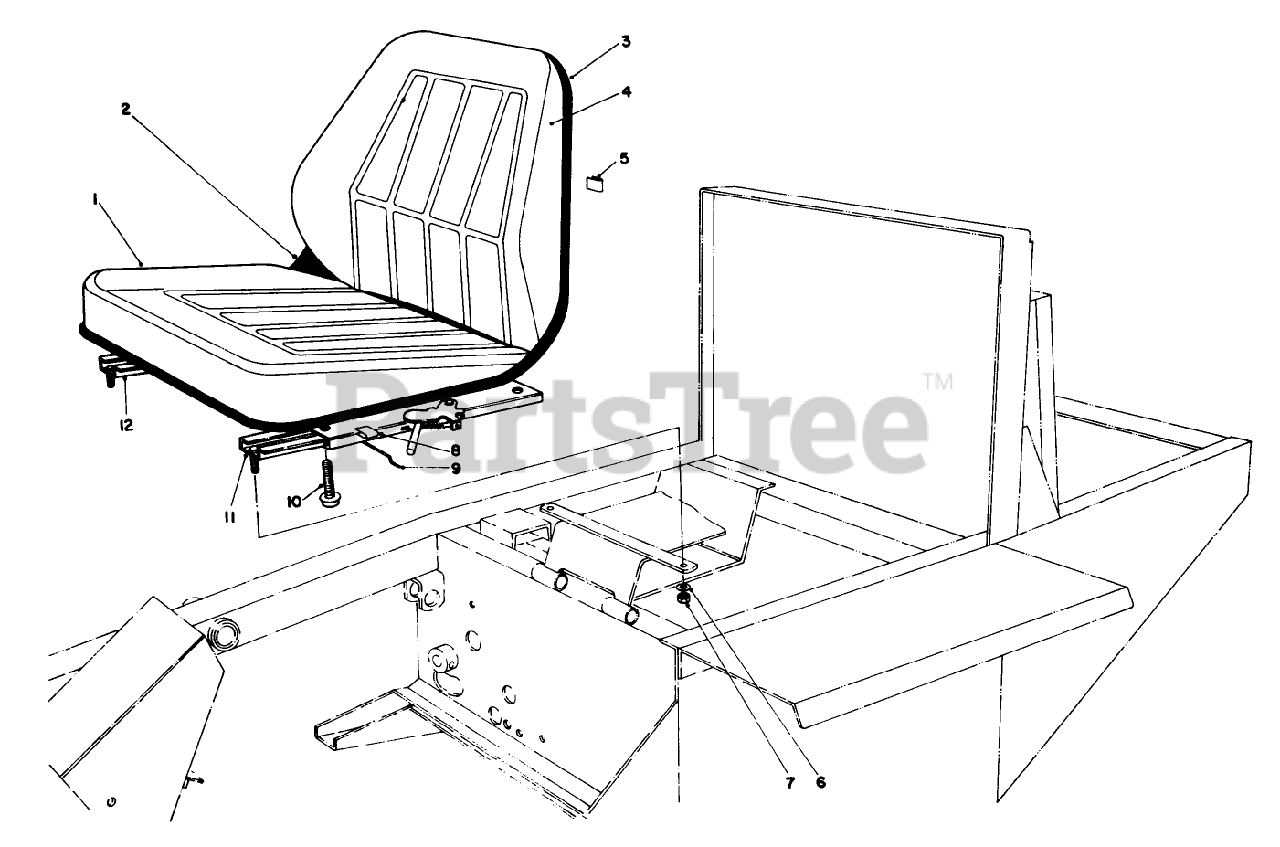

STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

  • Title
1

Toro 351-76

Seat-Cushion (Incl. Ref. #5 & 8)
(Superseded to 104-4620)

$

$

Not available

2

Toro 351-77

Shell
(Superseded to 92-6534)

$

$

Not available

3

Toro 351-78

EDGING

$

$

Not available

4

Toro 351-75

Backrest (Incl. Ref. #5 & 8)

$

$

Not available

5

$

$

Not available

6

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

8

$11.99

$

Usually ships in 3-6 days

0

9

Toro 351-61

Connecting Rod
(Superseded to 52-4890)

$

$

Not available

10

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

11

Toro 351-63

Adjuster L.H.
(Superseded to 51-0790)

$130.99

$

Usually ships in 3-6 days

0

12

Toro 351-62

Adjuster R.H.
(Superseded to 52-4880)

$

$

Not available

Toro 49-8130

Seat Assembly (Incl. Ref. #1-5 & 8)
(Superseded to 104-4620)

Note: Not illustrated

$

$

Not available
