30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 003000001 - 003999999) (1983) RADIATOR & HOOD ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

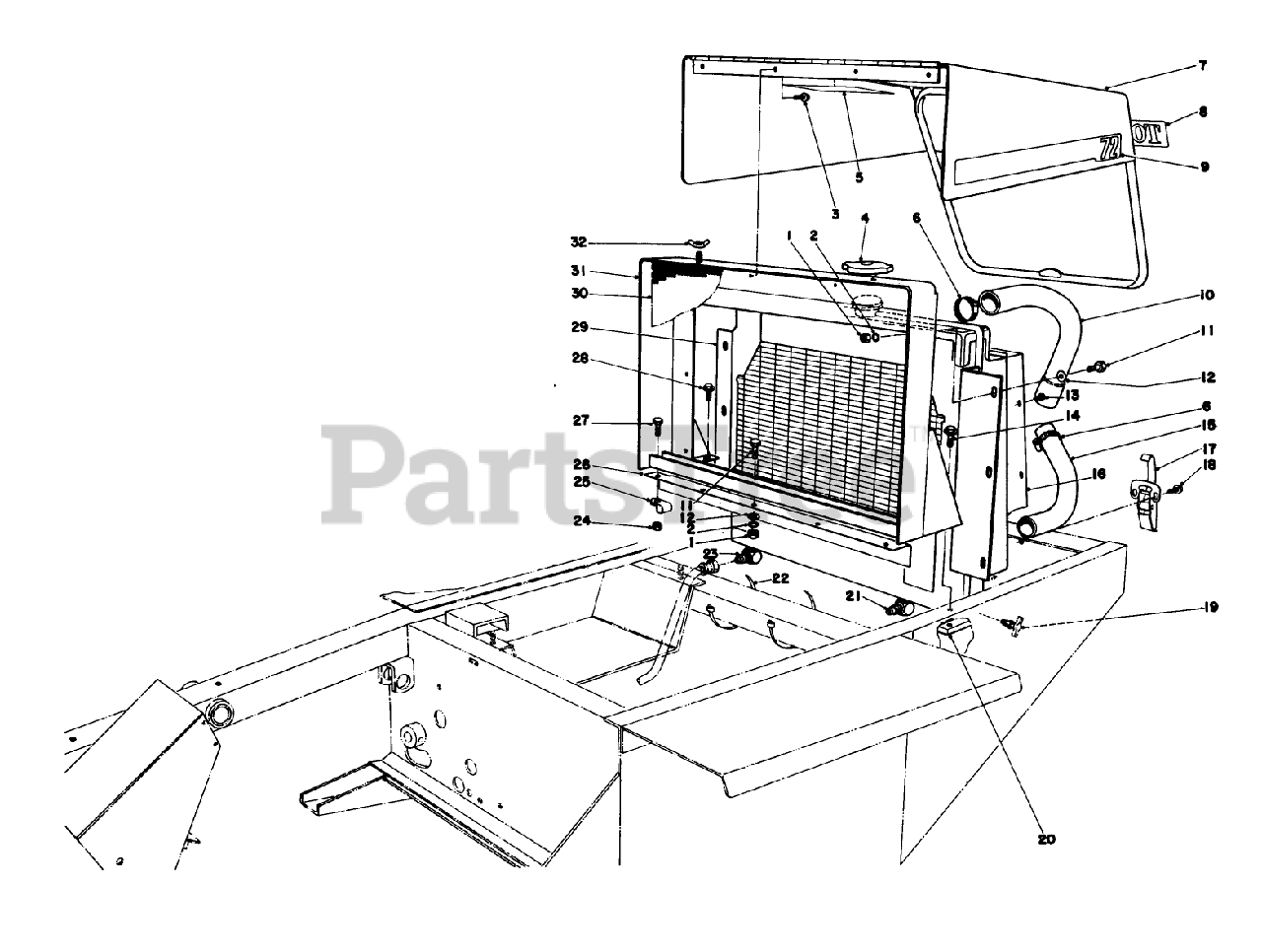

RADIATOR & HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

2

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

4

Toro 18-2660

RAD PRESS CAP ASM

$

$

Not available

5

Toro 26-7530

Decal
(Superseded to 82-8970)

$

$

Not available

6

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

7

Toro 23-2150

Hood
(Superseded to 11-6429)

$

$

Not available

8

Toro 18-2180

Decal
(Superseded to 66-6140)

$27.99

$

In Stock, only 3 left!

0

9

Toro 27-3220

DECAL

$

$

Not available

10

Toro 26-9890

UPPER HOSE

$

$

Not available

11

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

14

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

15

Toro 26-9900

LOWER HOSE

$

$

Not available

16

Toro 33-2580

Radiator Shroud

$

$

Not available

17

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

18

Toro 32140-43

10-24 X 1/2 SEMS SCR

$

$

Not available

19

Toro 304-46

DRAINCOCK

$8.49

$

Usually ships in 3-6 days

0

20

Toro 38-4600

LH FRAME BAR

$

$

Not available

21

Toro 353-548

ELBOW

$

$

Not available

22

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

23

Toro 42-6290

ELBOW

$

$

Not available

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

26

Toro 23-1760

Sealing Plate Grill

$

$

Not available

27

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

29

Toro 33-2570

RADIATOR ASM

$

$

Not available

30

Toro 23-1770

GRILLE WA R

$

$

Not available

31

Toro 23-1700

Radiator Support

$

$

Not available

32

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0
