30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) RADIATOR & HOOD ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

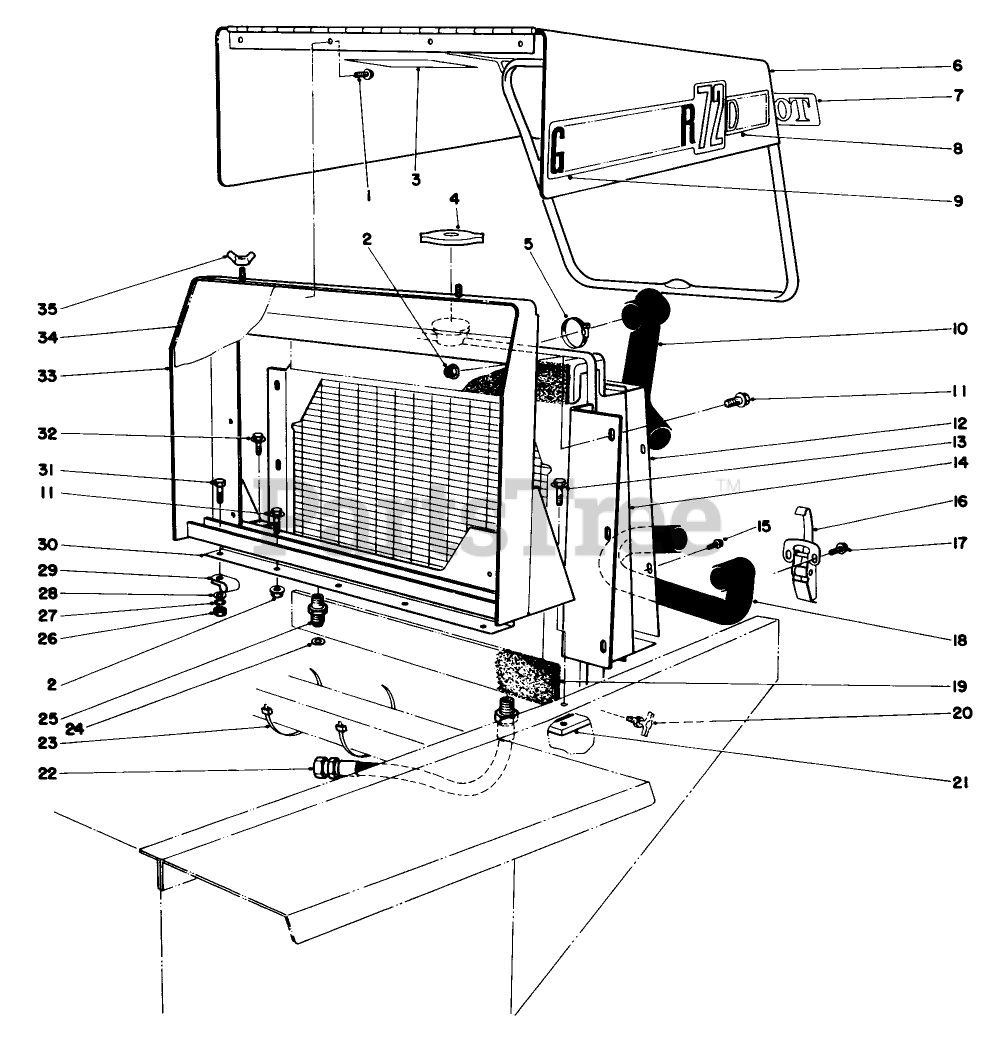

RADIATOR & HOOD ASSEMBLY Parts Diagram

  • Title
1

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

2

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Toro 26-7530

Decal
(Superseded to 82-8970)

$

$

Not available

4

Toro 18-2660

RAD PRESS CAP ASM

$

$

Not available

5

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

6

$

$

Currently unavailable

7

Toro 43-9020

Decal Toro
(Superseded to 66-6140)

$27.99

$

In Stock, only 3 left!

0

8

Toro 43-9030

Decal-Diesel

$

$

Not available

9

Toro 43-9140

GM-72 DECAL

$

$

Not available

10

Toro 43-3350

UPPER RADIATOR HOSE

$

$

Not available

11

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

12

Toro 43-3330

Radiator Shroud
(Superseded to 43-3330-03)

$

$

Not available

13

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

14

Toro 43-3390

RADIATOR SUPT WA R

$

$

Not available

15

Toro 32104-116

SCREW-THD FRM,HWH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

17

Toro 32140-43

10-24 X 1/2 SEMS SCR

$

$

Not available

18

Toro 43-7020

LOWER RADIATOR HOSE

$111.99

$

In Stock, only 2 left!

0

19

Toro 43-3320

FOAM-RADIATOR

$

$

Not available

20

Toro 304-46

DRAINCOCK

$8.49

$

Usually ships in 3-6 days

0

21

Toro 38-4600

LH FRAME BAR

$

$

Not available

22

Toro 43-4320

COOLER TO PUMP HOSE

$

$

Not available

23

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

24

Toro 41-9100

WASHER SPECIAL

$

$

Not available

25

Toro 353-782

HYD TUBE FITTING

$

$

Not available

26

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

29

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

30

Toro 43-3340

Grille-Sealing Plate
(Superseded to 43-3340-03)

$

$

Not available

31

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

32

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

33

Toro 33-2570

RADIATOR ASM

$

$

Not available

34

Toro 43-3410

Grille
(Superseded to 67-9030-03)

$

$

Not available

35

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0
