30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) POWER TAKE OFF ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

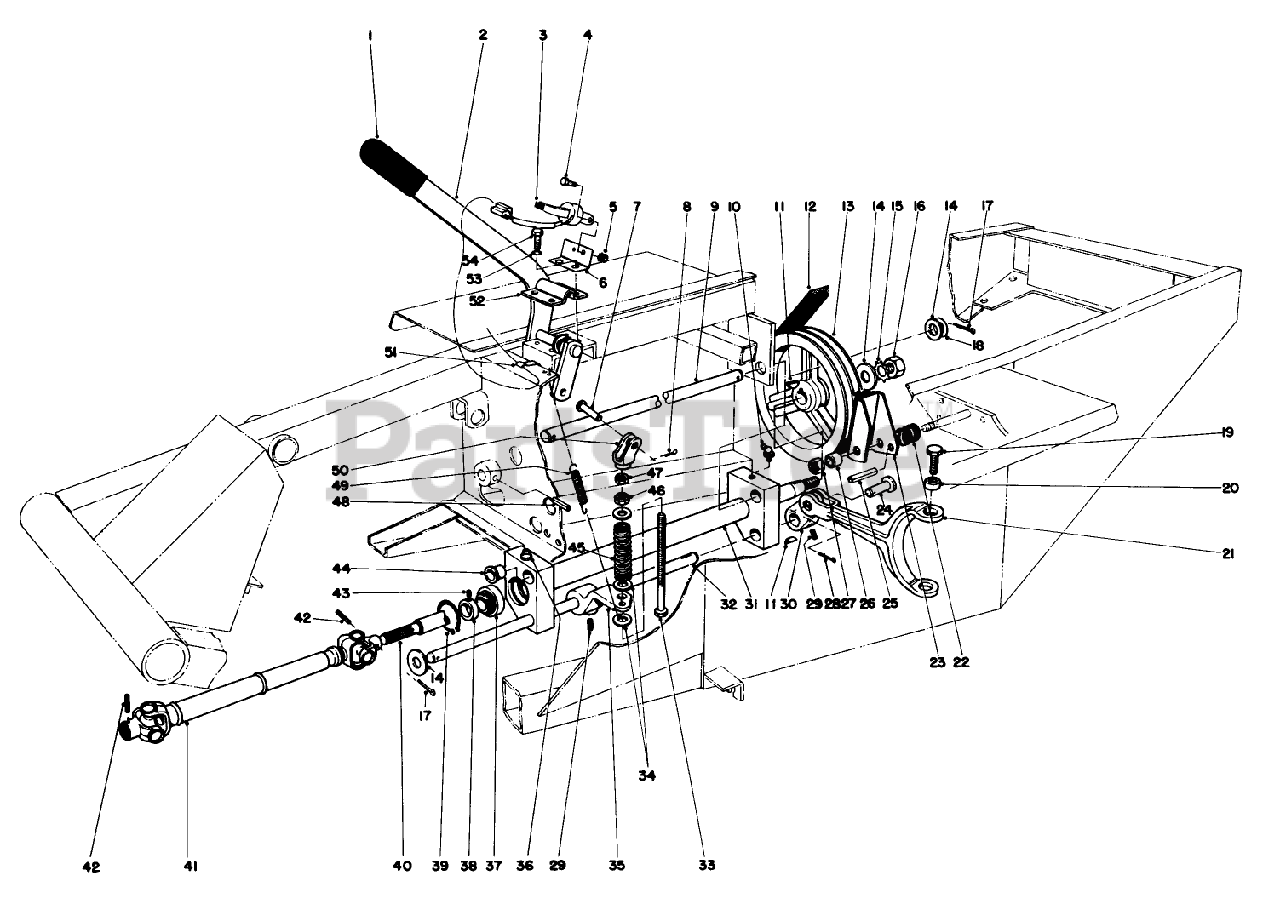

POWER TAKE OFF ASSEMBLY Parts Diagram

  • Title

1

Toro 21-1880

GRIP-HANDLE

$13.99

$

Usually ships in 3-6 days

0

2

Toro 21-1550

Lever P.T.O.
(Superseded to 84-8500-01)

$

$

Not available

3

Toro 29-6930

SWITCH ARM

$

$

Not available

4

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 27-7260

SWITCH ARM MT

$

$

Not available

7

Toro 28342

Clevis Pin

$

$

Currently unavailable

8

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

9

Toro 43-3860

SHAFT-PIVOT, PTO

$

$

Not available

10

Toro 302-10

FITTING-GREASE

$3.99

$

Usually ships in 3-6 days

0

11

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, Qty 20+

0

12

Toro 23-1820

V-Belt
(Superseded to 106-4383)

$

$

Not available

13

Toro 21-0230

PULLEY-PTO

$

$

Not available

14

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

15

Toro 3254-7

WASHER-LOCK, INT

$6.49

$

Usually ships in 3-6 days

0

16

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

17

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

18

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

19

Toro 30-2120

BOLT 60368
(Superseded to 3235-22)

$2.99

$

In Stock, only 2 left!

0

20

Toro 43-3800

BUSHING PTO FORK

$

$

Not available

21

Toro 43-5610

FORK PTO B

$

$

Not available

22

Toro 5-1747

SPRING-ADJUSTMENT

$

$

Not available

23

Toro 27-7370

PTO BRAKE ASM

$

$

Not available

24

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

In Stock, Qty 5

0

25

Toro 32121-49

PIN-ROLL

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3-8812

SPACER-SPRING, ANCHOR

$

$

Not available

27

Toro 3296-28

NUT-LOCK, NI

$1.99

$

In Stock, only 3 left!

0

28

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

29

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

30

Toro 43-5590

PTO ARM

$

$

Not available

31

Toro 43-5500

Pivot-PTO
(Superseded to 100-6599)

$

$

Not available

32

Toro 43-5550

SHAFT-ACTUATOR, PTO

$

$

Not available

33

Toro 27-7900

SCREW-ADJUSTING

$26.99

$

Usually ships in 3-6 days

0

34

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

35

Toro 43-5570

ARM-ACTUATOR
(Superseded to 43-5570-01)

$

$

Not available

36

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

37

Toro 251-252

Ball Bearing (Incl. Ref. #38 & 43)

$

$

Not available

38

Toro 251-234

Lock Collar (Incl. Ref. #43)

$

$

Not available

39

Toro 32120-22

RING-SNAP, INTERNAL

$3.49

$

Usually ships in 3-6 days

0

40

Toro 43-5540

SHAFT-PTO

$

$

Not available

41

Toro 21-3090

Universal Joint
(Superseded to 100-6564)

$

$

Not available

42

Toro 32121-34

PIN-ROLL

$3.99

$

In Stock, Qty 14

0

43

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 3 left!

0

44

Toro 256-113

BUSHING-FLANGE

$6.99

$

Usually ships in 3-6 days

0

45

Toro 21-0400

SPRING-COMPRESSION
(Superseded to 21-0400-01)

$22.99

$

Usually ships in 3-6 days

0

46

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

47

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

48

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

49

Toro 21-1830

SPRING-EXTENSION

$36.99

$

In Stock, only 1 left!

0

50

Toro 43-5630

YOKE-PTO

$

$

Not available

51

Toro 212-93

CLAMP-CASING

$4.99

$

Usually ships in 3-6 days

0

52

Toro 21-1600

CLAMP-LEVER, PTO

$

$

Not available

53

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

54

Toro 32104-6

SCREW-HH, TAP

$4.49

$

Usually ships in 3-6 days

0
