30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) MAIN FRAME Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

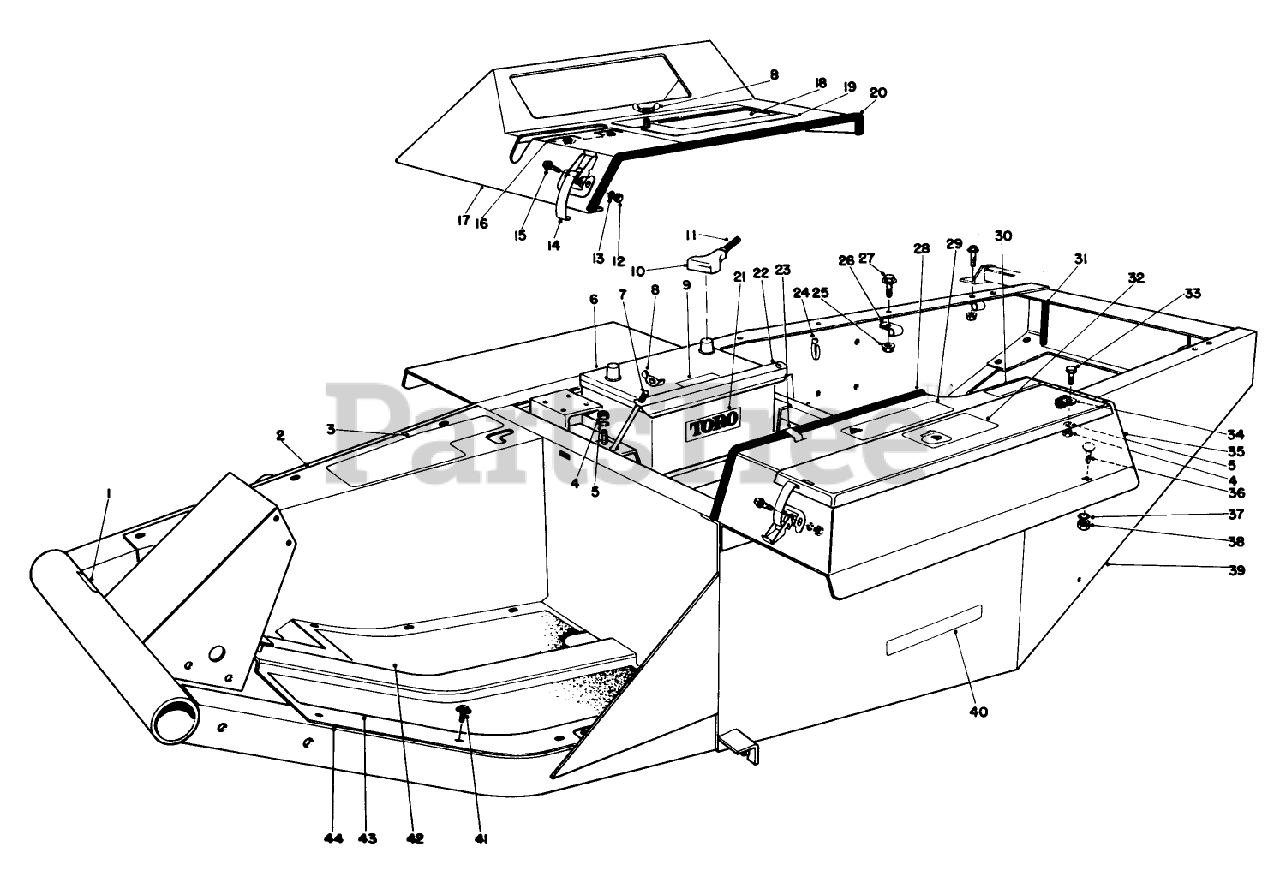

MAIN FRAME Parts Diagram

  • Title

1

Toro 27-7320

DECAL-PEDAL, TRACTION
(Superseded to 93-7836)

$

$

Not available

2

Toro 21-2660

Footrest
(Superseded to 21-2660-01)

$

$

Not available

3

Toro 27-7270

Decal Caution
(Superseded to 66-6390)

$

$

Not available

4

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

5

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 43-4240

Battery (Incl. Ref. #9 & 21)

$

$

Currently unavailable

7

Toro 24-6390

STUD-HOLDDOWN, BATTERY

$

$

Not available

8

Toro 32103-2

NUT-WING

$0.99

$

In Stock, only 2 left!

0

9

Decal

$

$

Not available

10

Toro 28-1280

BOOT-CABLE, BATTERY

$

$

Not available

11

Toro 434030

Cable-Battery Positive (Incl. Ref. #10)

$

$

Currently unavailable

12

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

13

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

14

Toro 249-21

CLAMP-SLOTTED

$20.99

$

Usually ships in 3-6 days

0

15

Toro 3290-144

SCREW-SHWH

$0.99

$

Usually ships in 3-6 days

0

16

Toro 27-7290

DECAL-PTO

$

$

Not available

17

Toro 38-4550

Cover-Instrument
(Superseded to 38-4550-03)

$

$

Not available

18

Toro 43-4290

Decal-Instructions Start.
(Superseded to 92-7802)

$29.99

$

Usually ships in 3-6 days

0

19

Toro 24-9740

Cover Battery Access
(Superseded to 92-7800)

$

$

Not available

20

Toro 39-8020

TRIM-COVER, INSTRUMENT

$

$

Not available

21

Decal

$

$

Not available

22

Toro 24-6420

Battery Hold Down
(Superseded to 24-6420-03)

$111.99

$

In Stock, only 1 left!

0

23

Toro 2412-61

TINNERMAN CLIP

$

$

Not available

24

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

25

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

26

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

27

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

28

Toro 37-9650

TRIM-BOX, TOOL

$

$

Not available

29

Toro 28-3290

Decal Caution
(Superseded to 67-1710)

$8.99

$

Usually ships in 3-6 days

0

30

Toro 43-5890

Decal-Diesel Fuel
(Superseded to 52-1320)

$22.99

$

Usually ships in 3-6 days

0

31

Toro 43-4300

TRIM-FRAME, REAR

$16.99

$

Usually ships in 3-6 days

0

32

Toro 27-7310

DECAL-REFUELING

$34.99

$

Usually ships in 3-6 days

0

33

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

34

Toro 2412-74

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

35

Toro 38-4530

Box-Tool
(Superseded to 93-3183)

$

$

Not available

36

Toro 3229-10

SCREW-CARR

$1.49

$

In Stock, only 3 left!

0

37

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, only 3 left!

0

39

Toro 43-3250

Frame
(Superseded to 62-3090)

$

$

Not available

40

Toro 36-8000

Decal Torque
(Superseded to 93-7830)

$

$

Not available

41

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, only 2 left!

0

42

Toro 21-2770

PAD-FLOOR PLATE, RH

$

$

Not available

43

Toro 21-2760

PAD-PLATE FLOOR, LH

$

$

Not available

44

Toro 23-5220

Floor Plate
(Superseded to 88-0070-01)

$

$

Not available
