30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) HYDROSTATIC TRANSMISSION Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

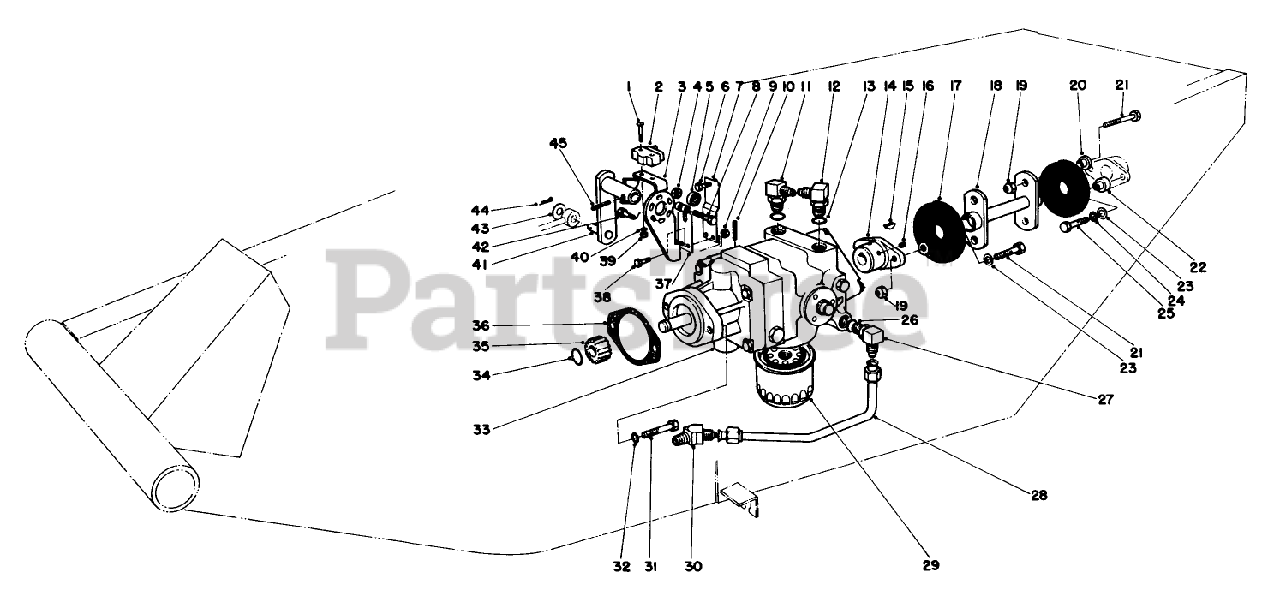

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 3249-11

SCREW-MACHINE

$0.99

$

Usually ships in 3-6 days

0

2

Toro 29-6160

Micro Switch
(Superseded to 29-6163)

$110.99

$

Usually ships in 3-6 days

0

3

Toro 29-6120

Plate-Pump
(Superseded to 29-6120-03)

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 251-259

BEARING-BALL

$16.99

$

In Stock, only 4 left!

0

6

Toro 3210-7

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 29-6170

EXTENDED LEAF SPRING ASM

$51.99

$

Usually ships in 3-6 days

0

8

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

10

Toro 32121-6

PIN-ROLL, SLOTTED

$0.99

$

In Stock, only 1 left!

0

11

Toro 353-511

FITTING-HYD, 90 DEG

$38.99

$

Usually ships in 3-6 days

0

12

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

13

Toro 23742

0-Ring

$

$

Currently unavailable

14

Toro 33-4380

HUB-PUMP
(Superseded to 110-9695)

$66.99

$

In Stock, only 3 left!

0

15

Toro 3257-32

KEY-WOODRUFF

$2.99

$

In Stock, Qty 11

0

16

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, only 4 left!

0

17

Toro 27-6560

Coupling Rubber
(Superseded to 115-4523)

$56.99

$

In Stock, Qty 20+

0

18

Toro 43-3940

Drive Coupling
(Superseded to 46-6390-03)

$

$

Not available

19

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

20

Toro 27-6600

SPACER-COUPLING
(Superseded to 125-9249)

$2.99

$

In Stock, only 3 left!

0

21

Toro 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

22

Toro 27-6590

SPACER-COUPLING, RUBBER

$16.99

$

Usually ships in 3-6 days

0

23

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 32534

Lockwasher

$

$

Currently unavailable

25

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

26

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

27

Toro 353-370

FITTING-ELBOW, 90 DEG

$78.99

$

Usually ships in 3-6 days

0

28

Toro 23-1900

AXLE-PUMP TUBE ASM

$

$

Not available

29

Toro 23-2300

FILTER-OIL, TRANSMISSION

$13.99

$

In Stock, only 2 left!

0

30

Toro 353-535

45 DEG FITTING

$

$

Not available

31

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

33

Toro 22-4760

Transmission-Inline
(Superseded to 92-8902)

$

$

Not available

34

Toro 32120-72

Ring-Snap

$2.49

$

In Stock, only 2 left!

0

35

Toro 23-4810

Gear
(Superseded to 86-7220)

$110.99

$

Usually ships in 3-6 days

0

36

Toro 41-8760

GASKET

$

$

Not available

37

Toro 29-6150

SPRING-LEAF
(Superseded to 110-9650)

$45.99

$

Usually ships in 3-6 days

0

38

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

39

Toro 3217-16

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

40

Toro 3254-9

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

41

Toro 28-9570

Lever-Pump
(Superseded to 28-9570-03)

$

$

Not available

42

Toro 32104-42

1/4-20 X 3/4 THDG SCR
(Superseded to 32104-95)

$0.99

$

Usually ships in 3-6 days

0

43

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

44

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

45

Toro 32121-24

PIN-SPRING

$1.99

$

Usually ships in 3-6 days

0
