30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) FUEL INJECTION PUMP ASSEMBLY NO. 42-8000 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

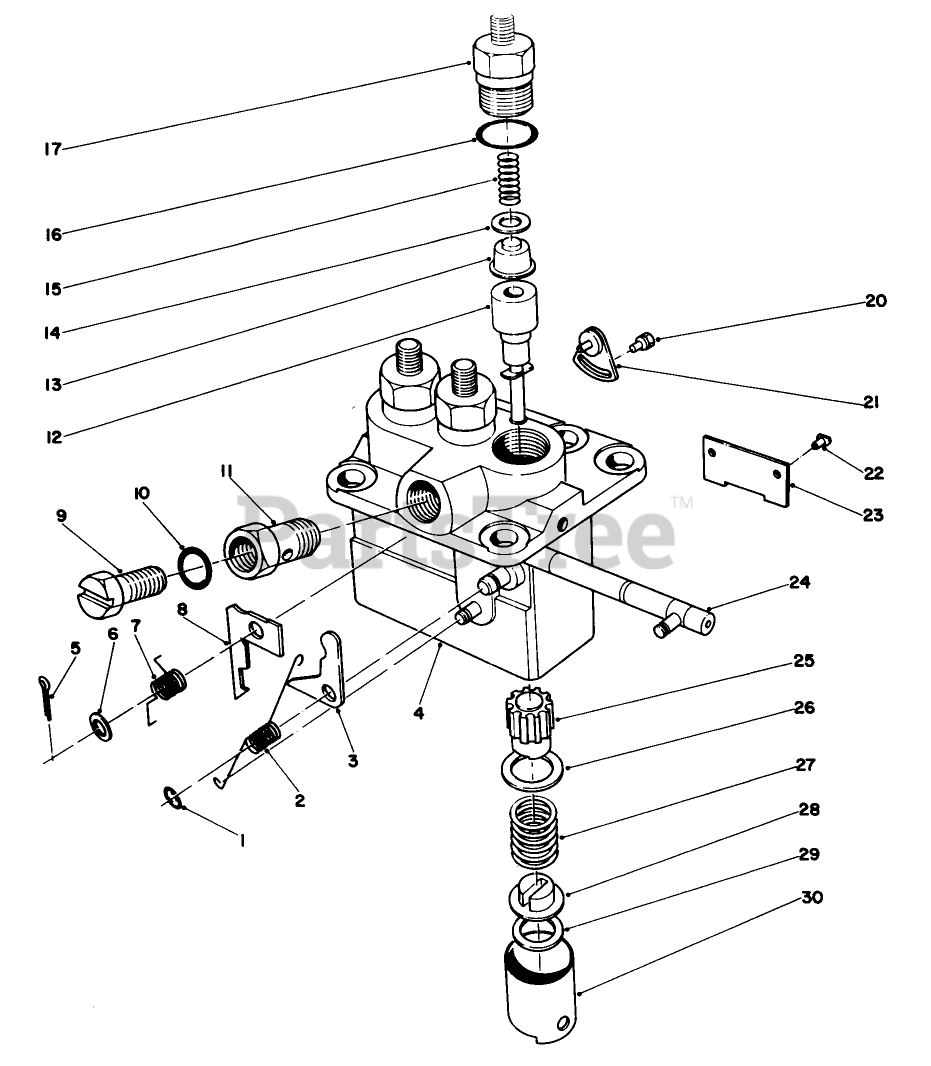

FUEL INJECTION PUMP ASSEMBLY NO. 42-8000 Parts Diagram

  • Title

1

Toro 43-3100

E-Ring

$

$

Not available

2

Toro 43-3110

SPRING MM 501256

$

$

Not available

3

Toro 43-2910

ANGLE PLT

$

$

Not available

Toro 43-2920

ANGLE PLT

Note: Not illustrated

$

$

Not available

Toro 43-2930

Plate, Ungleich Set L=16.7

Note: Not illustrated

$

$

Not available

Toro 43-2940

ANGLE PLATE

Note: Not illustrated

$

$

Not available

Toro 43-2950

ANGLE PLATE

Note: Not illustrated

$

$

Not available

4

Housing Sub Assembly Pump

$

$

Not available

5

Toro 42-8470

Pin, Split

$

$

Not available

6

Toro 42-9760

Washer, Plate

$

$

Not available

7

Toro 42-8460

Spring Retum

$

$

Not available

8

Toro 43-3000

ANGLE PLT

$

$

Not available

Toro 43-3010

ANGLE PLT

Note: Not illustrated

$

$

Not available

Toro 43-3020

SMOKE PLT

Note: Not illustrated

$

$

Not available

Toro 43-3030

SMOKE PLT

Note: Not illustrated

$

$

Not available

Toro 43-3040

SMOKE PLT

Note: Not illustrated

$

$

Not available

Toro 43-3050

SMOKE PLT

Note: Not illustrated

$

$

Not available

Toro 43-3060

SMOKE PLT

Note: Not illustrated

$

$

Not available

Toro 43-3070

SMOKE PLT

Note: Not illustrated

$

$

Not available

Toro 43-3080

SMOKE PLT MM 501274

Note: Not illustrated

$

$

Not available

Toro 43-3090

SMOKE PLT MM 501275

Note: Not illustrated

$

$

Not available

9

Toro 42-8370

Screw-Air Breather

$

$

Not available

10

Toro 42-9770

WASHER

$

$

Not available

11

Toro 42-8380

SCREW

$

$

Not available

12

Toro 42-8260

PUMP ELEMNT

$

$

Not available

13

Toro 42-8250

VALVE ASM

$

$

Not available

14

Toro 42-8240

Gasket
(Superseded to 93-3465)

$

$

Not available

15

Toro 42-8230

VALVE SPRNG
(Superseded to 93-3464)

$

$

Not available

16

Toro 42-8330

O-Ring
(Superseded to 93-3474)

$

$

Not available

17

Toro 42-8220

Holder-DeliveryValve
(Superseded to 93-3463)

$

$

Not available

20

Toro 43-3150

BOLT

$

$

Not available

21

Toro 42-8360

ADJ PLT ASM

$

$

Not available

22

Toro 42-8340

GUIDE PIN

$

$

Not available

23

Toro 42-8350

PLATE

$

$

Not available

24

Toro 42-8310

Asm-Rack, Control

$

$

Not available

25

Toro 42-8270

Sleeve-Plunger Control
(Superseded to 93-3468)

$

$

Not available

26

Toro 42-8280

SPRNG SEAT

$

$

Not available

27

Toro 42-8290

PLUNGER SPRG
(Superseded to 93-3470)

$

$

Not available

28

Toro 42-8320

SPRING SEAT
(Superseded to 93-3473)

$

$

Not available

29

Toro 42-8390

Plate, .6T

$

$

Not available

Toro 42-8400

Plate, .2T

Note: Not illustrated

$

$

Not available

Toro 42-8410

Plate, .3T

Note: Not illustrated

$

$

Not available

Toro 42-8420

Plate, .4T

Note: Not illustrated

$

$

Not available

Toro 42-8430

Plate, .5T

Note: Not illustrated

$

$

Not available

Toro 42-8440

PLT SHIM

Note: Not illustrated

$

$

Not available

Toro 42-8450

PLT SHIM

Note: Not illustrated

$

$

Not available

Toro 43-6240

PLT SHIM MM 501246

Note: Not illustrated

$

$

Not available

30

Toro 42-8300

Asm-Tappet

$

$

Not available
