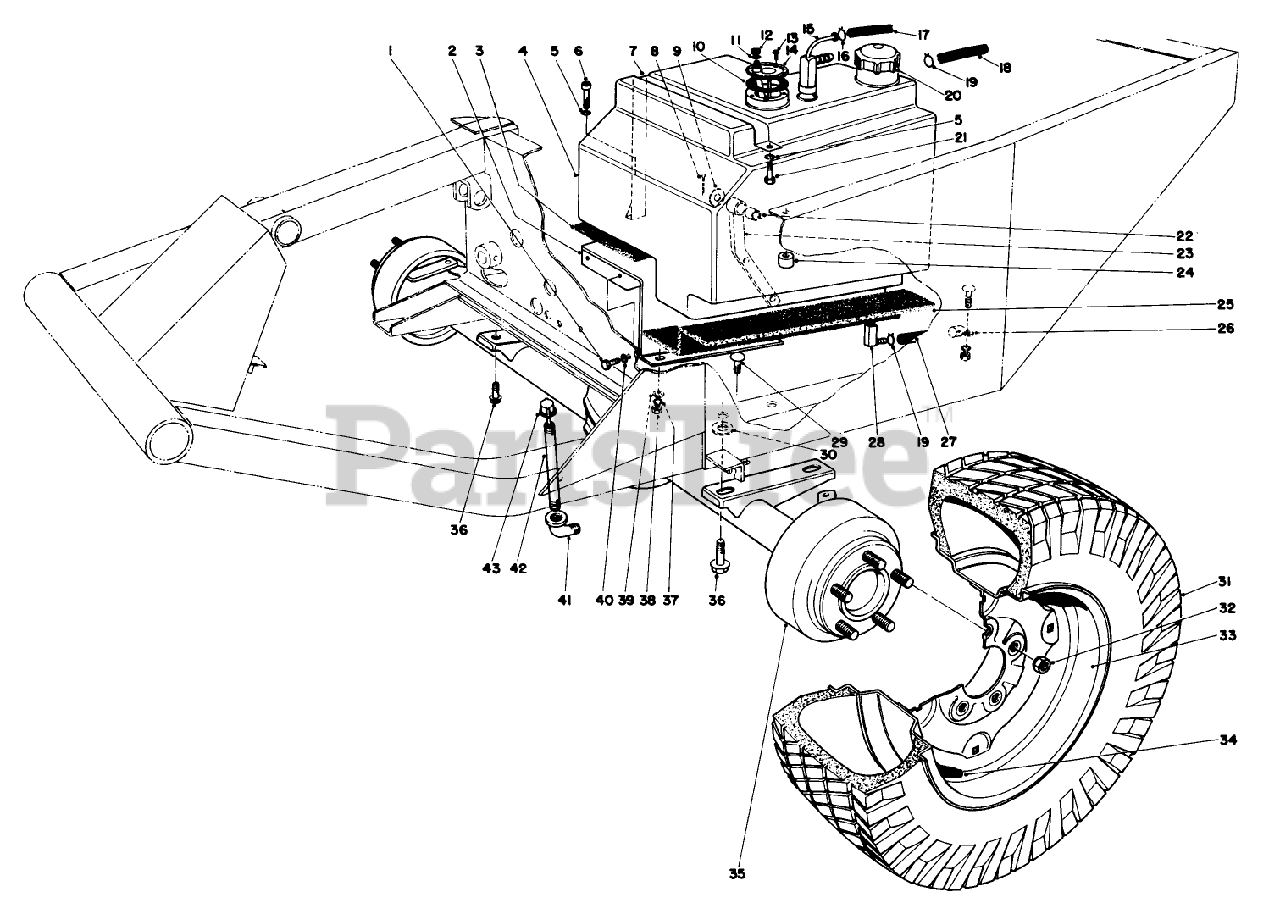

30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) FRONT AXLE & FUEL TANK ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

FRONT AXLE & FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 3234

Capscrew

$

$

Currently unavailable

2

Toro 23-2100

GAS TANK BASE WA

$

$

Not available

3

Toro 21-3600

FOAM-SUPPORT, TANK

$

$

Not available

4

Toro 43-4150

Fuel Tank (Incl. Ref. #15 & 28)
(Superseded to 115-4519)

$

$

Not available

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 37-9550

STRAP-TANK, FUEL

$

$

Not available

8

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 9

0

9

Toro 10-8110

WASHER-THRUST

$1.49

$

Usually ships in 3-6 days

0

10

Toro 18-2380

Gasket
(Superseded to 62-7650)

$4.49

$

Usually ships in 3-6 days

0

11

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

12

Toro 3219-14

NUT-HEX

$0.99

$

In Stock, only 1 left!

0

13

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.49

$

In Stock, Qty 10

0

14

Toro 24-0160

FUEL LEVEL SENDER

$

$

Not available

15

Toro 43-4160

FITTING-RETURN AND VENT

$

$

Not available

16

Toro 2412-79

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

17

Toro 43-4230

HOSE-RETURN
(Superseded to 110-5688)

$

$

Not available

18

Toro 43-5690

HOSE-VENT, GAS TANK
(Superseded to 110-3259)

$34.99

$

Usually ships in 3-6 days

0

19

Toro 2412-6

CLAMP-HOSE

$

$

Not available

20

Toro 37-9540

Gas Cap

$

$

Not available

21

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

23

Toro 23-2080

Steering Link (Incl. Ref. #22)

$

$

Not available

24

Toro 22-7810

SPACER

$18.99

$

Usually ships in 3-6 days

0

25

Toro 21-3610

FOAM-SUPPORT, TANK

$

$

Not available

26

Toro 2412-41

CLAMP-R

$6.49

$

Usually ships in 3-6 days

0

27

Toro 43-4210

Hose Fuel
(Superseded to 109-0308)

$11.99

$

Usually ships in 3-6 days

0

28

Toro 43-4190

FITTING ASM

$

$

Not available

29

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

30

Toro 28-5640

SPECIAL WASHER

$

$

Not available

31

Toro 231-101

TIRE

$204.99

$

Usually ships in 3-6 days

0

32

Toro 23-7270

NUT-LUG

$29.99

$

In Stock, Qty 13

0

33

Toro 217-105

Rim

$

$

Not available

34

Toro 232-31

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

35

Toro 43-7630

AXLE WA RO

$

$

Not available

36

Toro 3234-15

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

37

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

38

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

39

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

40

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

41

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

42

Toro 289-37

NIPPLE-PIPE

$

$

Not available

43

Toro 23-5180

DIPSTICK ASM

$

$

Not available
