30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

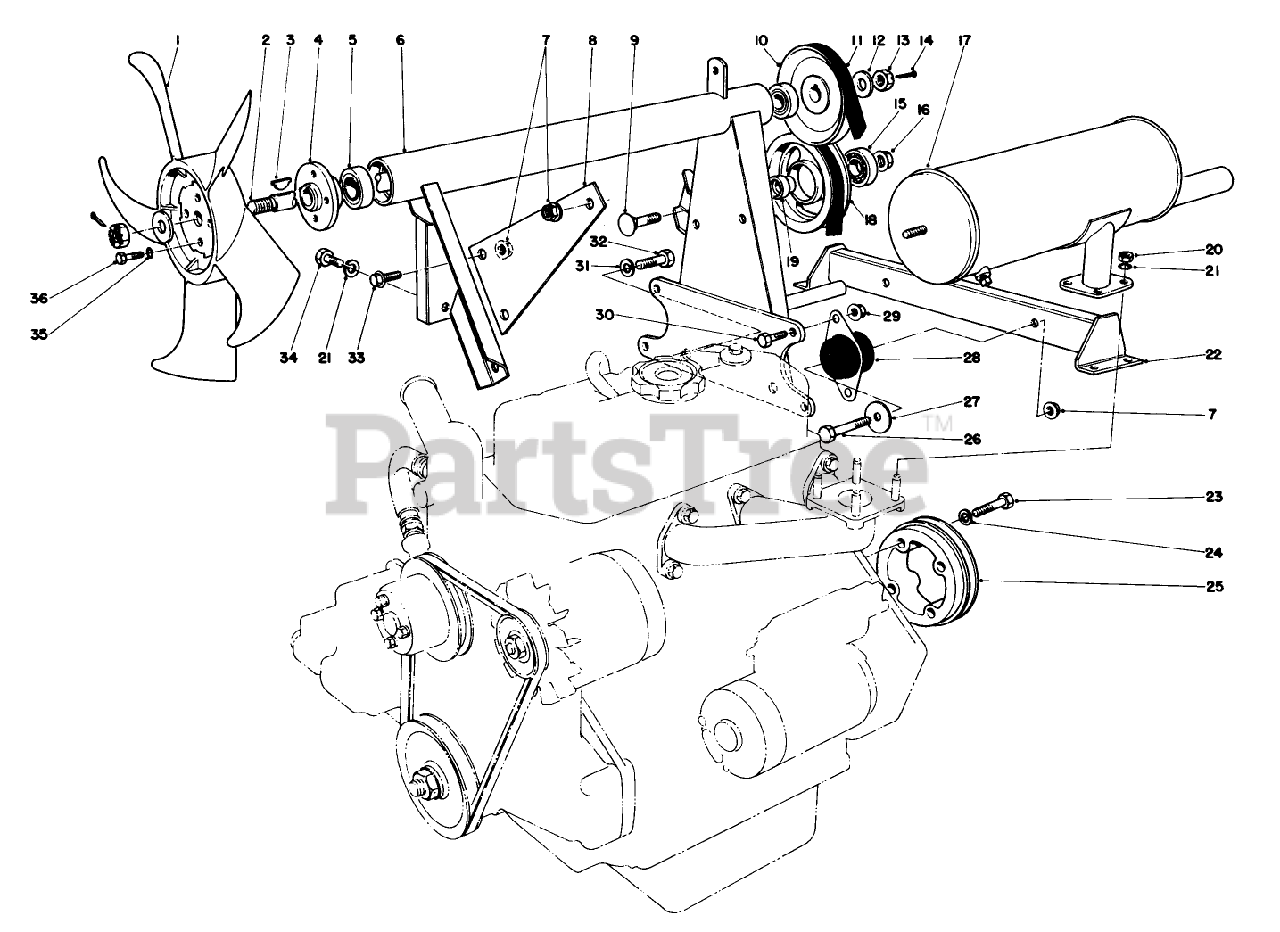

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro 43-1910

Fan
(Superseded to 43-1911)

$184.99

$

In Stock, only 1 left!

0

2

Toro 43-3690

SHAFT-FAN

$

$

Not available

3

Toro 3257-30

KEY-WOODRUFF

$5.99

$

In Stock, only 4 left!

0

4

Toro 43-3700

HUB - FAN

$

$

Not available

5

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

6

Toro 43-3590

FAN MOUNT WA BO

$

$

Not available

7

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

8

Toro 43-3870

Support Muffler
(Superseded to 43-3870-03)

$

$

Not available

9

Toro 3233-14

SCREW-CARR

$17.99

$

In Stock, Qty 20+

0

10

Toro 43-3880

Pulley

$

$

Not available

11

Toro 43-5910

FAN BELT

$28.99

$

In Stock, Qty 5

0

12

Toro 29-8910

WASHER

$0.99

$

In Stock, only 1 left!

0

13

Toro 32136-3

NUT-SHH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

15

Toro 31-0530

Bearing
(Superseded to 109842)

$31.99

$

In Stock, only 3 left!

0

16

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

17

Toro 43-3850

MUFFLER

$

$

Not available

18

Toro 33-5370

Idler Pulley (Incl. Ref. #15)

$

$

Not available

19

Toro 43-7690

SPACER IDLER PULLEY

$

$

Not available

20

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

21

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

22

Toro 43-5640

Engine Mount

$

$

Not available

23

Toro 43-3200

HEX HD CAPSCREW

$

$

Not available

24

Toro 42-9600

WASHER-LOCK, SPRING
(Superseded to 48-9590)

$0.99

$

Usually ships in 3-6 days

0

25

Toro 43-3530

Pulley Flywheel
(Superseded to 43-3530-03)

$

$

Not available

26

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

27

Toro 3-4685

WASHER-TOP THRUST

$

$

Not available

28

Toro 43-3560

Engine Mount Rubber
(Superseded to 44-5240)

$

$

Not available

29

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

31

Toro 43-5940

WASHER-LOCK, SPRING

$

$

Not available

32

Toro 43-3180

SCREW-HH

$

$

Not available

33

Toro 3234-12

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

34

Toro 42-9230

BOLT
(Superseded to 33114-016)

$0.99

$

In Stock, only 4 left!

0

35

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

36

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
