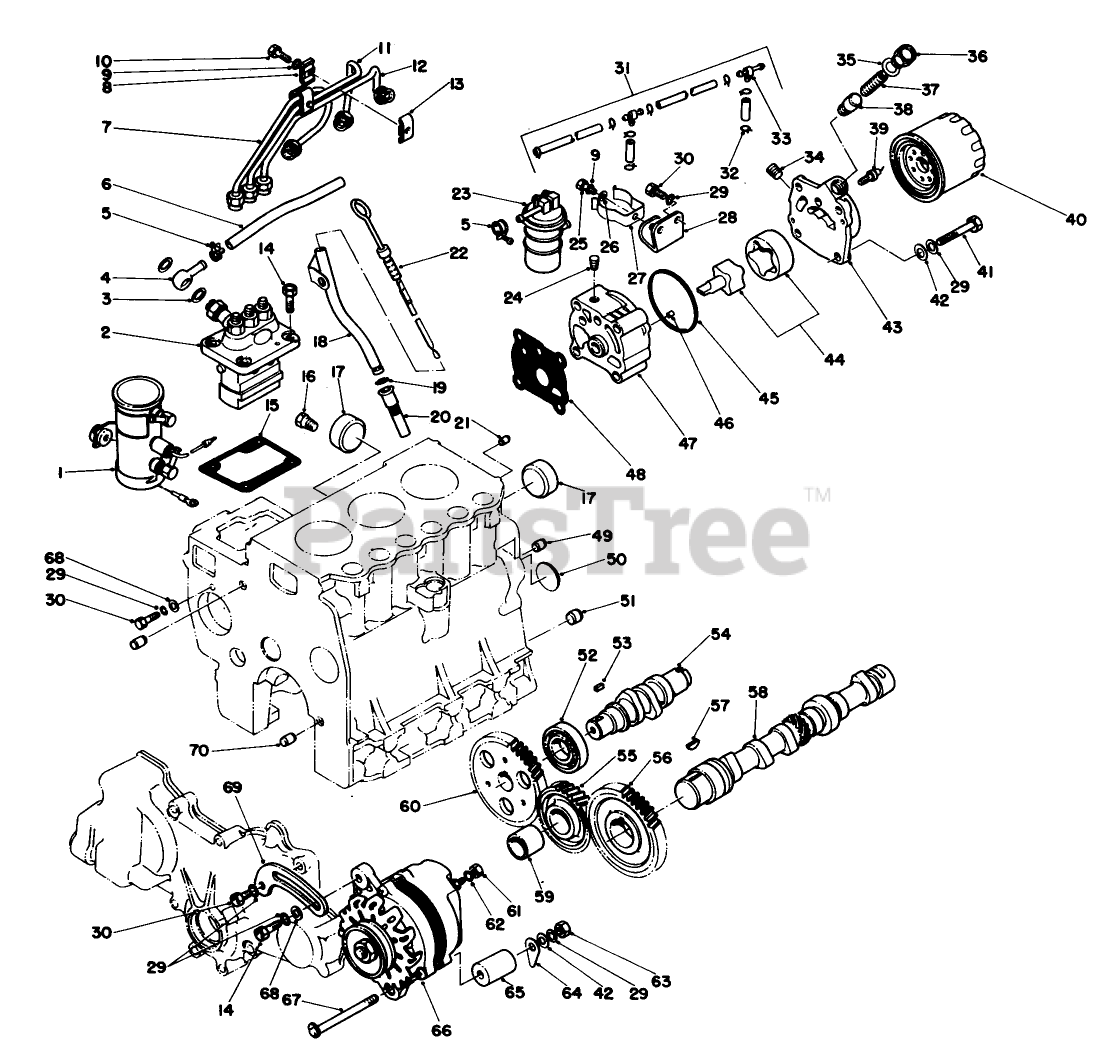

30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) ENGINE Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

ENGINE Parts Diagram

  • Title

1

Toro 43-1860

Pump Assembly, Fuel Electric
(Superseded to 99-5664)

$820.99

$

Usually ships in 3-6 days

0

Toro 43-2550

FILTER-PUMP

Note: Not illustrated

$31.99

$

In Stock, only 3 left!

0

Toro 43-2560

GASKET-PUMP

Note: Not illustrated

$26.99

$

Usually ships in 3-6 days

0

Toro 43-2570

GASKET-PUMP

Note: Not illustrated

$17.99

$

Usually ships in 3-6 days

0

Toro 43-2580

MAGNET-PUMP

Note: Not illustrated

$

$

Not available

2

Toro 42-8000

INJ PUMP

$

$

Not available

3

Toro 42-9830

SEAL WASHER

$

$

Not available

4

Toro 42-8100

COLLAR MM 304916

$

$

Not available

5

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

6

Toro 43-1830

FUEL HOSE

$

$

Not available

7

Toro 42-8130

1. PIPE ASM MM 409094

$

$

Not available

8

Toro 42-8160

Clamp
(Superseded to 56-0750)

$

$

Not available

9

Toro 43-5930

WASHER-LOCK, SPRING

$0.99

$

Usually ships in 3-6 days

0

10

Toro 43-2600

Screw
(Superseded to 33113-025)

$2.49

$

Usually ships in 3-6 days

0

11

Toro 42-8140

PIPE ASY.

$

$

Not available

12

Toro 42-8150

3. PIPE ASM

$

$

Not available

13

Toro 42-8170

Clamp
(Superseded to 56-0760)

$

$

Not available

14

Toro 43-0110

Screw-HH
(Superseded to 33114-020)

$0.99

$

In Stock, Qty 13

0

15

Toro 42-8010

ADJ SHIM MM 409040

$

$

Not available

Toro 42-8020

ADJ SHIM MM 409041

Note: Not illustrated

$

$

Not available

Toro 42-8030

ADJ SHIM MM 409042

Note: Not illustrated

$

$

Not available

Toro 42-8040

ADJ SHIM

Note: Not illustrated

$

$

Not available

Toro 42-8050

ADJ SHIM

Note: Not illustrated

$

$

Not available

Toro 42-8060

ADJ SHIM MM 409045

Note: Not illustrated

$

$

Not available

Toro 42-8070

ADJ SHIM

Note: Not illustrated

$

$

Not available

Toro 42-8080

ADJ SHIM

Note: Not illustrated

$

$

Not available

Toro 42-8090

ADJ SHIM MM 409048

Note: Not illustrated

$

$

Not available

16

Toro 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

17

Toro 42-7090

SEALING CAP

$

$

Not available

18

Toro 42-7050

Guide-Oil Level Gauge

$

$

Not available

19

Toro 43-2710

O-RING

$

$

Not available

20

Toro 43-2900

LEVEL RET
(Superseded to 72-6950)

$

$

Not available

21

Toro 42-7160

PIN

$

$

Not available

22

Toro 42-7270

OIL GAGE

$

$

Not available

23

Toro 43-1820

FUEL FILTER

$

$

Not available

24

Toro 42-7410

1/8 PLUG MS 661120

$

$

Not available

25

Toro 42-9490

SCREW - CAP

$

$

Not available

26

Toro 43-3230

Washer, Plain (6)

$

$

Not available

27

Toro 43-1840

FLTR CLAMP MM400880

$

$

Not available

28

Toro 43-1850

FILTER SUPT MM409121

$

$

Not available

29

Toro 42-9850

WASHER-LOCK, SPRING
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

30

Toro 42-9230

BOLT
(Superseded to 33114-016)

$0.99

$

In Stock, only 4 left!

0

30

Toro 42-7980

ADJ SCREW K 7231220

$

$

Not available

31

Toro 42-8180

FUEL RETURN ASM

$

$

Not available

32

Toro 2412-79

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

33

Toro 42-8190

JOINT MM 100088

$

$

Not available

34

Toro 42-7210

Plug
(Superseded to 67-2390)

$

$

Not available

35

Toro 42-8880

GASKET
(Superseded to 42-7290)

$

$

Not available

36

Toro 42-8870

Plug
(Superseded to 67-2520)

$

$

Not available

37

Toro 42-8930

SPRING MM 407142

$

$

Not available

38

Toro 42-8860

Plunger-Relief
(Superseded to 67-2500)

$

$

Not available

39

Toro 42-9060

OIL SWITCH
(Superseded to 92-1978)

$

$

Not available

40

Toro 42-9030

Filter-Oil

$

$

Not available

41

Toro 42-9480

BOLT

$

$

Not available

42

Toro 42-9660

WASHER

$

$

Not available

43

Toro 42-8920

PUMP COVER

$

$

Not available

44

Toro 42-8910

PUMP ROTOR

$

$

Not available

45

Toro 42-8940

O-RING

$

$

Not available

46

Toro 42-7030

Pin-Dowe
(Superseded to 56-0220)

$

$

Not available

47

Toro 42-8900

PUMP BODY MM 409201

$

$

Not available

48

Toro 42-8950

BODY GASKET MM 407124

$

$

Not available

49

Toro 42-7180

KNOCK BSHG MS 471104

$

$

Not available

50

Toro 42-7170

PLUG-40 MM MF665511

$

$

Not available

51

Toro 42-7200

KNOCK BSHG MS 471110

$

$

Not available

52

Toro 42-7820

Bearing Ball
(Superseded to 93-3409)

$

$

Not available

53

Toro 42-7840

SUNK KEY

$

$

Not available

54

Toro 42-7810

(SHAFT) MM 408964

$

$

Not available

55

Toro 42-7790

IDLER GEAR

$

$

Not available

56

Toro 42-7780

Gear-Camshaft

$

$

Not available

57

Toro 42-7730

5MMX19MM KEY

$

$

Not available

58

Toro 42-7770

CAMSHAFT MM 408906

$

$

Not available

59

Bushing, Idler Gear

Note: Not Available

$

$

Not available

60

Toro 42-7830

(GEAR) MM 406685

$

$

Not available

61

Toro 43-5970

M5 HEX NUT
(Superseded to 48-7880)

$0.99

$

Usually ships in 3-6 days

0

62

Toro 43-5920

WASHER-LOCK, SPRING

$0.99

$

Usually ships in 3-6 days

0

63

Toro 42-9580

NUT-HEX
(Superseded to 33014-00)

$0.99

$

In Stock, Qty 20+

0

64

Toro 43-0370

SHIM

$

$

Not available

65

Toro 43-0380

SPACER

$

$

Not available

66

Toro 43-0390

ALTERNATOR
(Superseded to 112-1359)

$653.99

$

Usually ships in 3-6 days

0

67

Toro 43-1900

BOLT MD 017625

$

$

Not available

68

Toro 42-9820

WASHER

$

$

Not available

69

Toro 43-0400

GEN BRACE MM 409463

$

$

Not available

70

Toro 42-7190

KNOCK BSHG MS 471105

$

$

Not available

Toro 42-8850

Oil Pump Assembly (Incl. Ref. #24, 34-38 & 4347)

Note: Not illustrated

$

$

Not available
