30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 001000001 - 001999999) (1981) ALTERNATOR ASSEMBLY NO. 43-0390 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

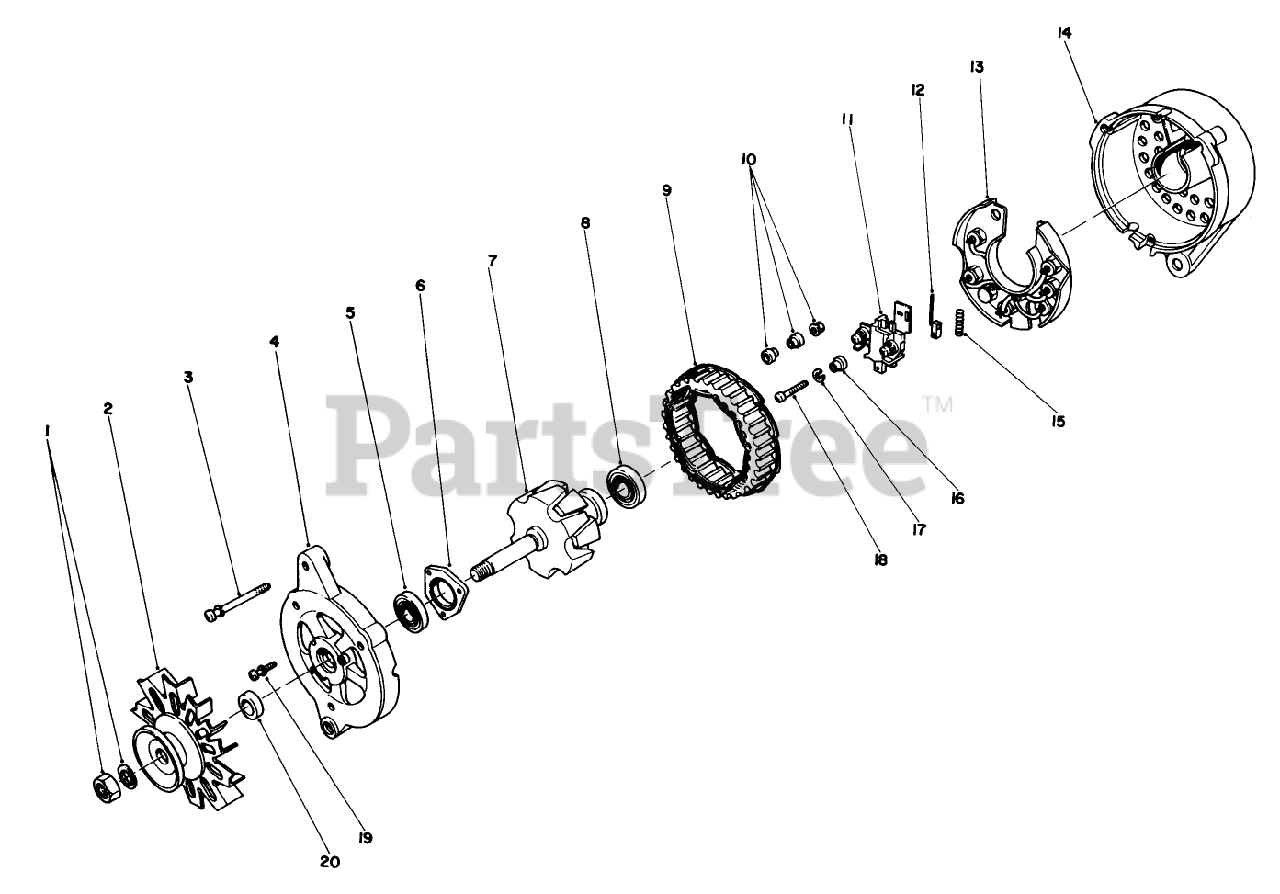

ALTERNATOR ASSEMBLY NO. 43-0390 Parts Diagram

  • Title

1

Toro 43-1920

NUT SET
(Superseded to 51-7850)

$

$

Not available

2

Toro 43-0420

Pulley Assembly (Incl. Ref. #20)

$

$

Not available

3

Toro 43-0120

SCREW - SET

$

$

Not available

4

Toro 43-0430

Bracket Assembly Front (Incl.Ref.#5-6 & 19)

$

$

Not available

5

Toro 43-0440

Bearing-Front
(Superseded to 70-3320)

$

$

Not available

6

Plate-Ball Bearing Retainer

$

$

Not available

7

Toro 43-0450

Rotor Assembly (Incl. Ref. #8)
(Superseded to 51-7910)

$

$

Not available

8

Toro 43-0460

Bearing Rear
(Superseded to 51-7920)

$

$

Not available

9

Toro 43-0470

STATOR

$

$

Not available

10

Toro 43-0080

NUT

$

$

Not available

11

Toro 43-0490

Holder Assembly Brush (Incl. Ref. #12 & 15)

$

$

Not available

12

Toro 43-0500

BRUSH

$

$

Not available

13

Toro 43-0520

RECTIFIER

$

$

Not available

14

Toro 43-0480

Bracket Assembly, Rear (Incl. Ref. #10-13 & 15-18)

$

$

Not available

15

Toro 43-0510

BRUSH SPRNG

$

$

Not available

16

Toro 43-2720

MOLD

$

$

Not available

17

Toro 43-5920

WASHER-LOCK, SPRING

$0.99

$

Usually ships in 3-6 days

0

18

Toro 43-1890

SCREW MF 350769

$

$

Not available

19

Toro 43-0130

Screw Set

$

$

Not available

20

Collar Shaft

$

$

Not available
