30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1980) STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

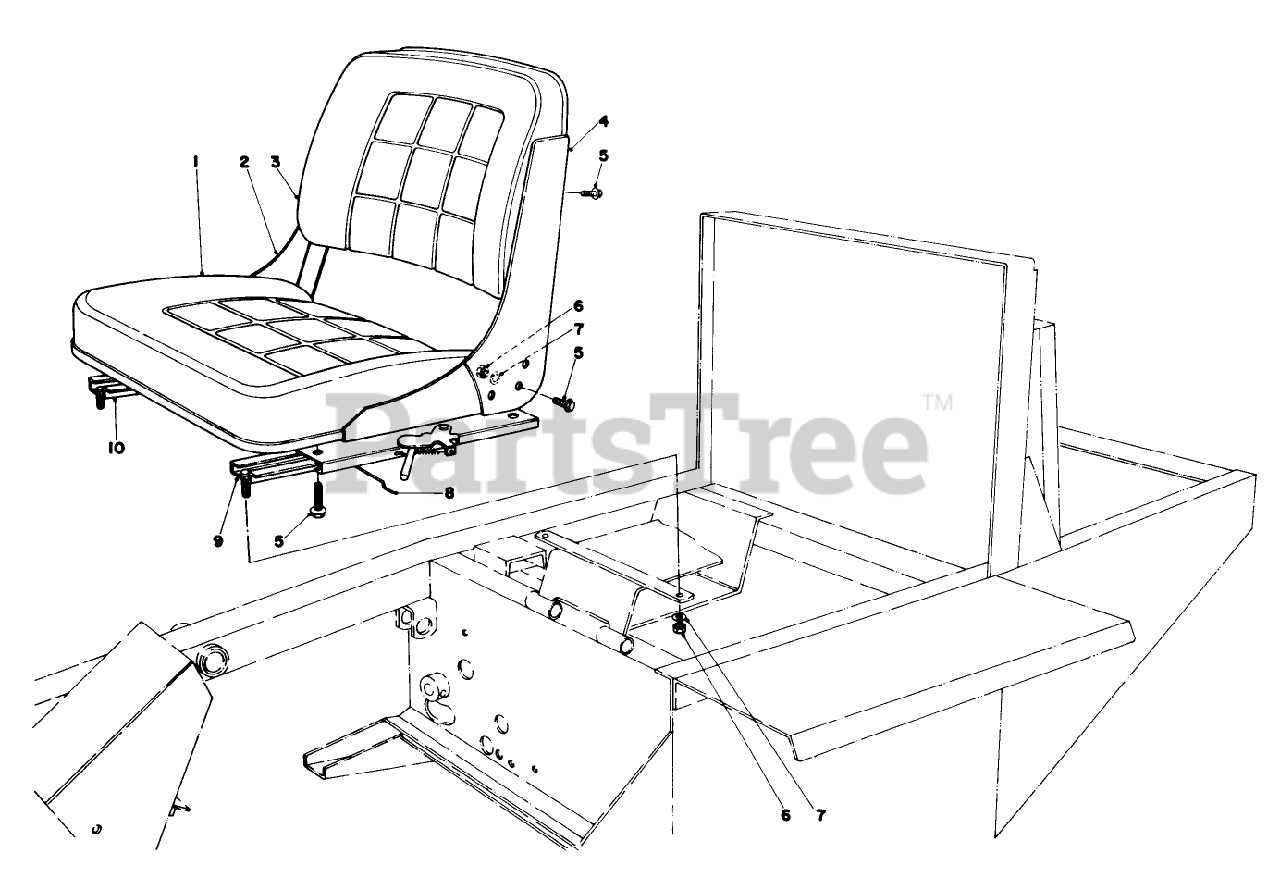

STANDARD SEAT KIT MODEL NO. 30785 Parts Diagram

  • Title
1

Toro 351-59

Seat Cushion
(Superseded to 104-4620)

$

$

Not available

2

Toro 351-64

RH RAIL

$

$

Not available

3

Toro 351-60

Backrest

$

$

Not available

4

Toro 351-65

LH RAIL

$

$

Not available

5

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

6

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 351-61

Connecting Rod
(Superseded to 52-4890)

$

$

Not available

9

Toro 351-63

Adjuster L.H.
(Superseded to 51-0790)

$137.99

$

Usually ships in 3-6 days

0

10

Toro 351-62

Adjuster R.H.
(Superseded to 52-4880)

$

$

Not available

Toro 21-4880

Seat Assembly (Incl. Ref. #1-10)
(Superseded to 104-4620)

Note: Not illustrated

$

$

Not available
