30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1980) FRONT AXLE AND GAS TANK ASSEMBLY Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

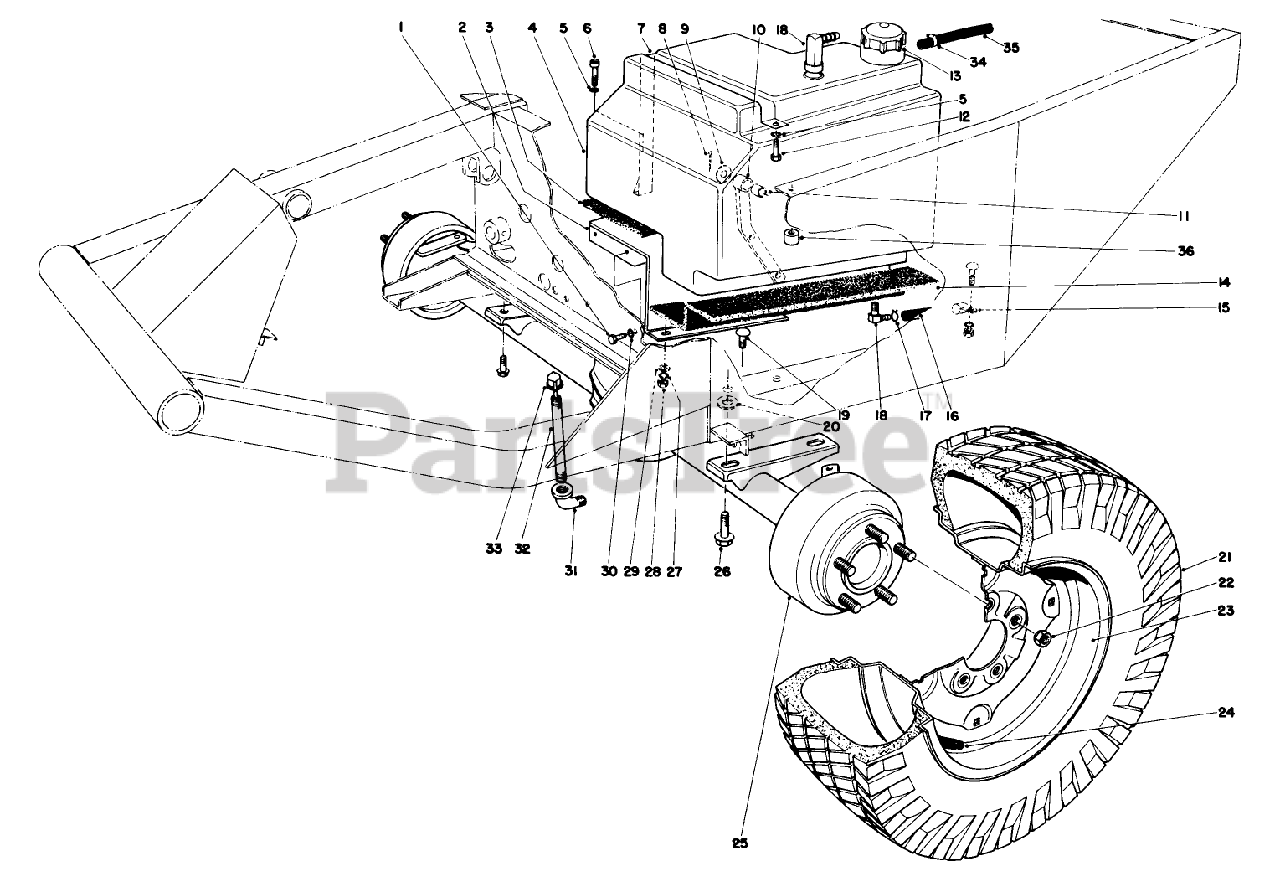

FRONT AXLE AND GAS TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

2

Toro 23-2100

GAS TANK BASE WA

$

$

Not available

3

Toro 21-3600

FOAM-SUPPORT, TANK

$

$

Not available

4

Toro 37-9530

Gas Tank (Incl. Ref. 18)
(Superseded to 43-9110)

$

$

Not available

5

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

6

Toro 3274-51

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 37-9550

STRAP-TANK, FUEL

$

$

Not available

8

Toro 3272-13

PIN-COTTER

$0.99

$

In Stock, Qty 9

0

9

Toro 10-8110

WASHER-THRUST

$1.49

$

In Stock, only 1 left!

0

10

Toro 23-2080

Steering Link (Incl. Ref. #11)

$

$

Not available

11

Toro 256-237

BUSHING

$15.99

$

In Stock, Qty 5

0

12

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 37-9540

Gas Cap

$

$

Not available

14

Toro 21-3610

FOAM-SUPPORT, TANK

$

$

Not available

15

Toro 2412-41

CLAMP-R

$6.99

$

Usually ships in 3-6 days

0

16

Toro 23-2140

HOSE-FUEL
(Superseded to 110-4100)

$29.99

$

Usually ships in 3-6 days

0

17

Toro 2412-6

CLAMP-HOSE

$

$

Not available

18

Toro 353-536

FITTING-ELBOW, 90 DEG

$

$

Not available

19

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

20

Toro 28-5640

SPECIAL WASHER

$

$

Not available

21

$204.99

$

Usually ships in 3-6 days

0

22

Toro 23-7270

NUT-LUG

$12.99

$

In Stock, Qty 13

0

23

$

$

Not available

24

Toro 232-31

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

25

Toro 33-4360

Axle
(Superseded to 43-7630)

$

$

Not available

26

Toro 3234-15

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

31

Toro 2811-9

FITTING-ELBOW-90

$18.99

$

Usually ships in 3-6 days

0

32

Toro 289-37

NIPPLE-PIPE

$

$

Not available

33

Toro 23-5180

DIPSTICK ASM

$

$

Not available

34

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

35

Toro 37-9560

HOSE-FUEL
(Superseded to 108-3282)

$45.99

$

Usually ships in 3-6 days

0

36

Toro 22-7810

SPACER

$19.99

$

Usually ships in 3-6 days

0

Toro 231-90

TUBE

Note: Not illustrated

$

$

Not available
