30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1980) DELUXE SEAT KIT MODEL NO. 30786 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

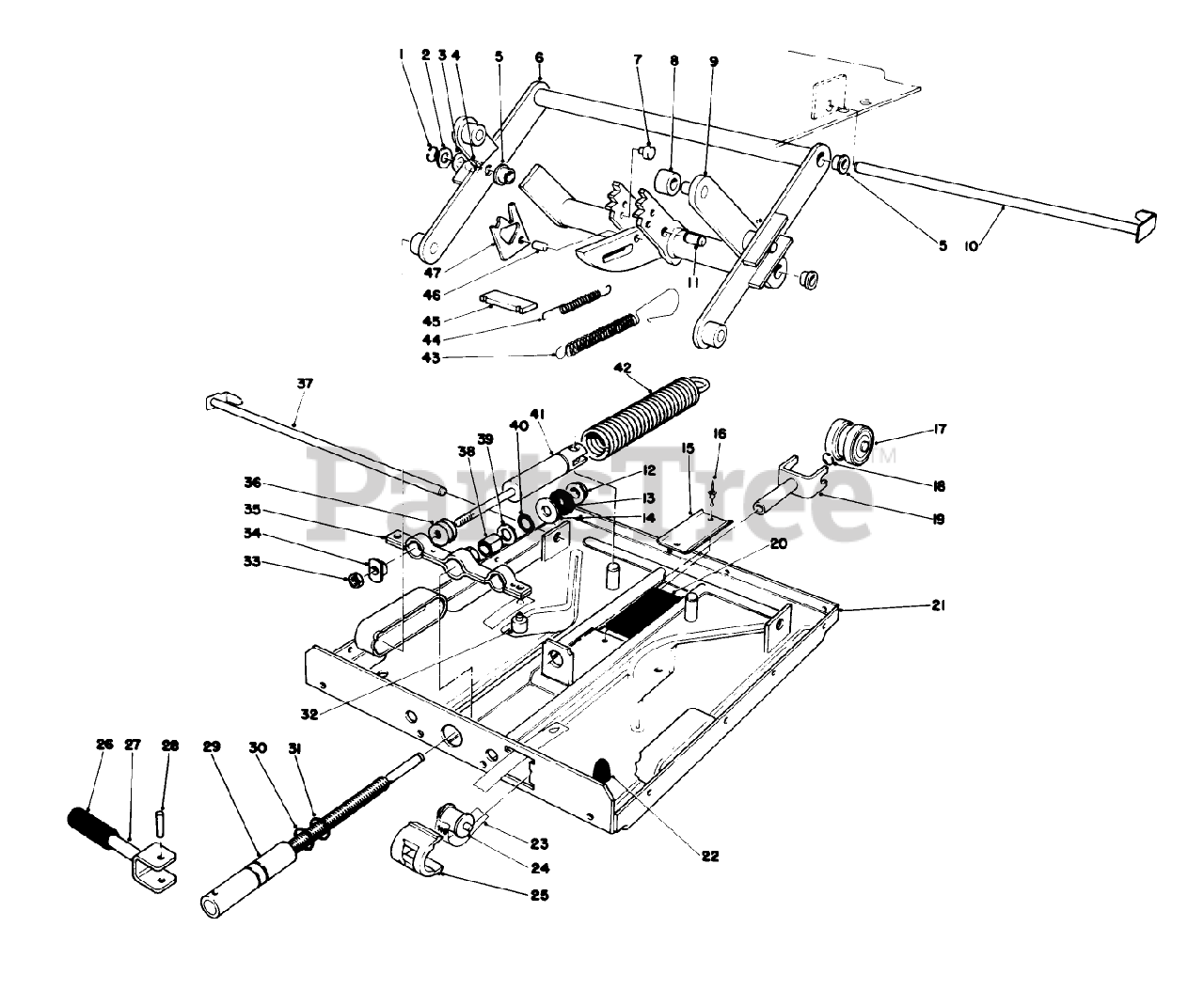

DELUXE SEAT KIT MODEL NO. 30786 Parts Diagram

  • Title
1

Toro 40-3950

WASHER

$3.49

$

Usually ships in 3-6 days

0

2

Toro 39-9500

WASHER

$

$

Not available

3

Toro 40-3960

WASHER

$

$

Not available

4

Toro 40-3970

BRG BSHG

$

$

Not available

5

Toro 40-3980

BEARING

$

$

Not available

6

Toro 40-3990

Swing Arm-Outside
(Superseded to 40-4020)

$

$

Not available

7

$

$

Not available

8

Toro 40-4010

ROLLER

$13.99

$

Usually ships in 3-6 days

0

9

Toro 40-4020

Frame Bag

$

$

Not available

10

$

$

Not available

11

Toro 40-4040

Grooved Locking Pin 08X16CM

$

$

Not available

12

Toro 40-4050

SLEEVE

$

$

Not available

13

Toro 40-4060

WASHER-RUBBER

$

$

Not available

14

Toro 40-4070

WASHER
(Superseded to 1-613235)

$1.99

$

In Stock, Qty 5

0

15

Toro 40-4080

U-TRACK

$19.99

$

Usually ships in 3-6 days

0

16

Toro 40-4090

RIVET

$

$

Not available

17

Toro 40-4100

TRIBLE BRG

$

$

Not available

18

Toro 39-9310

RET RING

$

$

Not available

19

$

$

Not available

20

Toro 40-4120

RUBBER

$

$

Not available

21

Toro 404130

Lower Suspension Plate-Complete (Incl. Ref. #15-16 & 20)

$

$

Currently unavailable

22

Toro 39-9520

BUMPER

$

$

Not available

23

Toro 40-4140

WEIGHT INDICATOR BAND

$

$

Not available

24

Toro 40-4150

ROLLER

$

$

Not available

25

Toro 40-4160

GUIDE-SLEEVE

$

$

Not available

26

Toro 40-4170

HANDLE

$

$

Not available

27

Toro 40-4180

TOGGLE

$49.99

$

Usually ships in 3-6 days

0

28

Toro 40-4190

GROOVED PIN

$

$

Not available

29

$

$

Not available

30

Toro 40-4210

RUBBER RING 14MM BLK

$

$

Not available

31

Toro 40-4220

RUBBER RING 14MM RED

$

$

Not available

32

$

$

Not available

33

$

$

Not available

34

Toro 40-4250

WELD NUT

$

$

Not available

35

Toro 40-4260

Spring Bracket

$

$

Not available

36

Toro 40-4270

THREADED ROD

$

$

Not available

37

$

$

Not available

38

Toro 40-4290

SLEEVE

$

$

Not available

39

Toro 40-4300

WASHER

$

$

Not available

40

Toro 40-4310

BEARING-THRUST, NEEDLE

$

$

Not available

41

Toro 40-4320

SHOCK ABSORBER

$207.99

$

Usually ships in 3-6 days

0

42

Toro 40-4330

COIL SPRING

$

$

Not available

43

Toro 40-4340

SPRING-COIL

$

$

Not available

44

Toro 40-4350

SPRING-COIL

$

$

Not available

45

Toro 40-4360

PLATE

$

$

Not available

46

$

$

Not available

47

Toro 40-4380

BRACKET-RELEASE

$

$

Not available
