30721 - Toro 72" Side-Discharge Rear-Engine Riding Mower (SN: 000000001 - 000999999) (1980) CUTTING UNIT MODEL 30710 Parts Diagram

72" Side-Discharge Rear-Engine Riding Mower

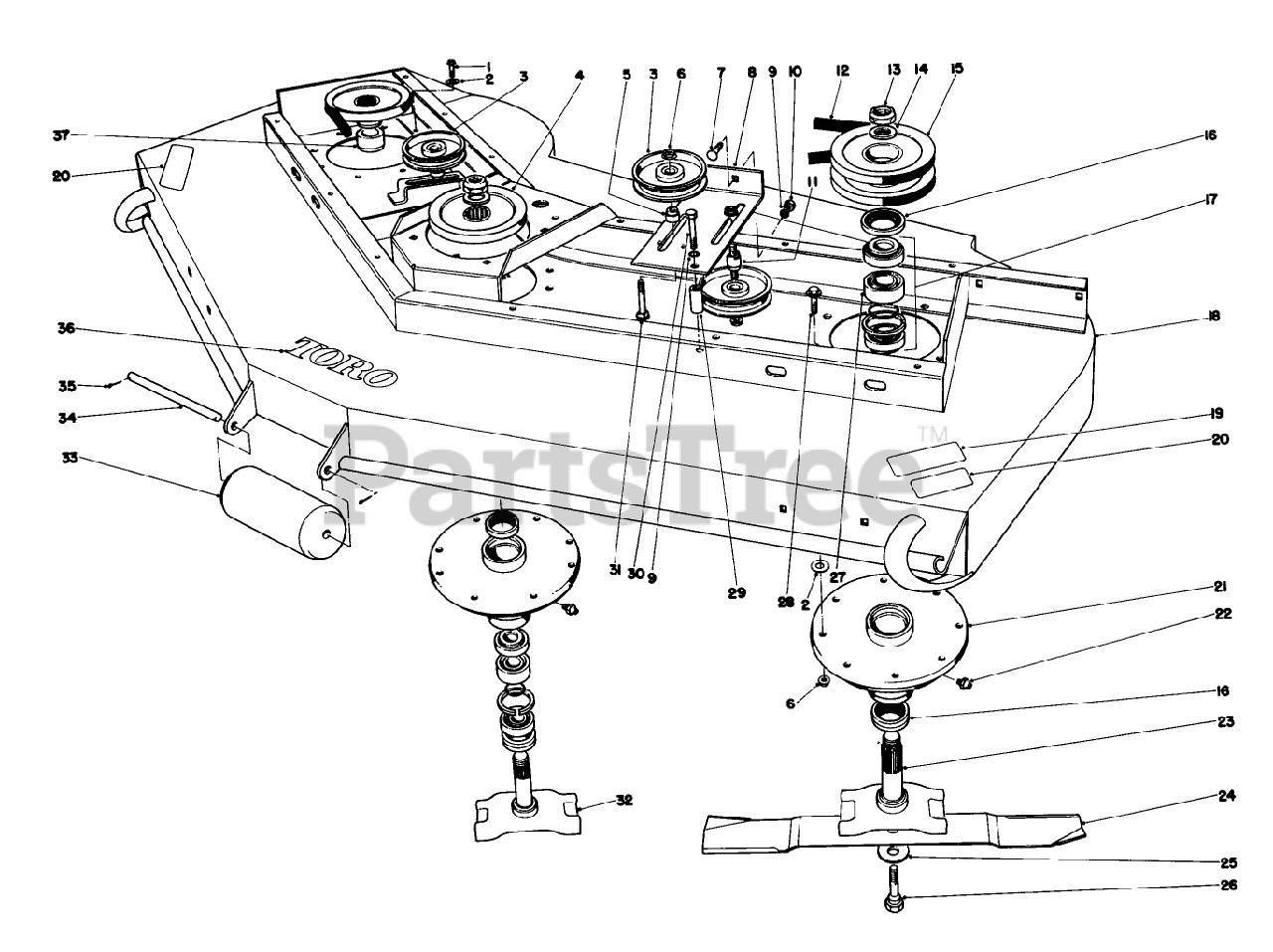

CUTTING UNIT MODEL 30710 Parts Diagram

  • Title
1

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 26-1840

PULLEY-IDLER

$

$

Not available

4

Toro 26-1760

PULLEY AND HUB ASM

$384.99

$

In Stock, only 1 left!

0

5

Toro 26-1860

SPACER-IDLER PULLEY

$

$

Not available

6

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

7

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

8

Toro 26-1870

Idler Mount L.H.
(Superseded to 26-1870-03)

$

$

Not available

9

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

10

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

11

Toro 26-1850

STUD-IDLER

$

$

Not available

12

Toro 21-0890

V-BELT

$40.99

$

In Stock, Qty 20+

0

13

Toro 3296-49

NUT-LOCK, NI

$14.99

$

In Stock, only 2 left!

0

14

Toro 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 20+

0

15

Toro 26-9100

PULLEY-L.H. W.A.
(Superseded to 84-2060)

$

$

Not available

16

Toro 253-138

SEAL-OIL

$10.99

$

In Stock, Qty 20+

0

17

Toro 26-1830

BEARING KIT (MATCHED SET)
(Superseded to 110-8297)

Note: Does not incl. Ref. Num 27

$56.99

$

In Stock, only 4 left!

0

18

Toro 38-9200

Cutter Deck

$

$

Not available

19

Toro 26-7960

Decal-Caution
(Superseded to 68-7280)

$13.99

$

Usually ships in 3-6 days

0

20

Toro 26-7970

DECAL-CAUTION, BLADE

$

$

Not available

21

Toro 26-1630

Spindle Housing
(Superseded to 84-2020)

$316.99

$

Usually ships in 3-6 days

0

22

Toro 302-52

FITTING-GREASE

$6.99

$

In Stock, Qty 20+

0

23

Toro 26-1690

OUTER SPINDLE WA

$

$

Not available

24

Toro 29-5530

BLADE-STANDARD, LH, 25IN
(Superseded to 29-5530-03)

$71.99

$

In Stock, Qty 8

0

25

Toro 26-1990

WASHER-BELLEVILLE

$20.99

$

Usually ships in 3-6 days

0

26

Toro 26-1820

CAPSCREW

$

$

Not available

27

Toro 26-1730

Spacer Matched Set
(Superseded to 49-8320)

$

$

Not available

28

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

29

Toro 26-1880

SPACER-IDLER MOUNT

$

$

Not available

30

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 3231-29

SCREW-CARR

$7.99

$

In Stock, only 2 left!

0

32

Toro 26-1680

Spindle Ctr.
(Superseded to 84-5370)

$

$

Not available

33

Toro 31-0750

ROLLER-FRONT

$

$

Not available

34

Toro 32-9610

ROLLER SHAFT

$

$

Not available

35

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

36

Toro 20-4690

TORO LOGO DECAL

$7.99

$

Usually ships in 3-6 days

0

37

Toro 26-1790

Spacer R.H.Spindle
(Superseded to 84-2090)

$

$

Not available
