30718 (118) - Toro ProLine Rear-Engine Riding Mower (SN: 049000001 - 049999999) (1994) OIL DIP STICK, FILTER & PUMP Parts Diagram

ProLine Rear-Engine Riding Mower

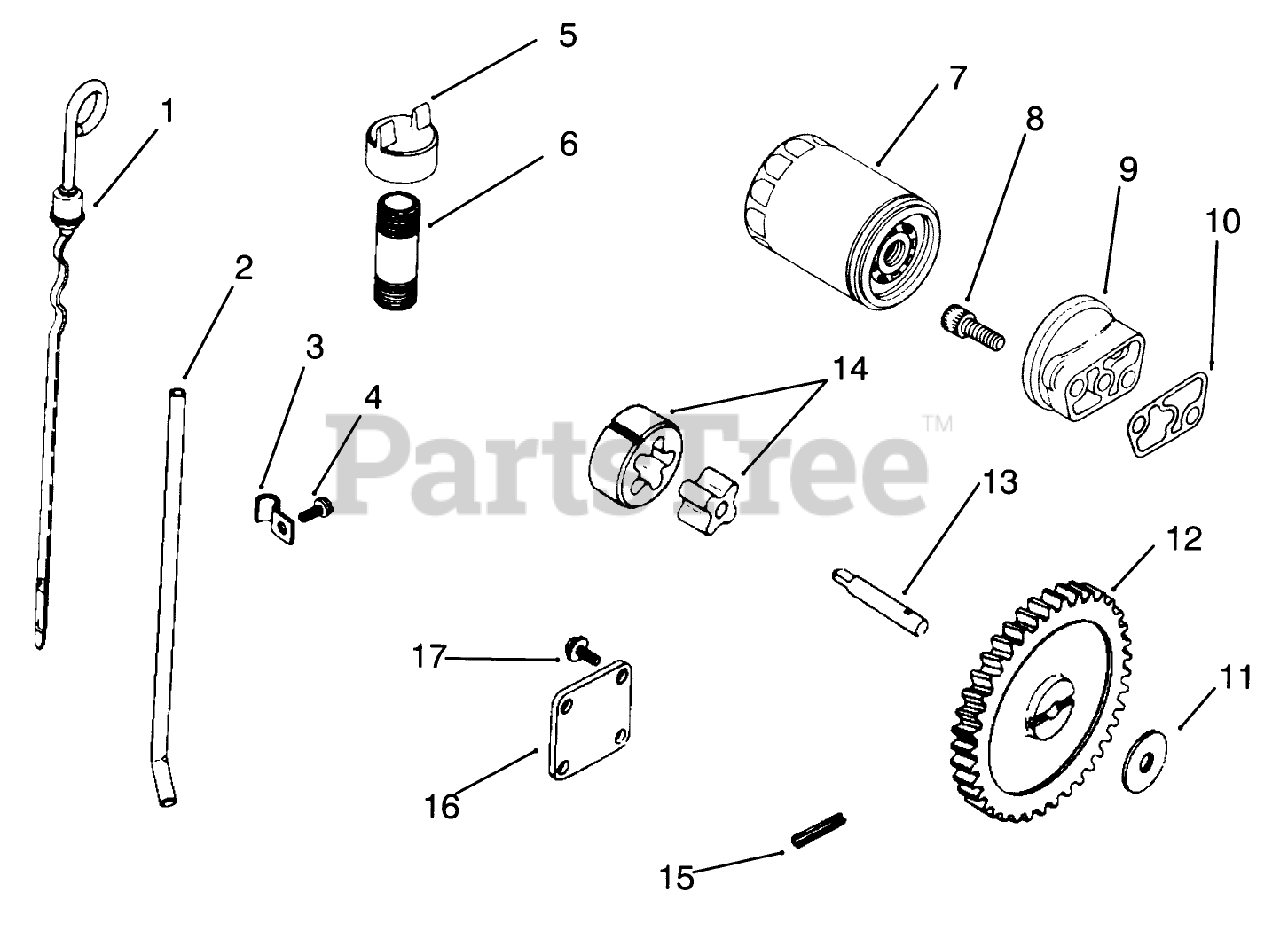

OIL DIP STICK, FILTER & PUMP Parts Diagram

  • Title

1

Toro 52_038_04

Distick-Blade

$

$

Currently unavailable

2

Toro 52_123_09

Tube-Oil Level

$

$

Currently unavailable

3

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0

4

Toro 52_154_01

Clip-Tube

$

$

Currently unavailable

5

Toro 52_173_01

Cap-Pipe

$

$

Currently unavailable

6

Toro 46_136_02

Pipe-Oil Fill

$

$

Currently unavailable

7

Toro 52_050_02

Filler-Oil

$

$

Currently unavailable

8

Kohler X-55-15

Screw-H.C.
(Superseded to X-55-15-S)

$3.49

$

In Stock, only 1 left!

0

9

Toro 52_181_03

Adapter

$

$

Currently unavailable

10

Toro 52_041_16

Gasket-Cover

$

$

Currently unavailable

11

Toro 52_422_01

Spacer-Shim

$

$

Currently unavailable

12

Toro 52_043_05

Gear-0il Pump

$

$

Currently unavailable

13

Toro 52_144_05

Shaft-0il Pump

$

$

Currently unavailable

14

Toro 52_393_09

Rotor Set

$

$

Currently unavailable

15

Kohler X-280-25

Pin-Roll
(Superseded to X-280-25-S)

$3.49

$

In Stock, Qty 9

0

16

Toro 52_096_03

Cover-Oil Pump

$

$

Currently unavailable

17

Kohler X-67-64

Screw
(Superseded to 25 086 101-S)

$2.99

$

Usually ships in 2-5 days

0
